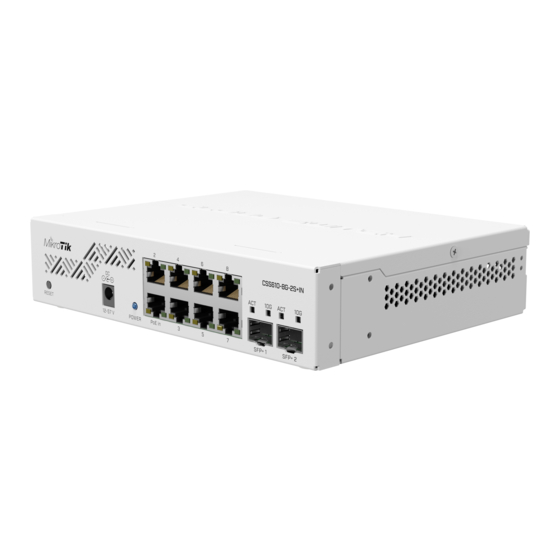

MikroTik CSS610-8G-2S+IN Manual

CSS610-8G-2S+IN
CSS610-8G-2S+IN

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity or hot environments.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.

Quick start

Download the latest SwitchOS software version
Connect your computer to any of the ethernet ports;
Connect the device to the power source;
Set an IP address of your computer to 192.168.88.3;
Open your Web browser, the default management IP address is 192.168.88.1 / 192.168.88.2, with the username
Upload file with the web browser to the Upgrade tab, the device will reboot after an upgrade;
Set up your password to secure the device.

Powering

The device accepts power from the power jack or from the first Ethernet port (Passive PoE).
Direct-input power jack (5.5mm outside and 2mm inside, female, pin positive plug) accepts 12-57V DC.
The first Ethernet port accepts passive PoE input 12-57V DC.
Power consumption 5 W, with attachments 11 W.
Connecting to a PoE Adapter:
1. Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter.
2. Connect an Ethernet cable from your local network (LAN) to the PoE adapter.
3. Connect the power cord to the adapter, and then plug the power cord into a power outlet.

Configuration

SwOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to the
possibilities: https://mt.lv/help.
For recovery purposes, it is possible to boot the device for reinstallation, see
First-time configuration https://wiki.mikrotik.com/wiki/SwOS/CSS610;
from https://mikrotik.com/download;
section Buttons and
admin
Jumpers.
and no password;
