MikroTik RB260 Series Manual

RB260-series
RB260GS
RB260GSP

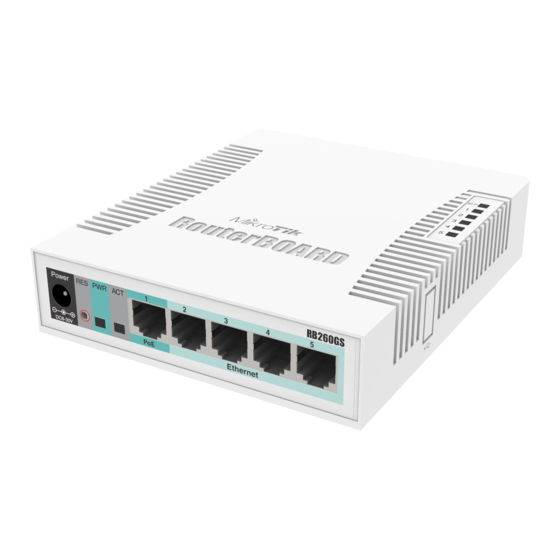

The CSS106 is a network switch with five Ethernet ports and one SFP, it is powered by the SwOS operating system. It is already configured, with all ports
switched together. We recommend you to set up a password to secure your device. CSS106-1G-4P-1S has PoE output capabilities on four of it's Ethernet
ports.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity or hot environments.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.

Powering

The power consumption of this device under maximum load is up to 11 W. The device accepts powering in the following ways:
Direct-input power jack (5.5mm outside and 2mm inside, female, pin positive plug) accepts 8-30 V DC.
The combo ethernet port accepts passive Power over Ethernet 8-30 V DC, PoE injector is not included.

First use

https://wiki.mikrotik.com/wiki/SwOS/RB250_RB260#Connecting_to_the_switch
Connect your Ethernet cables to the five ethernet ports and one available SFP port. Ports are switched, so any order is possible.
Power the device either from the power jack (11-30 V accepted, a power adapter is bundled with the device) or from the first port over Passive
PoE (11-30 V).
For accessing the SwOS configuration interface, set your LAN computer IP configuration to static IP 192.168.88.2.
The default IP address is 192.168.88.1, the SwOS interface is available via the web browser, the username is admin and there is no password.
Set a strong password for the device.
