CSS326-24G-2S+

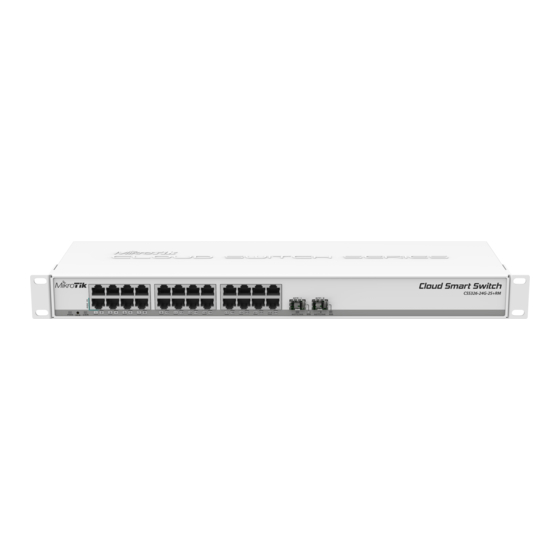

The CSS326 is a network switch with 24 gigabit ethernet ports and two SFP+ cages (modules
are not included). The device is ready to use as a switch. To access its full functionality, you
need to connect to the SwOS web interface.

Powering

The board accepts powering in the following ways:
• direct-input power jack (5.5mm outside and 2mm inside, female, pin positive plug) accepts
10-30V DC
• The ethernet port accepts passive Power over Ethernet 8-30V DC, PoE injector is not
included

The power consumption of this device under maximum load is up to 19W

Configuration

The CSS is set up as a switch, with 192.168.88.1 as the management IP accessible from any
port. You can connect to the SwOS configuration interface by opening
using admin as the login name. There is no password by default.

Reset button

Hold this button during boot time and release after LED light stops flashing to reset SwOS
configuration and load primary backup firmware.
Access to primary firmware allows reinstallation of the main firmware.

Operating System Support

The CSS runs SwOS, which is the only supported OS for this device. Information about SwOS:

http://wiki.mikrotik.com/wiki/SwOS

CSS326 SwOS features

Non-blocking Layer 2 Switching Capacity
16K Host table
IEEE 802.1Q VLAN
Supports up to 4K simultaneous VLANs
Port isolation
Broadcast Storm Control
Port Mirroring of ingress/egress traffic
MikroTik neighor discovery
SNMP v1
Web-based GUI
See
www.routerboard.com
for more information. Contact
support@mikrotik.com
http://192.168.88.1
12 Jun 2017
