U Tility M Odes - Disaster Area Designs DMC.micro PRO Manual

u M
tIlIty
The DMC.micro features two Utility modes, each of which allows you to send up to three
different user-definable MIDI messages to your devices.

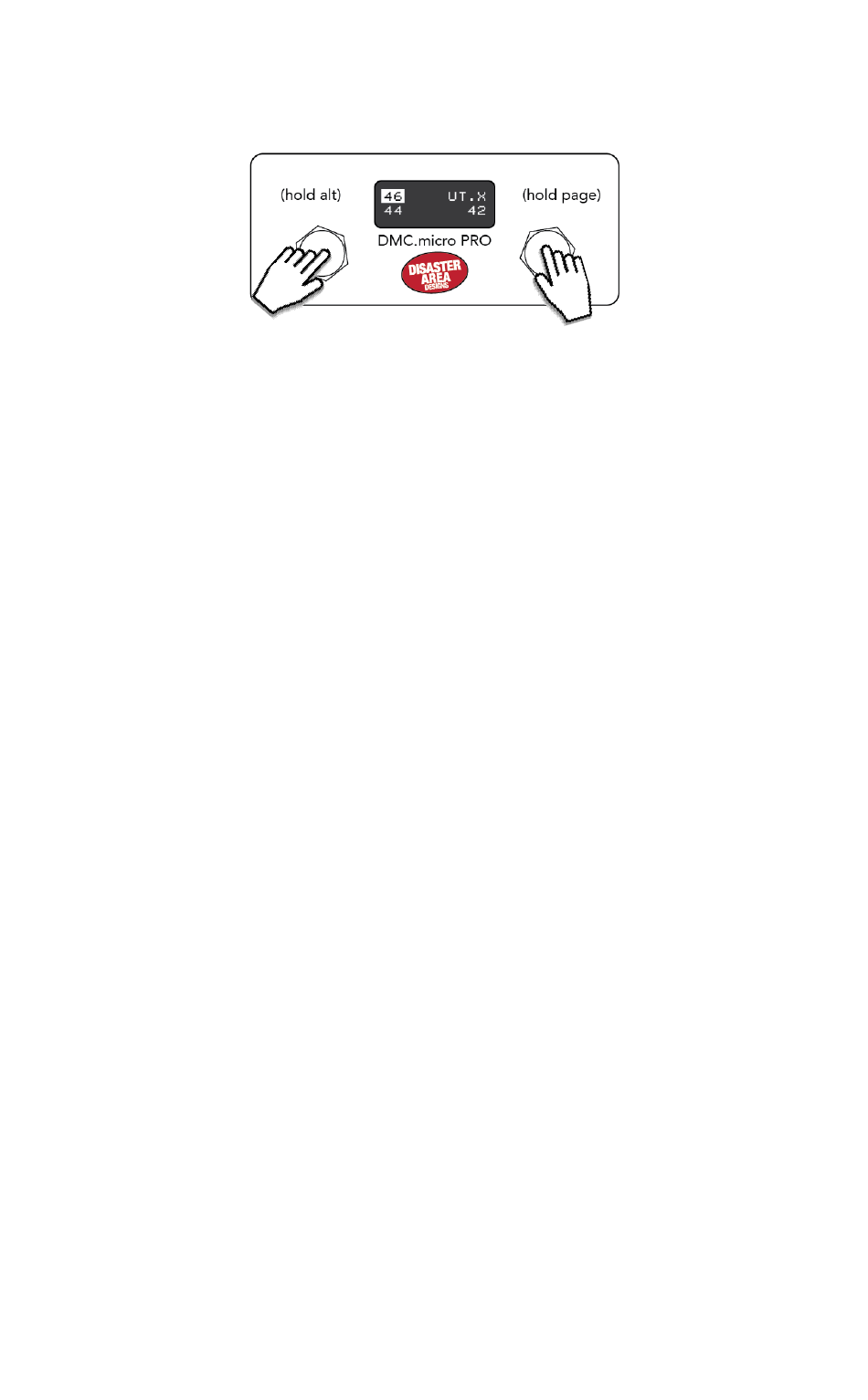

TAP TO SEND LEFT MESSAGE
HOLD TO SEND ALT MESSAGE
To use Utility Mode X, enter the DMC setup and configure UTIL MOD X (UTL.1) to ON.
To use Utility Mode Y, configure UTIL MOD Y (UTL.2) to UTIL Y /
Although only a single button is shown in the example below, each action in Utility Mode is
configured in the same way.
UT X. L TYP / U Lt
that the left button will send.
ONE:
is pressed.
TOGG:
button is pressed.
NOTE:
pressed.
b UP:
b DN:
TAP:
enabled, this will control the clock tempo.
UT.X L NUM / U Ln
controller number or MIDI note number that the left button will send. Ranges from 0-127.
UT.X L LOW / U LL
for use with the Toggle message type.
UT.X L HI / U LH
for use with the Toggle message type, or the value sent for the ONE shot message type. Also
sets the velocity of the MIDI note sent for the NOTE message type.
UT.X L CH / U LC
channels that the left button will use to send messages. The channel is indicated with the
letters A, B, C. If you wish to send a message to the A, B, or C device its letter must be shown.
If a zero is shown in a particular location, that channel will not receive the messages from this
button. For example, U LC = AB0 means that the left button in Utility Mode will send MIDI
messages to Devices A and B but not to Device C.
As mentioned earlier, the configurations for the ALT / A and RIGHT / R button messages are
identical to the above, as well as the UTIL MODE Y settings.
If one or more of your UTIL actions are set to TOGG, the display will highlight them when they
are at the HI value and display them normally when at LO. The LED4 version will light up the
associated LED (blue for L and R, red for A.)
20
odes
Utility Mode, Left Button Message Type. This sets the type of message
MIDI CC message will be sent with the same value each time the button
MIDI CC message will be sent with two alternating values when the
MIDI Note on and note off message will be sent when the button is
Bank up message will be sent for Strymon devices.
Bank down message will be sent for Strymon devices.
Tap tempo CC message will be sent. If the MIDI clock modes are
Utility Mode, Left Button Message Number. This sets the MIDI CC
Utility Mode, Left Button Low Value. This sets the MIDI CC lower number
Utility Mode, Left Button High Value. This sets the MIDI CC upper value
Utility Mode, Left Button Channel. This sets the MIDI channel or
TAP TO SEND RIGHT MESSAGE
HOLD FOR NEXT PAGE
UTL.2.
