Disaster Area Designs DPC-4EZ Operation Manual

Disaster A rea D esigns
www.disasterareadesigns.com
DPC-­‐4EZ O peration M anual
Firmware r evision 1 .01
April 2 014
Thank y ou f or p urchasing t he D isaster A rea D PC-­‐4EZ P edal C ontroller. T he D PC-­‐4EZ i s a
compact e ffects s witching s ystem w ith b uilt-­‐in M IDI c ontrol. I t i s d esigned t o s witch u p t o
four s eparate e ffects l oops a nd t o c hange p resets o n a n e xternal M IDI d evice s imultaneously,
to s implify t one c hanges i n a l ive o r s tudio s etting.

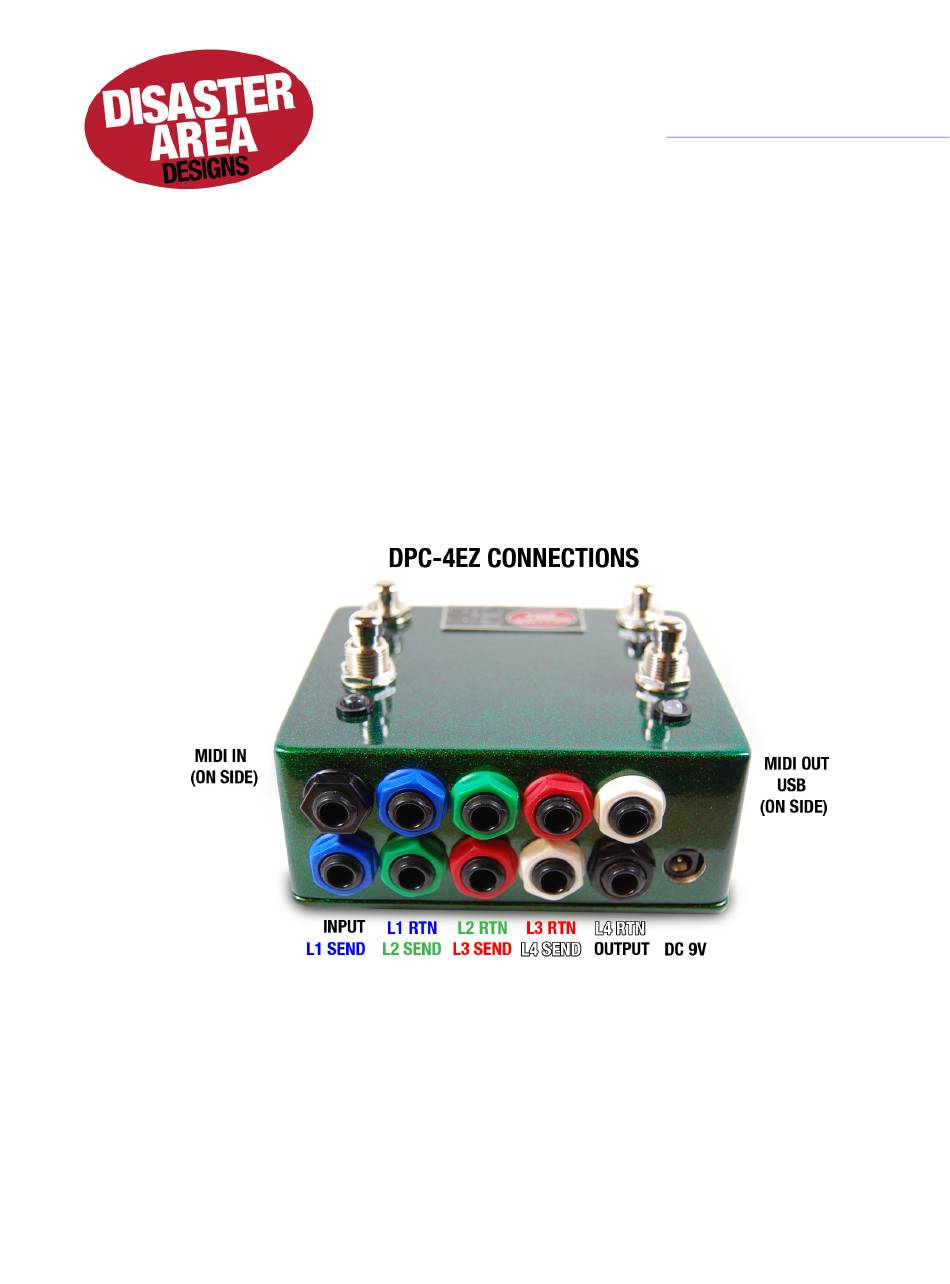

CONNECTIONS:
Connect y our g uitar u sing a 1 /4" s hielded i nstrument c able t o t he i nput. T he D PC-­‐
4EZ i nput i s u nbuffered, f or m aximum c ompatibility w ith f uzz, w ah, " vibe," a nd o ther
impedance-­‐sensitive p edals. T he D PC-­‐4EZ w ill w ork c orrectly i f f ed b y a b uffer o r a n
unbuffered s ignal.
The n ext f our p airs o f 1 /4" j acks a re t he s ends a nd r eturns f or t he f our e ffects l oops.
The t op j acks a re t he r eturn c hannels, a nd t he l ower j acks a re t he s ends. I n n ormal
use, c onnect a c able f rom e ach s end t o t he i nput o f y our p edals, a nd c onnect a s econd
