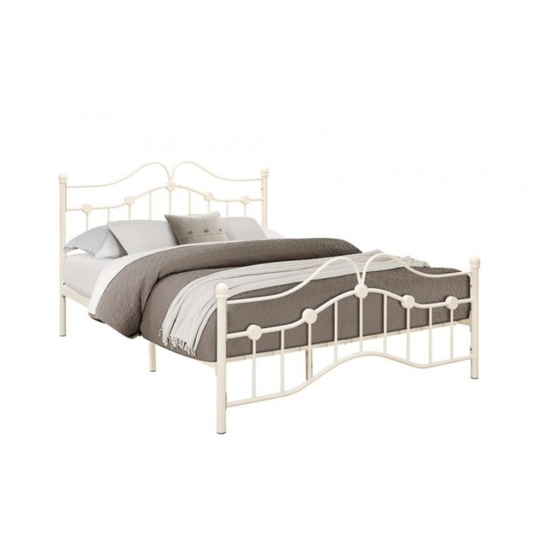

Birlea CANTERBURY 4' Assembly Instructions

Birlea CANTERBURY 4' Assembly Instructions

Advertisement

Quick Links

Birlea
Suppliers of Inspiration
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR
CANTERBURY 4' BED FRAME.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY :
DO NOT jump on this bed frame.
DO NOT use this bed frame if any parts are missing, damaged or worn.
DO NOT use this bed frame unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
WARNING: If this bed is placed on a non-carpeted floor you must place some protection under all
legs to stop the bed frame from moving. If this is not adhered to there is no guarantee if the bed
frame collapses.
CARE & MAINTENANCE:
Assemble in the room of use.
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the bed frame as this will damage the legs.
Always lift the bed with two people to reposition.
Keep any sharp objects away from the frame.
ASSEMBLY INSTRUCTIONS
CANTERBURY 4'
www.birlea.com
Vendor: S000053
Page 1 of 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the CANTERBURY 4' and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Birlea CANTERBURY 4'

  • Page 1 Birlea Vendor: S000053 Suppliers of Inspiration ASSEMBLY INSTRUCTIONS CANTERBURY 4' IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR CANTERBURY 4' BED FRAME. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY : DO NOT jump on this bed frame.
  • Page 2 Vendor: S000053 Part List Hardware List (found in box 1) Part Description Part Description Headpost M6 x 16mm JCBC Screw Headend M6 x 60mm JCBC Screw Footpost M6 Nut Footend M6 Cap Nut Side Support M6 x 50mm JCBC Screw Centre Support M6 x 40mm JCBC Screw Side Frame...
  • Page 3 Vendor: S000053 Step 2 : Fix the Side Support (5) to the Headpost (1) and Footpost (3) using hardware part (A). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Small Allen Key Do not fully tighten the screw yet until Step 7 Step 3 : Join together the Side Support (5) with the Centre Support (6) using hardware parts (B) and (D).
  • Page 4 Vendor: S000053 Step 5 : Fix the Centre Frame (8) to the Side Support (5) using hardware part (A). The 'ARROW' sticker need to face up. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Sticker 'ARROW' Small Allen Key Do not fully tighten the screw yet until Step 7...
  • Page 5 If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on instagram.
