Birlea CROXLEY BED Assembly Instructions Manual

Birlea CROXLEY BED Assembly Instructions Manual

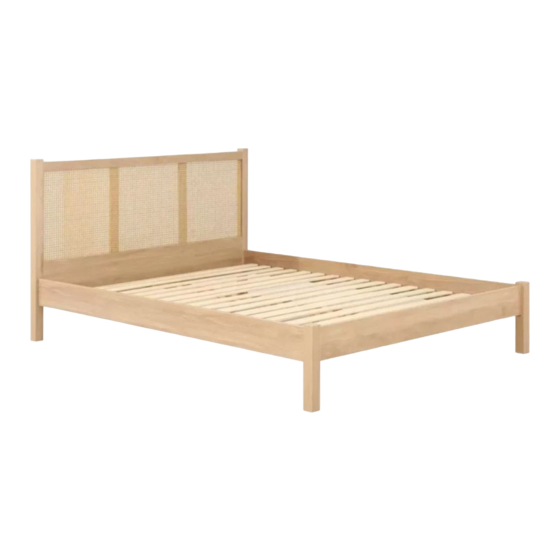

135cm rattan bed

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the CROXLEY BED and is the answer not in the manual?

Questions and answers

Summary of Contents for Birlea CROXLEY BED

  • Page 2 135CM CROXLEY RATTAN BED 135CM CROXLEY RATTAN BED. Page 2 of 6...
  • Page 3: Parts List

    Hardware List Parts List Part Description Part Description Headboard 80mm Bolt Footboard Bracket Left siderail 14mm Screw Right siderail 70mm Screw Centre Rail 25mm Screw Support Leg 30mm Dowl Slats 1 sets Allen Key **You will need a screwdriver for assembly. Page 3 of 6...
  • Page 4 STEP 1 Assembly the headboard(1),footboad(2),left siderail(3) and right siderail(4) by hardware A,F. DO NOT use any power tools as this may damadge the frame and will invalidate any claim. STEP 2 Attach hardware B by hardware C on headboard(1) and footboard(2). DO NOT use any power tools as this may damadge the frame and will invalidate any claim.
  • Page 5 STEP 3 Assembly the centre rail(5) with support leg(6) by hardware D DO NOT use any power tools as this may damadge the frame and will invalidate any claim. STEP 4 Attach centre rail(5) in to bracket B,and screw with hardware C. DO NOT use any power tools as this may damadge the frame and will invalidate any claim.
  • Page 6 STEP 3 Attach the bed slats(7) with bed frame by hardware E(the connect hole were pre-drilled) DO NOT use any power tools as this may damadge the frame and will invalidate any claim. Ex48 Page 6 of 6...
