Erone SEL128R433-NN Installation Manual

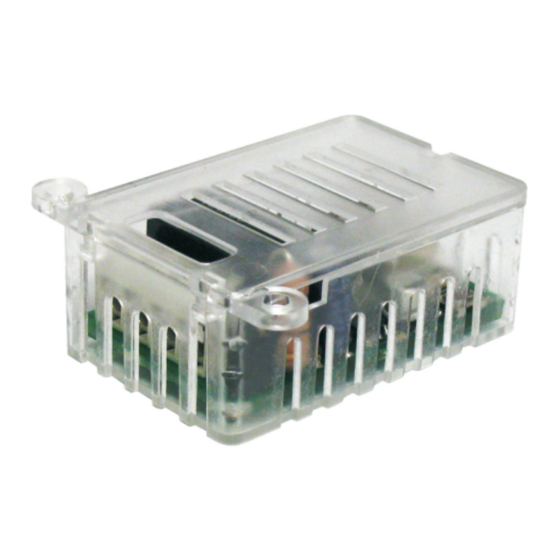

ERONE 1 RELAY NANO RECEIVER 128 BIT
INSTALLATION MANUAL
SEL128R433-NN
Thank you for choosing this product.
You are recommended to read carefully this manual before
installing the product.

1 - DESCRIPTION

1A - Introduction

The receiver type SEL128R433-NN is , designed to control
automatic closing systems and anti-burglar systems, thanks to its
very high security coding system.
The operating frequency is among the European harmonised
frequencies; the product fully complies with the EMC European
Regulations (CE).
The code sent by the transmitter changes at every activation,
avoiding any scanning and copying risk.
A special algorithm allows to keep synchronized transmitter and
receiver.
The receiver has 1 output relay ( with NO contacts, and can be
connected to many types of mechanics ( gate, garage door, rolling
shutters, awnings, anti-burglar appliances, lighting, etc.).
All the receivers of the range can store into the EEPROM a serial
number, a manufacturer key and a synchronism algorithm of more
transmitters.
The programming can be done in self-learning mode by means of
one button.
The housing protection allows indoor installations.
The appliance full complies with the European Directive
2014/53/UE «Red» and the Standard and FCC Part 15.
38,7
3
Dimensions
50

2 - TECHNICAL SPECIFICATIONS

Receiver type
Carrier frequency
Demodulation
Local Oscillator
Input sensitivity
Local oscillator spurious emissions
Input load:
Power supply:
Max applicable power
Current consumption : at rest
with relay excited
Relay number
Operating modes
Release delay
Contacts
Memory capacity
TX security code
Max code combination number
Operating temperature
Housing protection
Overall dimensions (mm)

3 - LAYOUT AND CONNECTIONS

ANTENNA
BUZZER
RELAY
K1
-
+
- The equipment must be powered from a device that
provides a safety extra low voltage (SELV) type LPS
!
( Low Power Source);
- There must be a suitable disconnecting device to the
current drawn by the receiver (90 mA max @ 12Vdc).
J1 = CLOSED
32
MEMO without P1
ENABLED ( 5.2)
4 - OPERATING MODES & DELAY
The relay can operate in PULSE or DELAYED mode. The default
pulse is 1 sec. In delayed mode the release of the relay occurs after
a programmable delay ( 1 - 30 Sec. ) see next paragraph.
Fig. 1
During the delay time the reception of a further signal from the
transmitter releases the relay.
Superheterodyne
433,92 MHz
GFSK
VCO / PLL
-115 dBm
< -57 dBm
50 Ohm
12 / 24 Vac/dc
24VA
9 mA ( @12V or 24V)
26 mA @ 12V
31 mA @ 24V
1
Pulse / Delayed
1 - 30 Sec.
C-NO
248 user codes
Rolling code
128
2
-20°/+70°C
IP2X
50 x 32 x 20
J1
see
Memo selection
NO C
Power Input
12 - 24 Vac/dc
self-adjusting
MEMO SELECTION
J1 = OPEN
MEMO without P1
DISABLED (5.2)
P1
