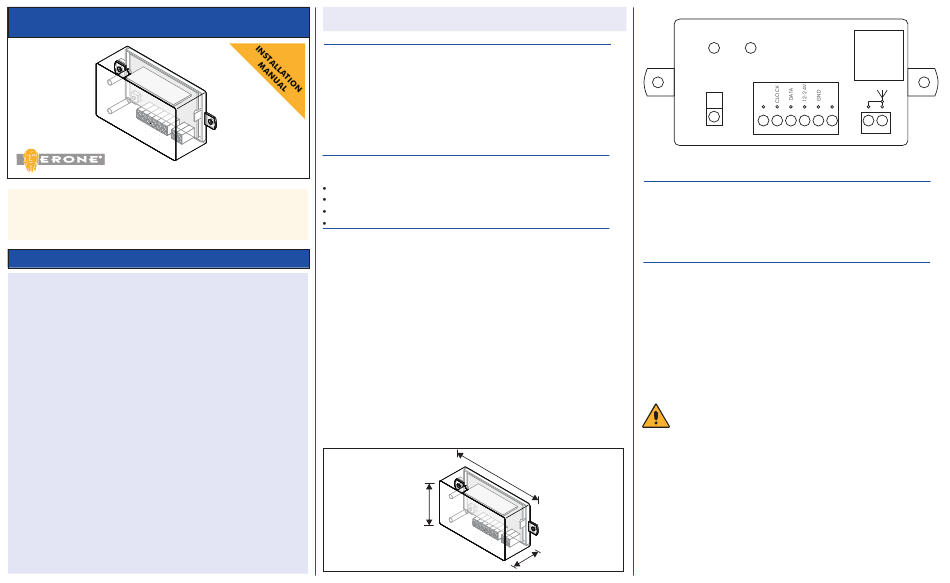

Erone SELCD4A Installation Manual

CLOCK-DATA RECEIVER 433 AM
T H E S M A R T L I V I N G
Thank you for choosing a this product. You are recommended to
read this manual carefully before installing the product.
CONTENTS
1- RECEIVER INTRODUCTION
1A Description
1B Usable transmitters
1C Technical specifications
1D Receiver layout
1E Terminal board connections
2- FACTORY SETTINGS
3- TRANSMITTER MEMORIZATION
4- DEFAULT RECEIVER CONFIGURATION
5- FACILITY CODE CHECK DISABLING
6- MEMORY ERASURE
7- SIGNAL FORMAT
8- FRAME ARCHITECTURE
1- RECEIVER INTRODUCTION
1A - Description

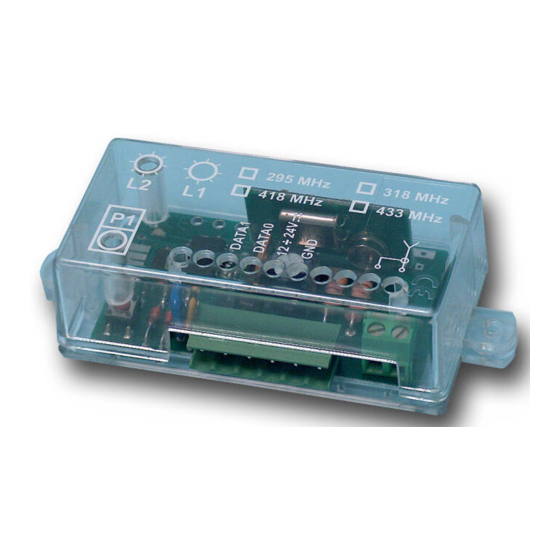

The receiver Erone type SELCD4A is a superheterodyne receiver operating at
the frequency 433.92 MHz in AM/ASK modulation. It is composed by a main
board and a RF card. The two digital outputs (CLOCK and DATA ) are pulled-
up to 5V with a 10K Ohm resistor. The frame is composed by 70 bits
according with the MAG-TEK / ABA TRACE 2 format.
in an indoor plastic casing. Hereby, CDVI Wireless Spa, declares that the
radio equipment type SELCD4A
The full text of the EU declaration of conformity is available at the following
internet address: www.erone.com.
S E L C D 4 A
1B - Usable transmitters
Series Erone 024A Type. S2TR2641E2: 2 keys transmitter
Series Erone 024A Type. S2TR2681E4: 4 keys transmitter
Series Erone Mini Type SETR2641AM2 : 2 keys mini transmitter
Series Erone 054A Type S5TR2641E2- E4 : 2-4 keys flat transmitter
1C - Technical specifications
Receiver type:
Demodulation:
Operating frequency:
Local oscillator frequency:
Intermediate frequency:
Sensitivity:
Input impedance:
Power supply :
Current consumption:
Output s number:
Output type:
Max output current:
Operating temperature:
Overall dimensions:
Weight:
45
The appliance is housed
is in compliance with directive 2014/53/EU.
Superheterodyne.
AM/ASK.
433,92 MHz.
6,6128 MHz.
10,7 MHz.
-102 dBm.
50 Ohm.
12 ÷ 24 V ac/dc.
24 mA
2
Clock-Data.
250 mA
-20 ÷ + 70 °C.
105 x 45 x 28 mm.
65 gr.
105
28
L2 L1
P1
1 2 3 4 5
1D - Receiver Layout
P1 : Programming button
L2 : Red led ( programming )
L1 : Green led ( power supply )
1E - Terminal board connections
1 - Not used;
2 - Output CLOCK ( Open collector );
3 - Output DATA ( Open collector );
4 - Power Supply ( 12 ÷ 24 Vac/dc );
5 - Power GND;
6 - Not used;
7 - Antenna Shield;
8 - Antenna Core;
IMPORTANT
The receiver allocation is very important for the best operation of the system.
Place the receiver far from interference sources such as big magnetic fields
or radio emissions.
The installation and the positioning of the antenna is very important as well.
Before to install the antenna it is advisable to make some tests on the site.
Use shielded cable type RG58 ( impedance 50 Ohm ) for the antenna
connection.
SELCD4A
6 7 8
