Page 1 of 10
SS0054
FITTING INSTRUCTIONS FOR SS0054 SPINDLE SLIDERS
TO FIT YAMAHA XTZ 700 (TENERE) 2019

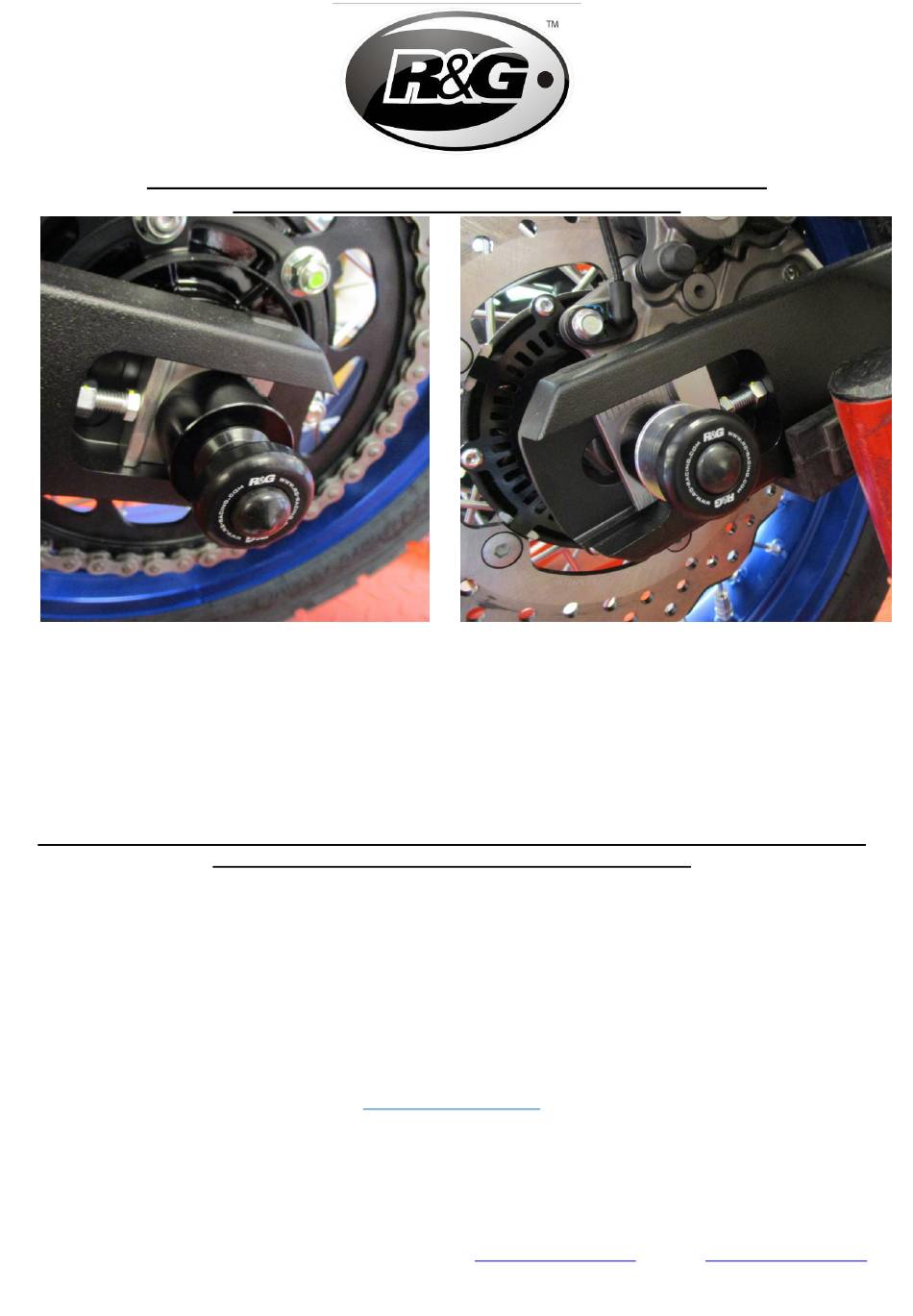

Picture A
Picture B
This Kit contains the items pictured and labelled over page.
Some parts may be shown for clarity of instructions only.
Do not proceed until you are sure all parts are present.
Please read all instructions before proceeding.
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
Please note that the way the kit is packed does not necessarily represent the way of
mounting to the bike.
In the event of rubber washers being used to hold components onto bolts,
these rubber washers can be thrown away.
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM
www.rg-racing.com
R&G
Unit
, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
1
Tel: +44 (0)
420 89007 Fax: +44 (0)
420 87301
www.rg-racing.com
Email:
info@rg-racing.com
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for R&G SS0054
Summary of Contents for R&G SS0054
- Page 1 Page 1 of 10 SS0054 FITTING INSTRUCTIONS FOR SS0054 SPINDLE SLIDERS TO FIT YAMAHA XTZ 700 (TENERE) 2019 Picture A Picture B This Kit contains the items pictured and labelled over page. Some parts may be shown for clarity of instructions only.
-
Page 2: Tools Required
Page 2 of 10 SS0054 TOOLS REQUIRED GENERAL TORQUE SETTINGS M4 BOLT = 8Nm • Socket Set to Include 2 x 10mm sockets and wrenches. M5 BOLT = 12Nm • Small amount of superglue or Loctite. M6 BOLT = 15Nm... -
Page 3: Fitting Instructions
Page 3 of 10 SS0054 FITTING INSTRUCTIONS • Fit one M6 nut (item 7) and one M6 washer (item 8) to the end of the spindle bar (item 4) with the shorter thread, engaging the nut so the plastic insert of the nut is fully engaged and the bar protrudes by 1 or 2 threads. - Page 4 Page 4 of 10 SS0054 NOTICE DE MONTAGE SS0054 SLIDER D’AXE POUR YAMAHA XTZ 700 (TENERE) 2019 Photo A Photo B E KIT CONTIENT LES ARTICLES EN PHOTO ET ETIQUETTES SUR LA PAGE LES PARTIES PRESENTÉES PEUVENT ETRE UNIQUEMENT REPRESENTATIVES POUR LA CLARTE...
-
Page 5: Outils Requis
Page 5 of 10 SS0054 OUTILS REQUIS VALEURS DE SERRAGE M4 BOULON = 8Nm M5 BOULON = • 2 x 10mm. Clé à cliquet + douilles M6 BOULON = • Un peu de superglue ou Loctite. M8 BOULON = 20Nm... - Page 6 Page 6 of 10 SS0054 CHEMA DE MONTAGE R&G Unit , Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0) 420 89007 Fax: +44 (0) 420 87301 www.rg-racing.com Email: info@rg-racing.com...
-
Page 7: Notice De Montage
Page 7 of 10 SS0054 NOTICE DE MONTAGE • Monter un écrou M6 (article 7) et une rondelle M6 (article 8) à l'extrémité de l’axe (article 4) avec le filetage le plus court, en engageant l'écrou de sorte que l'insert en plastique de l'écrou soit complètement engagé... - Page 8 Page 8 of 10 SS0054 MONTAGEANLEITUNG FÜR SS0054 ACHSPROTEKTOREN PASSEND FÜR YAMAHA XTZ 700 (TENERE) 2019 Abbildung A Abbildung B Alle Kit-Teile sind auf den nächsten Seiten abgebildet und gekennzeichnet Die abgebildeten Teile dienen lediglich zur Erklärung. Überprüfen Sie zuerst, dass alle Teile vorhanden sind.
- Page 9 Page 9 of 10 SS0054 TOOLS REQUIRED ALLGEM ANZUGSDREHMOMENT M4 SCHRAUBE = 8Nm • Steckschlüsselsatz inkl. 2 x 10 mm M5 SCHRAUBE = 12Nm Steckschlüssel M6 SCHRAUBE = 15Nm • Kleine Menge Sekundenkleber oder M8 SCHRAUBE = 20Nm Loctite M10 SCHRAUBE = 40Nm...
- Page 10 Page 10 of 10 SS0054 MONTAGEANLEITUNG • Montieren Sie eine M6 Mutter (Artikel 7) und eine M6 Unterlegscheibe (Artikel 6) am Ende der Verbindungsstange mit dem kürzen Gewinde (Artikel 4) - Die Mutter so anbringen, dass der Kunststoffeinsatz der Mutter komplett eingerastet ist und die Verbindungsstange mit 1 bis 2 Gewinden hervorsteht.
