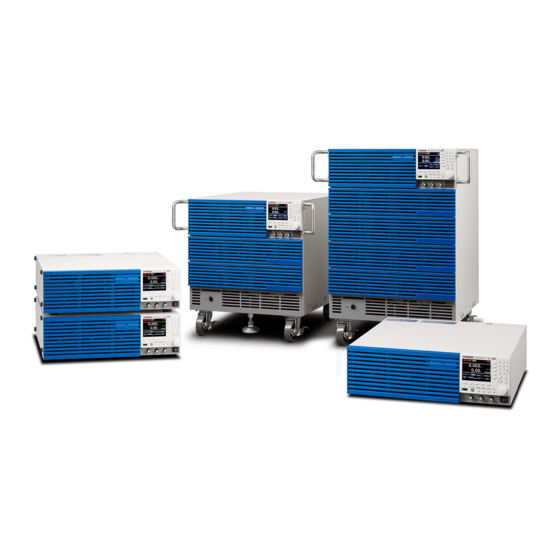

Compact High Voltage DC Electronic Load
PLZ-5WH2 Series
Operating voltage: 10 V to 1000 V (Min. 1.5 V)
Power capacity: 1 kW/2 kW/4 kW/12 kW/20 kW, 5 models
100 kW/ 2000 A with parallel operation (Max. 5 units) Connectable with 5WH series
LAN (LXI)/USB/RS232C standard digital interface *GPIB optional
Synchronized operation
Sequence function
Arbitrary IV characteristic (ARB) mode
Data-logging: voltage/current/power measurements
(Measurement display, programmable internal memory)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kikusui PLZ-5WH2 Series
Summary of Contents for Kikusui PLZ-5WH2 Series
- Page 1 D C E L E C T R O N I C L O A D Compact High Voltage DC Electronic Load PLZ-5WH2 Series Operating voltage: 10 V to 1000 V (Min. 1.5 V) Power capacity: 1 kW/2 kW/4 kW/12 kW/20 kW, 5 models 100 kW/ 2000 A with parallel operation (Max.
- Page 2 PLZ4005WH2 PLZ2005WH2 Compact High Voltage DC Electronic Load The PLZ-5WH2 high power DC electronic PLZ-5WH2 Series load series is where durable, reliable ingenuity meets multifunctional and high power design. Providing 5 variety of power ● Operating voltage: 10 V to 1000 V (Min. 1.5 V) range line-ups, from 1 kW bench top style ●...
- Page 3 Maximum Slew Rate of 20 A/μs [Specifications: See P.10] ● Maximum current and power during parallel operation using the same model The PLZ-5WH2 series boasts a 20 μs rise time*, easily satisfying Parallel operation Model Maximum current...
- Page 4 Integral Gate is set to Load On, and UVP is set detection time time voltage Time Load PLZ-5WH2 series Load PLZ-5WH2 series Rise start (Current starts owing.) Rise start (Current starts owing.) Integrated data recording PLZ-5WH2 series DUT’s voltage waveform...
-
Page 5: Pulse Function
Functions Pulse Function Sequence Function [Specifications: See P.9] Pulse function refers to the operation of executing two settings repetitively. A sequence consists of programs and steps. A program is a collection It is suitable for transient response characteristics testing of large of steps. -
Page 6: Setup Memory
The following synchronization features are available when simply pin number connecting the PLZ-5WH2 with other equipment using a communication cable. Any of the models in the PLZ-5WH2 series can be connected Rear panel together. Synchronized operation is possible even during parallel operation. -
Page 7: Ac Power Supply
Cut conditions: Voltage or capacity (Ah) Data display: table Sample: 5 DC Electronic Load PLZ-5WH2 Series ● EV Charger Aging Tests LV124 Standard L-02 Life test - high-temperature endurance test (Durability - Heat) [Life test] [Combination of AC power source and electronic load equipment]... -
Page 8: Specifications
Specifications Unless specified otherwise, the specifications are for the The used terminology is as follows: following settings and conditions. • TYP: These are typical values that are representative of situations where the product • The product is warmed up for at least 30 minutes. operates in an en vironment with an ambient temperature of 23 °C (73.4 °F). - Page 9 Specifications ■Arbitrary I-V characteristics (ARB) mode Item PLZ1005WH2 PLZ2005WH2 PLZ4005WH2 PLZ12005WH2 PLZ20005WH2 Three to 100 points of current values can be specified for the input voltage. Operating range Linear interpolation is applied between specified points. Response speed 500 μs, 1 ms, 2 ms, 5 ms, 10 ms, 20 ms, 50 ms, 100 ms, or off ■Measurement function Voltmeter Item...
- Page 10 Specifications ■Slew rate Item PLZ1005WH2 PLZ2005WH2 PLZ4005WH2 PLZ12005WH2 PLZ20005WH2 Operation mode Operating range 0.001 A/µs to 1 A/µs 0.002 A/µs to 2 A/µs 0.004 A/µs to 4 A/µs 0.01 A/µs to 12 A/µs 0.02 A/µs to 20 A/µs Resolution 0.00002 A/µs 0.00005 A/µs 0.0001 A/µs 0.0002 A/µs...
- Page 11 Specifications ■Integration display Item PLZ1005WH2 PLZ2005WH2 PLZ4005WH2 PLZ12005WH2 PLZ20005WH2 Elapsed time display Displays the time from load on to load off. Range 0 s to 3600000 s (1000 h 0 min 0 s) Ampere-hour meter display Displays integrated current Range 0 Ah to 70000 Ah 0 Ah to 140000 Ah 0 Ah to 280000 Ah...
- Page 12 Specifications ■EXT CONT connector Item PLZ1005WH2 PLZ2005WH2 PLZ4005WH2 PLZ12005WH2 PLZ20005WH2 Logic level switchable. Pulled up to 5 V by a 10 kΩ resistor. Load on/off control input The thresholds are HIGH: 3.5 V to 5 V, LOW: 0 V to 1.5 V. An alarm is activated with a voltage between 0 V and 1.5 V.
- Page 13 Specifications ■General specifications Item PLZ1005WH2 PLZ2005WH2 PLZ4005WH2 PLZ12005WH2 PLZ20005WH2 Input voltage range 100 Vac to 240 Vac (90 Vac to 250 Vac) single phase Input frequency range 47 Hz to 63 Hz Power consumption 70 VAmax 90 VAmax 150 VAmax 360 VAmax 590 VAmax 100 Vac...
-
Page 14: External Dimensions
External Dimensions ● PLZ1005WH2/PLZ2005WH2 429.5(16.91)(MAX455(17.91))W×128(5.04)(MAX145(5.71))H×400(15.75)(MAX540(21.26))D (mm (inch)) 4-M3 screw holes (Max. screw insertion depth: 6 mm (0.24)) 55 (2.17) 22 (0.87) 30 (1.18) 323 (12.72) 4- 5 (0.20) (Four holes for attaching the rubber feet) MAX540 (21.26) 40 (1.57) MAX25 (0.98) 400 (15.75) MAX455 (17.91) MAX10... - Page 15 External Dimensions ● PLZ12005WH2 430(16.93)(MAX545(21.46))W×396.2(15.6)(MAX495(19.49))H×550(21.65)(MAX720(28.35))D (mm (inch)) 58.5 (2.3) 448 (17.64) 16 M6 screw holes (Max. screw insertion depth: 8 mm (0.31) 36 (1.42) 74.2 (2.92) MAX545 (21.46) MAX720 (28.35) 430 (16.93) 44.8 (1.76) MAX25 (0.98) 550 (21.65) 18-M4 screw holes (including opposite face) (Max.
- Page 16 Expand the ideas of engineers with the sequence creation and control software " Wavy " The SD033 -PLZ-5WH2(Wavy for PLZ-5WH2) is an application software designed for sequence creation and operation of Kikusui’s PLZ-5WH2 series of Trial version DC electronic loads. It allows users to freely carry out sequence control of power available on supplies and electronic loads without any programming knowledge.
