Instruction
Manual

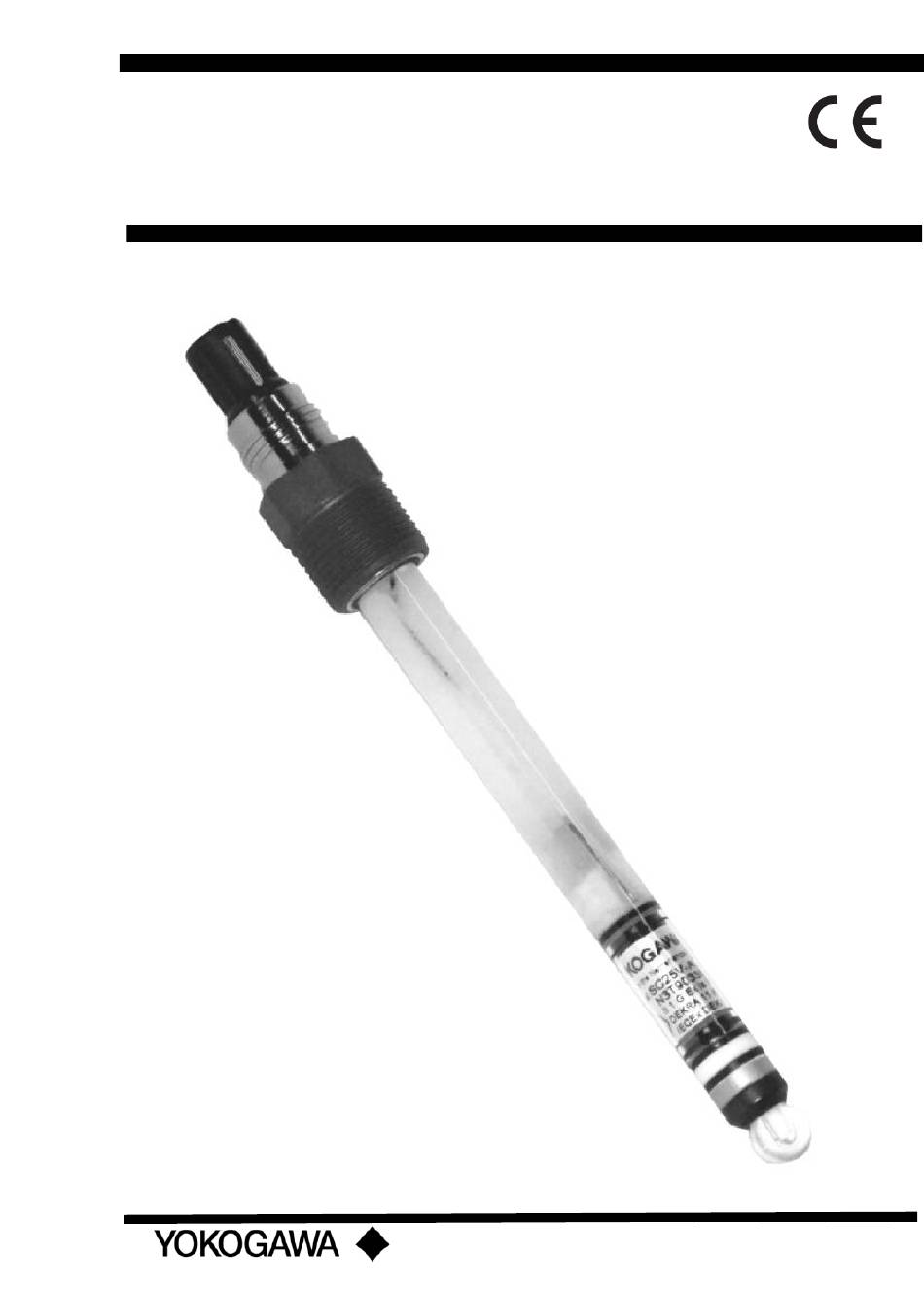

Model SC25V
Combination 12mm sensor;
pH, Ref, LE and Temperature
IM 12B06J01-40EN-P
nd
2
edition

Advertisement

Table of Contents
loading

Related Manuals for YOKOGAWA SC25V

Summary of Contents for YOKOGAWA SC25V

  • Page 1 Model SC25V Instruction Combination 12mm sensor; Manual pH, Ref, LE and Temperature IM 12B06J01-40EN-P edition...
  • Page 2 родния ви eзик, ce свържете c най- artículos antiexplosivos en su idioma local, близкия oфис или представителство на deberá ponerse en contacto con la oficina фирма Yokogawa. o el representante de Yokogawa más cercano. (CZ) Všechny uživatelské příručky pro výrobky, na něž se vztahuje nevýbušné schváleni Tous les manuels d’instruction des...
  • Page 3 Ex, deverá entrar em contacto com a delegação mais próxima (SLO) ou com um representante da Yokogawa. Vsi predpisi in navodila za AEX Ex sorodni pridelki so pri roki v anglišèini. Èe so Ex sorodna navodila potrebna v vašem tukejnjem jeziku, kontaktirajte vaš...

  • Page 4: Table Of Contents

    5. WIRING ........................24 6. GENERAL CALIBRATION & MAINTENANCE PROCEDURE ........25 6.1 Calibration for pH measurement ............... 25 6.2 Maintenance of the SC25V sensor ..............25 7. MODEL CODES ......................26 8. SPARE PARTS ......................26 9. CHEMICAL COMPATIBILITY CHART ................ 27...

  • Page 5: Preface

    In (pH, Ref, LE and Temperature). The the event of warranty claim, the defective SC25V is the best choice for the majority goods should be sent (freight paid) to the of typical process- and waste- water Service Department of the relevant sales applications.

  • Page 6: Serial Number

    1.4 Serial number Table 2: Production Month code The Serial number is defined by nine (9) Month Month code alphanumeric characters: January Production location February Year/Month code March Tracking number April Example: N3P600028 June July Table 1: Production Year code August Year Year...

  • Page 7: General Specifications

    : > 96 % (of theoretical value) Sensor length : 120 mm and 225 mm Note: The temperature sensor included in the SC25V is designed for process compensation and for indication. It is NOT designed for process temperature control. 2.4 Dynamic specifications Response time pH <...

  • Page 8: Shipping Details

    2.6 Shipping details : SC25V-…..-120 SC25V-…..-225 Package size (LxWxH) : 300 x 100 x 75 mm 435 x 60 x 60 mm : 11.8 x 3.9 x 3.0 inch 17.2 x 2.4 x 2.4 inch Package weight (max.) : 0.26 kg (0.57 lbs) 0.28 kg (0.62 lbs)

  • Page 9: Regulatory Standards

    Ui = 18 V; Ii=170 mA; Pi= 0.4 W; Li= 0 mH Ci = 0.4 nF (Suffix SC25V-B…with ID chip): Ci = 0 nF (Suffix SC25V-A…without ID-chip) When the sensor has been connected to non intrinsically safe equipment which exceeds the restrictions regarding the sensor input circuits, the sensor is not suitable anymore for intrinsically safe use.
  • Page 10 IECEx DEK 11.0064X, issue 1 (effective from 02-2021) Label information: The Model Suffix information as well as manufacturer information is written on a product label on or in the product. Example of a product label inside SC25V see figure 1. SC25V-XXXXX-XXX N3XA12345...
  • Page 11 D&E 2020-023-A50. Sensor input parameters: Ui= 18V; Ii= 170 mA; Pi= 0.4 W; Li= 0 mH Ci= 0.4 nF (Suffix SC25V-B…with ID chip): Ci= 0 nF (Suffix SC25V-A…without ID-chip) Ambient temperature: -40 °C to +40 °C for temperature class T6, -40 °C to +55 °C for temperature class T4 and T5,...
  • Page 12 Control drawing: D&E 2020-023-A50 (part 1) IM 12B06J01-40EN-P...
  • Page 13 500 V rms. Sensor Model code: Table 3: Model Suffix Codes Option Codes SC25V -abcde-fgh Type + Region: AGP25 Glass body/Straight Thread/Bulb abcde shaped G-glass/without ID-chip/IS...
  • Page 14 Control drawing: D&E 2020-023-A50 (part 2) IM 12B06J01-40EN-P...
  • Page 15 The sensor itself does not provide 500 V rms isolation from earth, the interconnecting equipment Model SA11-P1 Smart Adapter however provide this required isolation. Sensor Model code: Table 4: Model Suffix Codes Option Codes SC25V -abcde-fgh abcde Type + Region: BGP25 Glass body/Straight Thread/Bulb shaped G-glass/with ID-chip/IS for ATEX/IECEx, FM-US, FM-CAN...
  • Page 16 D&E 2020-023-A51. Sensor input parameters: Ui= 18 V; Ii= 170 mA; Pi= 0.4 W; Li= 0 mH Ci= 0.4 nF (Suffix SC25V-B…with ID chip): Ci= 0 nF (Suffix SC25V-A…without ID-chip) Ambient temperature: -40 °C to +40 °C for temperature class T6, -40 °C to +55 °C for temperature class T4 and T5,...
  • Page 17 Control drawing: D&E 2020-023-A51 (part 1) IM 12B06J01-40EN-P...
  • Page 18 500 V rms. Sensor Model code: Table 5: Model Suffix Codes Option Codes SC25V -abcde-fgh abcde Type + Region: AGP25 Glass body/Straight Thread/Bulb shaped G-glass/without ID-chip/IS...
  • Page 19 Control drawing: D&E 2020-023-A51 (part 2) IM 12B06J01-40EN-P...
  • Page 20 The sensor itself does not provide 500 V rms isolation from earth, the interconnecting equipment Model SA11-P1 Smart Adapter however provide this required isolation. Sensor Model code: Table 6: Model Suffix Codes Option Codes SC25V -abcde-fgh abcde Type + Region: BGP25 Glass body/Straight Thread/Bulb shaped G-glass/with ID-chip/IS for ATEX/IECEx, FM-US, FM-CAN...

  • Page 21: Installation Of Sc25V

    For optimum measurement results, the The SC25V can be mounted using: • PR10 retractable fitting (see fig 4). SC25V should be installed in a location • FF20 flow fitting / FS20 subassembly / that offers an acceptable representation of the process composition and DOES NOT FD20 immersion fitting (see fig 6) •...
  • Page 22 Figure 6: PG13.5 => M25 =>Flow fitting Figure 7: PG13.5 => P.20 fitting Dimensions in mm (inches) Figure 8: Flow fitting FF40 Flow fitting option /FF K1598AC (incl. 3.1 certificate) IM 12B06J01-40EN-P...

  • Page 23: Dimensions

    : < 0,5 mm (0.02”) (plug head - 25 mm from tip) Perpendicularity : < 0,5 mm (0.02”) (centerline sensor) Cylindricity Criteria : All types All measuring elements within 25mm from tip. Dimensions in mm (inches) Ø11.9±0.1 (Ø0.47±0.04) < Ø10.8 (< Ø0.425) Figure 9: Dimensional drawing SC25V IM 12B06J01-40EN-P...

  • Page 24: Wiring

    5. WIRING The SC25V sensor is provided with a 6 or 8 pins Vario Pin connector (type SC25V-A*P25 6 pins without ID chip and SC25V-B*P25 8 pins with ID-chip). Table 7: SC25V-A*P25 SC25V-B*P25 (6 pins) (8 pins) Reference Reference pH Guard...

  • Page 25: General Calibration & Maintenance Procedure

    6. GENERAL CALIBRATION & MAINTENANCE PROCEDURE 6.1 Calibration for pH measurement To calibrate the SC25V sensor, two buffer solutions with known pH values are required. It is recommended that one buffer solution has a value near to pH 7.00. Depending on the process value to be measured, the second buffer solution should be either acidic (below pH 7.00) or alkaline (above pH 7.00).

  • Page 26: Model Codes

    7. MODEL CODES Table 8: Model Code Suffix code Description Combined 12mm sensor: pH, Ref, LE, Temp. SC25V Equiped with Variopin connector -AGP25 General purpose, Analog -ALP25 High temp. Chemical resistant, Analog Sensor type -BGP25 General purpose, SENCOM ID-chip -BLP25 High temp.

  • Page 27: Chemical Compatibility Chart

    = can be used / x = shortens useful life / - = cannot be used / Blank = no data currently available Note: Information in this list is based on our general experience and literature data and given in good faith. However, Yokogawa is unable to accept responsibility for claims related to this information.
  • Page 28 IM 12B06J01-40EN-P Printed in The Netherlands, 02-2101 Subject to change without notice Copyright © IM 12B06J01-40EN-P...
