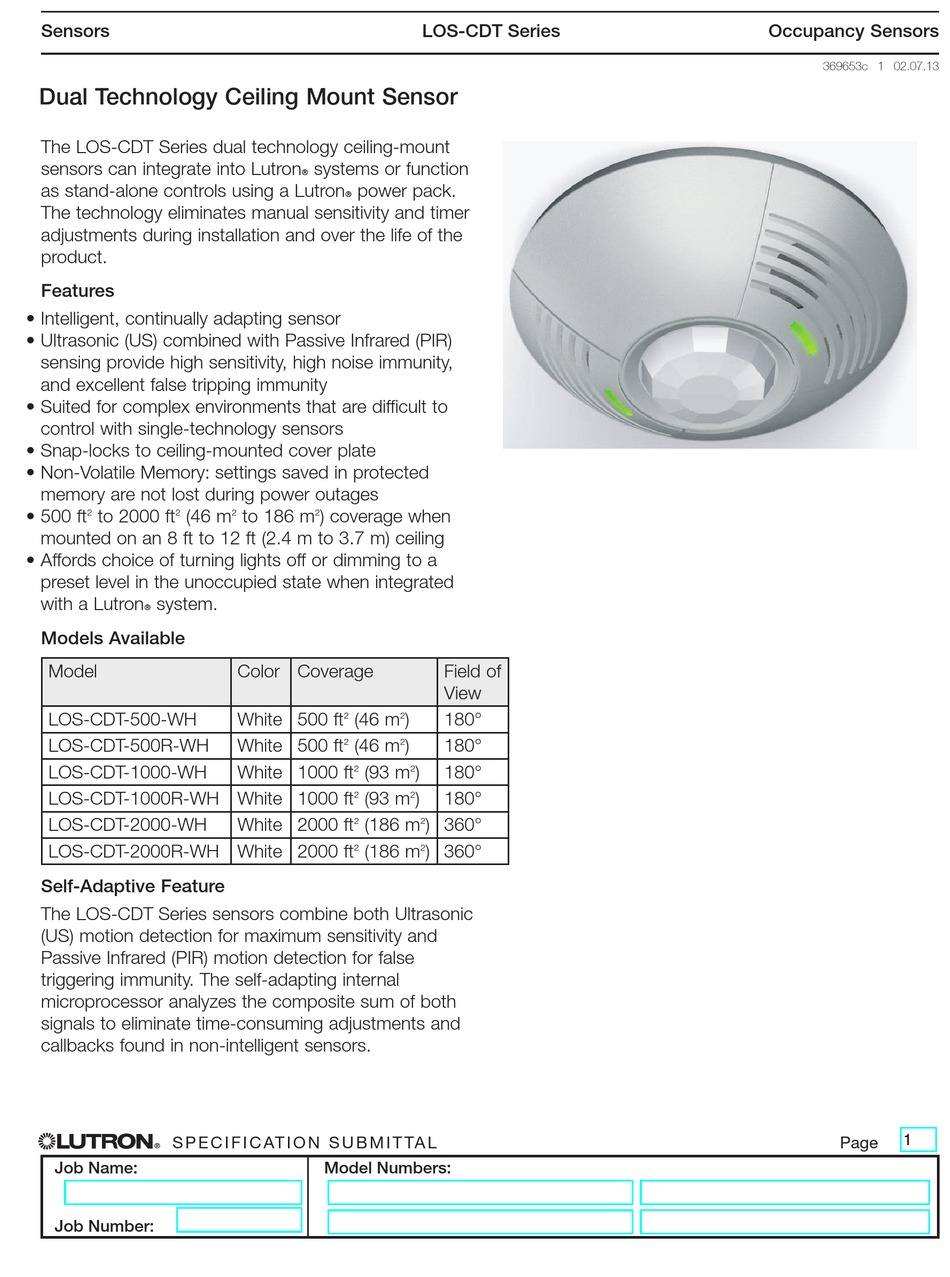

Lutron Electronics LOS-CDT Series Manual

Sensors
Dual Technology Ceiling Mount Sensor
The LOS-CDT Series dual technology ceiling-mount
sensors can integrate into LutronR systems or function
as stand-alone controls using a LutronR power pack.
The technology eliminates manual sensitivity and timer
adjustments during installation and over the life of the
product.
Features
• Intelligent, continually adapting sensor
• Ultrasonic (US) combined with Passive Infrared (PIR)
sensing provide high sensitivity, high noise immunity,
and excellent false tripping immunity
• Suited for complex environments that are difficult to
control with single-technology sensors
• Snap-locks to ceiling-mounted cover plate
• Non-Volatile Memory: settings saved in protected
memory are not lost during power outages
• 500 ft( to 2000 ft( (46 m( to 186 m() coverage when
mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling
• Affords choice of turning lights off or dimming to a
preset level in the unoccupied state when integrated
with a LutronR system.
Models Available
Model
LOS-CDT-500-WH
LOS-CDT-500R-WH
LOS-CDT-1000-WH
LOS-CDT-1000R-WH White 1000 ft( (93 m()
LOS-CDT-2000-WH
LOS-CDT-2000R-WH White 2000 ft( (186 m() 360°
Self-Adaptive Feature
The LOS-CDT Series sensors combine both Ultrasonic
(US) motion detection for maximum sensitivity and
Passive Infrared (PIR) motion detection for false
triggering immunity. The self-adapting internal
microprocessor analyzes the composite sum of both
signals to eliminate time-consuming adjustments and
callbacks found in non-intelligent sensors.
S p e c i f i c at i o n S u b m i t ta l
®
Job Name:
Job Number:
Color Coverage
White 500 ft( (46 m()
White 500 ft( (46 m()
White 1000 ft( (93 m()
White 2000 ft( (186 m() 360°
Model Numbers:
LOS-CDT Series
Field of
View
180°
180°
180°
180°
Occupancy Sensors
369653c 1 02.07.13
