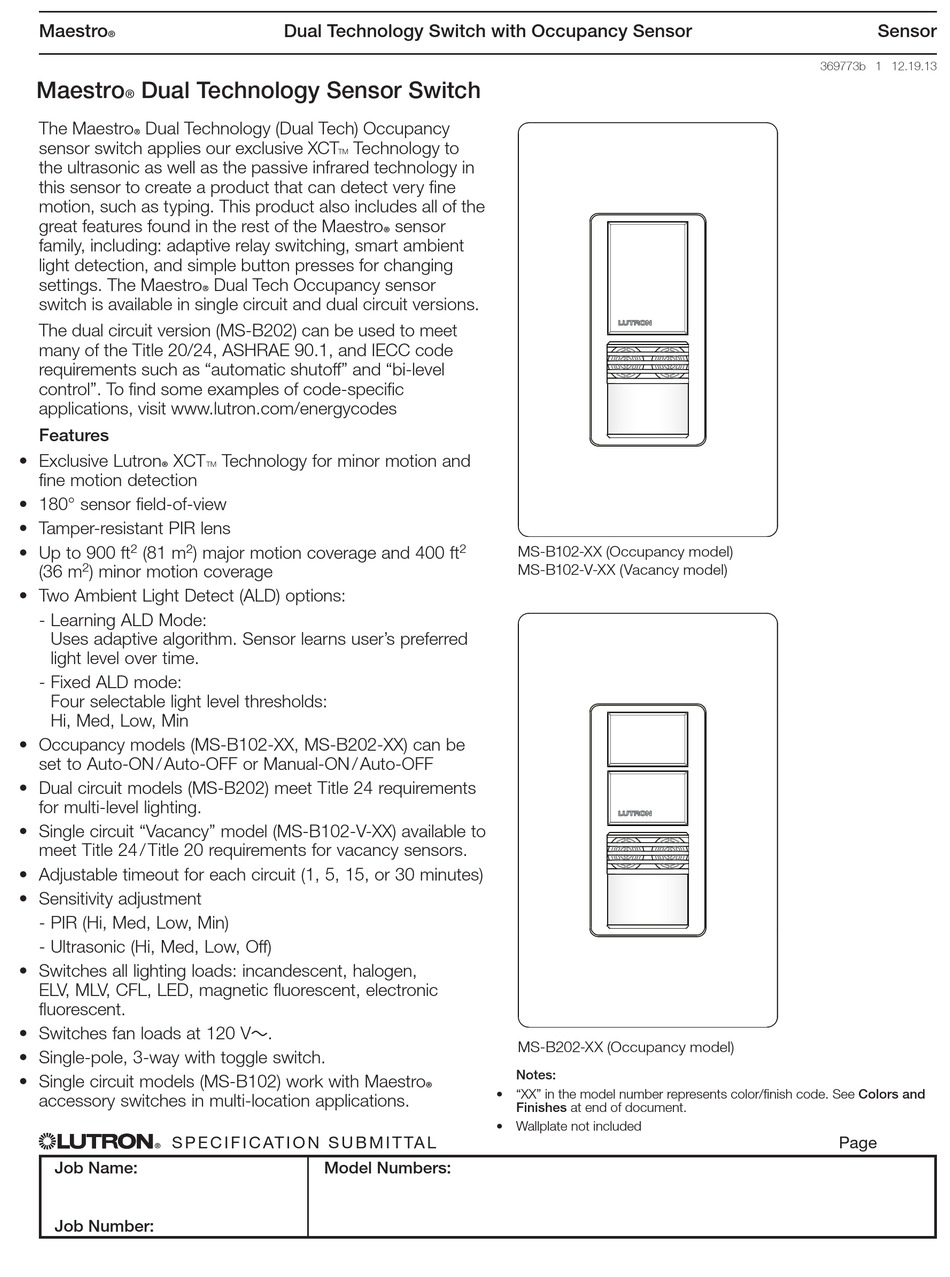

Lutron Electronics Maestro MS-B102 Series Manual

Maestro
®

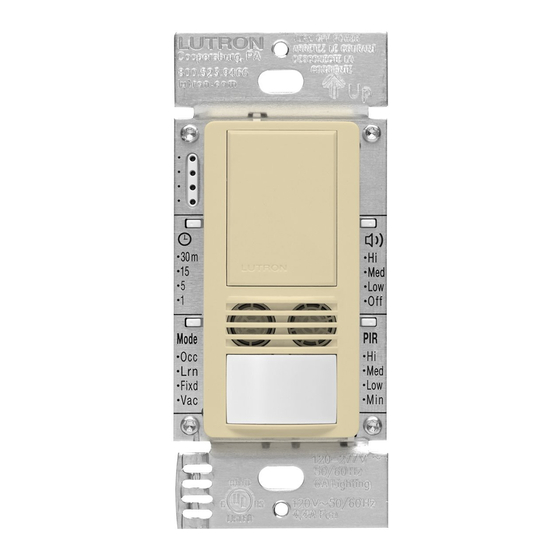

Maestro Dual Technology Sensor Switch
®
The MaestroR Dual Technology (Dual Tech) Occupancy
sensor switch applies our exclusive XCTT Technology to
the ultrasonic as well as the passive infrared technology in
this sensor to create a product that can detect very fine
motion, such as typing. This product also includes all of the
great features found in the rest of the MaestroR sensor
family, including: adaptive relay switching, smart ambient
light detection, and simple button presses for changing
settings. The MaestroR Dual Tech Occupancy sensor
switch is available in single circuit and dual circuit versions.
The dual circuit version (MS-B202) can be used to meet
many of the Title 20/24, ASHRAE 90.1, and IECC code
requirements such as "automatic shutoff" and "bi-level
control". To find some examples of code-specific
applications, visit www.lutron.com/energycodes
Features
• Exclusive LutronR XCTT Technology for minor motion and
fine motion detection
• 180° sensor field-of-view
• Tamper-resistant PIR lens
2 2
• Up to 900 ft (81 m ) major motion coverage and 400 ft
(36 m 2 ) minor motion coverage
• Two Ambient Light Detect (ALD) options:
- Learning ALD Mode:
Uses adaptive algorithm. Sensor learns user's preferred
light level over time.
- Fixed ALD mode:
Four selectable light level thresholds:
Hi, Med, Low, Min
• Occupancy models (MS-B102-XX, MS-B202-XX) can be
set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF
• Dual circuit models (MS-B202) meet Title 24 requirements
for multi-level lighting.
• Single circuit "Vacancy" model (MS-B102-V-XX) available to
meet Title 24 / Title 20 requirements for vacancy sensors.
• Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
• Sensitivity adjustment
- PIR (Hi, Med, Low, Min)
- Ultrasonic (Hi, Med, Low, Off)
• Switches all lighting loads: incandescent, halogen,
ELV, MLV, CFL, LED, magnetic fluorescent, electronic
fluorescent.
• Switches fan loads at 120 V~.
• Single-pole, 3-way with toggle switch.
• Single circuit models (MS-B102) work with MaestroR
accessory switches in multi-location applications.
S P E C I F I C AT I O N S U B M I T TA L
®
Job Name:
Job Number:
Dual Technology Switch with Occupancy Sensor
2
Model Numbers:
MS-B102-XX (Occupancy model)
MS-B102-V-XX (Vacancy model)
MS-B202-XX (Occupancy model)
Notes:
• "XX" in the model number represents color/finish code. See Colors and
Finishes at end of document.
• Wallplate not included
Sensor
369773b 1 12.19.13
