Lutron Electronics LOS-CDT Series Manual

Sensors

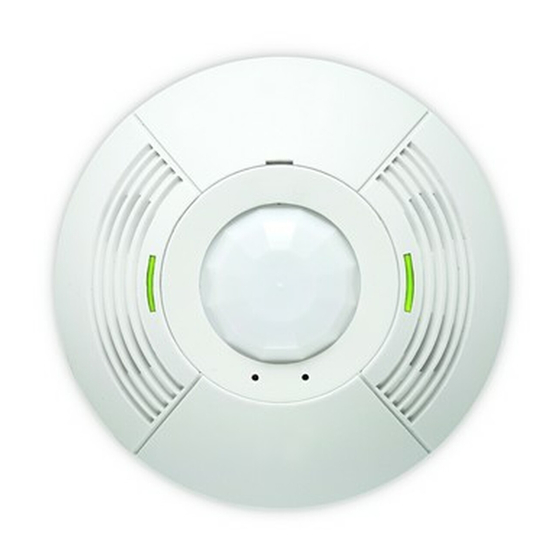

Dual Technology Ceiling Mount Sensor
Models Available
Cat. No.
LOS-CDT-500-WH
LOS-CDT-500R-WH
LOS-CDT-1000-WH
LOS-CDT-1000R-WH
LOS-CDT-2000-WH
LOS-CDT-2000R-WH
Self-Adaptive Feature
The LOS-CDT Series ceiling-mount occupant sensors combine both (US) motion detection for maximum
sensitivity and passive infrared (PIR) motion detection for false triggering immunity. The self-adapting internal
microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and
callbacks found in non-intelligent sensors.
SP ECIF ICA TI O N S UB M ITT AL
®
Job Name:
Job Number:
LOS-CDT Series
The LOS-CDT Series ceiling-mount dual-technology sensors
can integrate into Lutron systems or function as stand-
alone controls using a Lutron power pack. The technology
eliminates manual sensitivity and timer adjustments during
installation and over the life of the product.
Features
• Intelligent, continually adapting sensor
• Ultrasonic (US) combined with passive infrared (PIR)
sensing provide high sensitivity, high noise immunity, and
excellent false tripping immunity
• Suited for complex environments that are difficult to
control with single-technology sensors
• Snap-locks to ceiling-mounted cover plate
• Non-Volatile Memory: settings saved in protected
memory are not lost during power outages
• 500 to 2000 sq ft (46 to 186 m
mounted on an 8 - 12 ft (2.4 to 3.7 m) ceiling; 180° and
360° field of view
• Affords choice of turning lights off or dimming to a preset
level in the unoccupied state when integrated with a
Lutron system.
Color Coverage
White 500 sq ft (46 m
White 500 sq ft (46 m
White 1000 sq ft (93 m
White 1000 sq ft (93 m
White 2000 sq ft (186 m
White 2000 sq ft (186 m
Model Numbers:
Field of View
2 ) 180°
2 ) 180°
2 ) 180°
) 180°
2
) 360°
2
2 ) 360°
Occupant Sensors
369653b 1 05.04.12
2 ) coverage when
Page 1
