Sensors

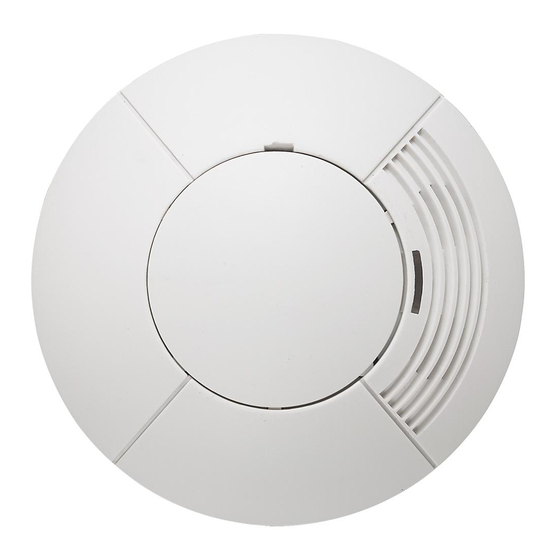

Ultrasonic Ceiling Mount Sensor

Models Available

C C a a t t . . N N o o . .
LOS-CUS-500-WH
LOS-CUS-1000-WH
LOS-CUS-2000-WH

Self-Adaptive Feature

Designed to meet the challenges found in a wide variety of spaces, the LOS-CUS Series provides reliable
detection with high minor motion detection. The intelligent, continually adapting sensor technology
eliminates manual sensitivity and timer adjustments during installation and over the life of the product. The
internal microprocessor analyzes the information from the ultrasonic technology and determines the optimum
setting to use in order to properly cover the space. Should the room be reconfigured (e.g., new furniture),
the software will adapt to continue to provide correct time out for the lights.
S P E C I F I C AT I O N S U B M I T TA L
®
Job Name:
Job Number:
LOS-CUS Series
The LOS-CUS Series ceiling-mount ultrasonic sensors can
integrate into Lutron systems or function as stand-alone
controls using a Lutron power pack. Any movement within
the sensor's range causes a shift in the original emitted
frequency. The sensor's receiver identifies any change in
frequency as motion and either turns the lights on or
maintains lights on.

Features

• Intelligent, continually adapting ultrasonic sensor
• Snap-locks to ceiling-mounted cover plate
• Excellent minor motion sensitivity
• Non-Volatile Memory: settings saved in protected
memory are not lost during power outages
• 500 to 2000 sq.ft. (46 to 186 m
mounted on an 8 - 12 ft. (2.4 to 3.7 m) ceiling
• Affords choice of turning lights off or dimming to a preset
level in the unoccupied state when integrated with a
Lutron system.
C C o o l l o o r r C C o o v v e e r r a a g g e e
White 500 sq.ft. (46 m
White 1000 sq.ft. (93 m
White 2000 sq.ft. (186 m
Model Numbers:
F F i i e e l l d d o o f f V V i i e e w w
2 ) 180°
2 ) 180°
2 ) 360°
Occupant Sensors
LOS-CUS 1 09.04.08
2 ) coverage when
