Power Supply

The AUDIOARTS 08 console is powered by a fac-
tory supplied power adapter with 100-240V/50 -60Hz
input, 25W maximum output power, and a 4 foot
long output cable.

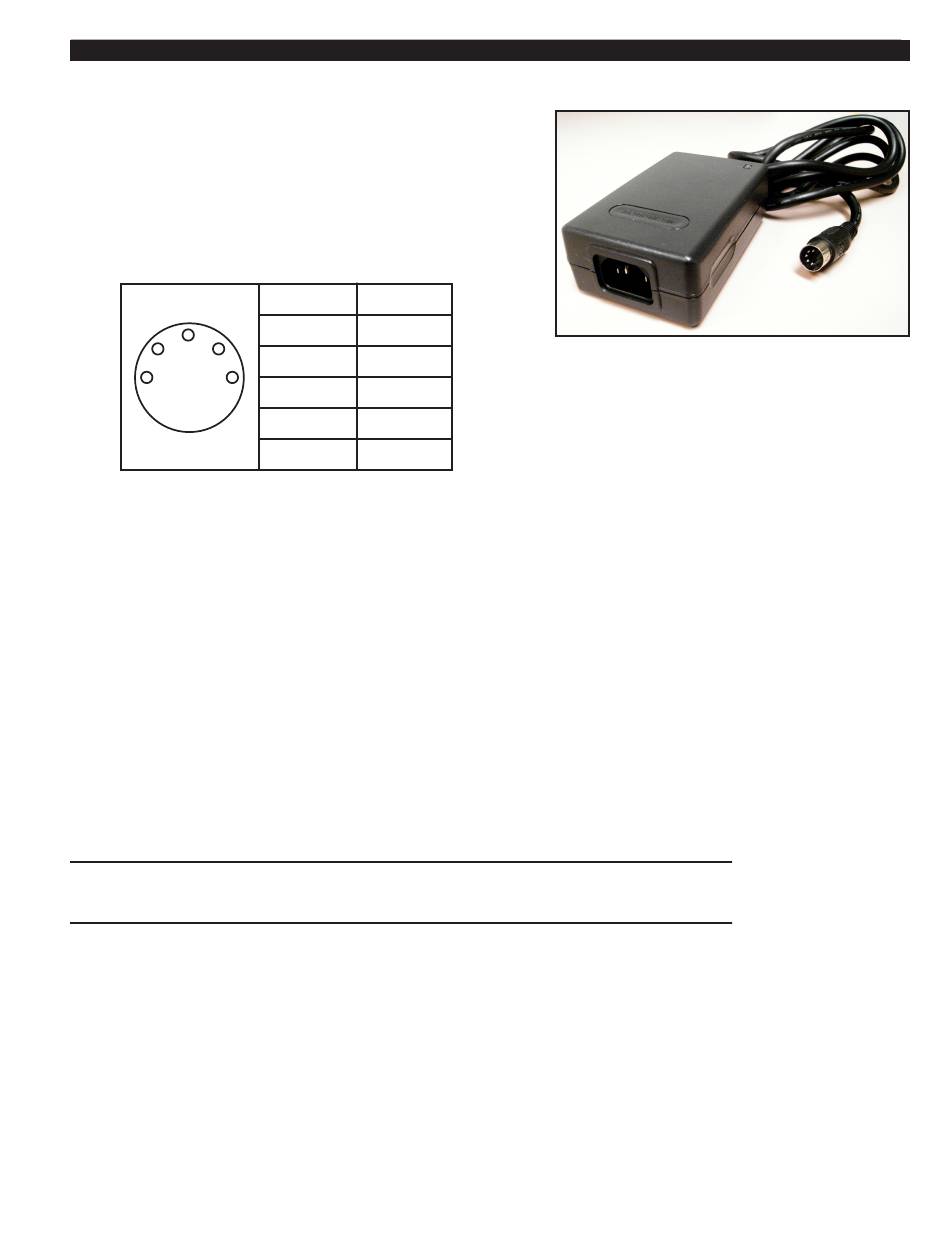

DC Power Output Pinout
5 2 4
3
1
The power supply adapter is supplied with a 3
that should be plugged into a "clean" AC power source, that is, an AC
source that feeds only the control room audio gear. This source should
be a separate feed from those powering lighting, air-conditioning, or any
other non-audio machinery.

Energizing

Assuming the AUDIOARTS 08 console mainframe is properly placed,
and its power supply correctly connected to the console, you may now
energize the power supply adapter by plugging it into the AC mains. The
console's switches will assume factory default settings.
Note: To de-energize the console, unplug the power supply adapter's AC
cord from the AC mains. Never de-energize the console by disconnecting
the cable that connects the console and power supply adapter together.
Once you have verified proper power-up, unplug the rackmount power
supply to de-energize the control surface. You may now proceed to wire
up audio and control connections
AUDIOARTS 08 / Dec 2015
I N S T A L L A T I O N A N D P O W E R
PIN # OUTPUT
1 COM
2 COM
3 +5VDC
4 -15V
5 +15V
wire grounded AC cord
_
The power feed recom-
mended in the text is often
installed and referred to in
studios as an "isolated AC
ground" outlet. It is usually
orange in color.
