Power Supply

The AIR 2+ console is powered by a factory
supplied power adapter with 100-240V/50-60Hz
input, 50W maximum output power, and a 4 foot
long output cable.

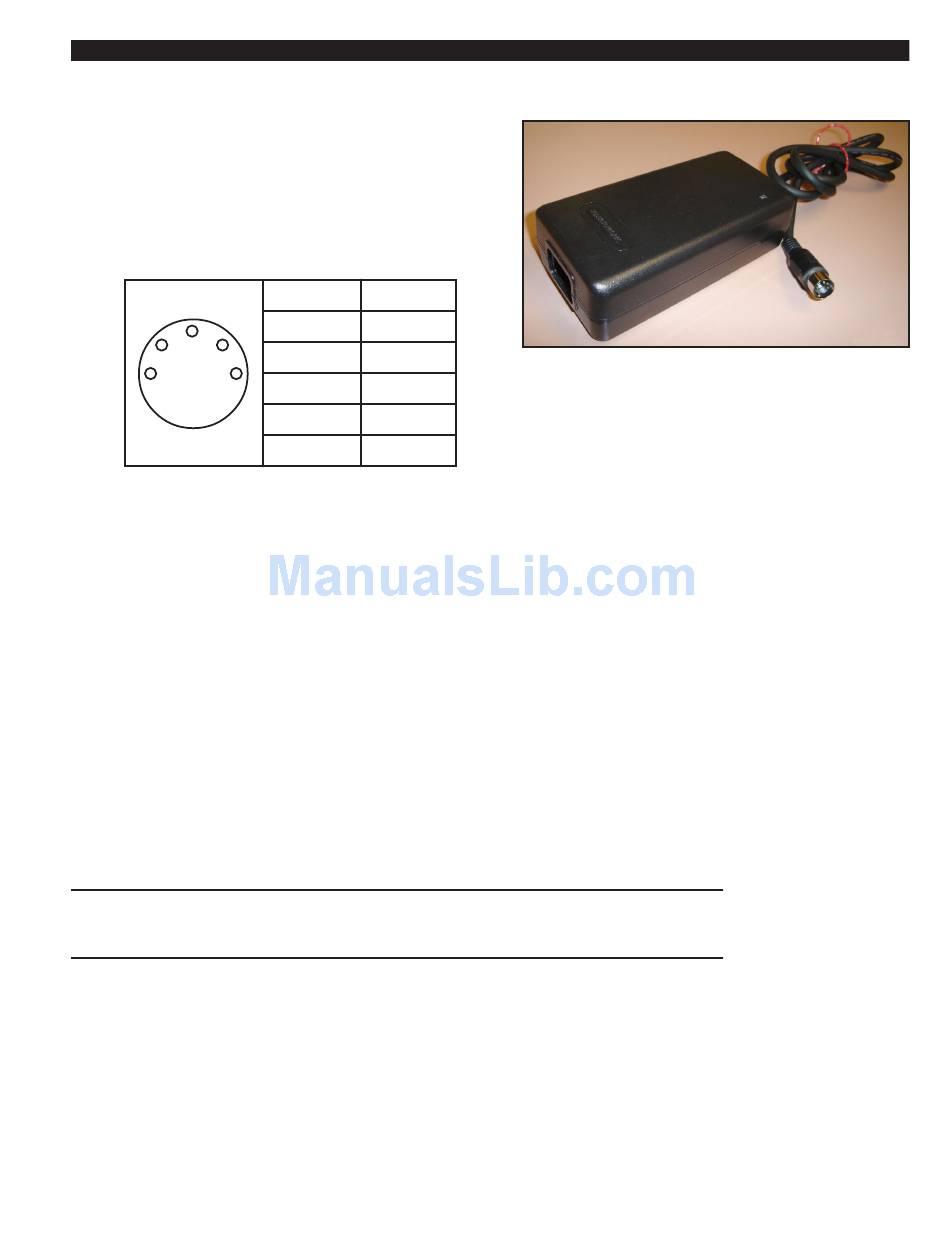

DC Power Output Pinout
5 2 4
3
1
The power supply adapter is supplied with a 3-wire grounded AC cord
that should be plugged into a "clean" AC power source, that is, an AC
source that feeds only the control room audio gear. This source should be
a separate feed from those powering lighting, air-conditioning, or any
other non-audio machinery.

Energizing

Assuming the AIR 2+ console mainframe is properly placed, and its
power supply correctly connected to the console, you may now energize
the power supply adapter by plugging it into the AC mains. The console's
individual module switches will assume factory default settings.
Note: To de-energize the console, unplug the power supply adapter's
AC cord from the AC mains. Never de-energize the console by discon-
necting the cable that connects the console and power supply adapter
together.
Once you have verified proper power-up, unplug the power supply adapter Once you have verified proper power-up, unplug the power supply adapter Once you have verified proper power-up, unplug the power supply adapter Once you have verified proper power-up, unplug the power supply adapter Once you have verified proper power-up, unplug the power supply adapter
to de-energize the console. You may now proceed to wire up audio and to de-energize the console. You may now proceed to wire up audio and
to de-energize the console. You may now proceed to wire up audio and to de-energize the console. You may now proceed to wire up audio and to de-energize the console. You may now proceed to wire up audio and
control connections. control connections. control connections.
control connections. control connections.
AIR-2+ / Jul 2009 AIR-2+ / Nov 2006
I N S T A L L A T I O N a n d P O W E R
PIN # OUTPUT
1 COM
2 COM
3 +5VDC
4 -15V
5 +15V
The power feed recom-
mended in the text is of-
ten installed and referred
to in studios as an "iso-
lated AC ground" outlet.
It is usually orange in
color.
page 1 – 3
