Hook-Ups

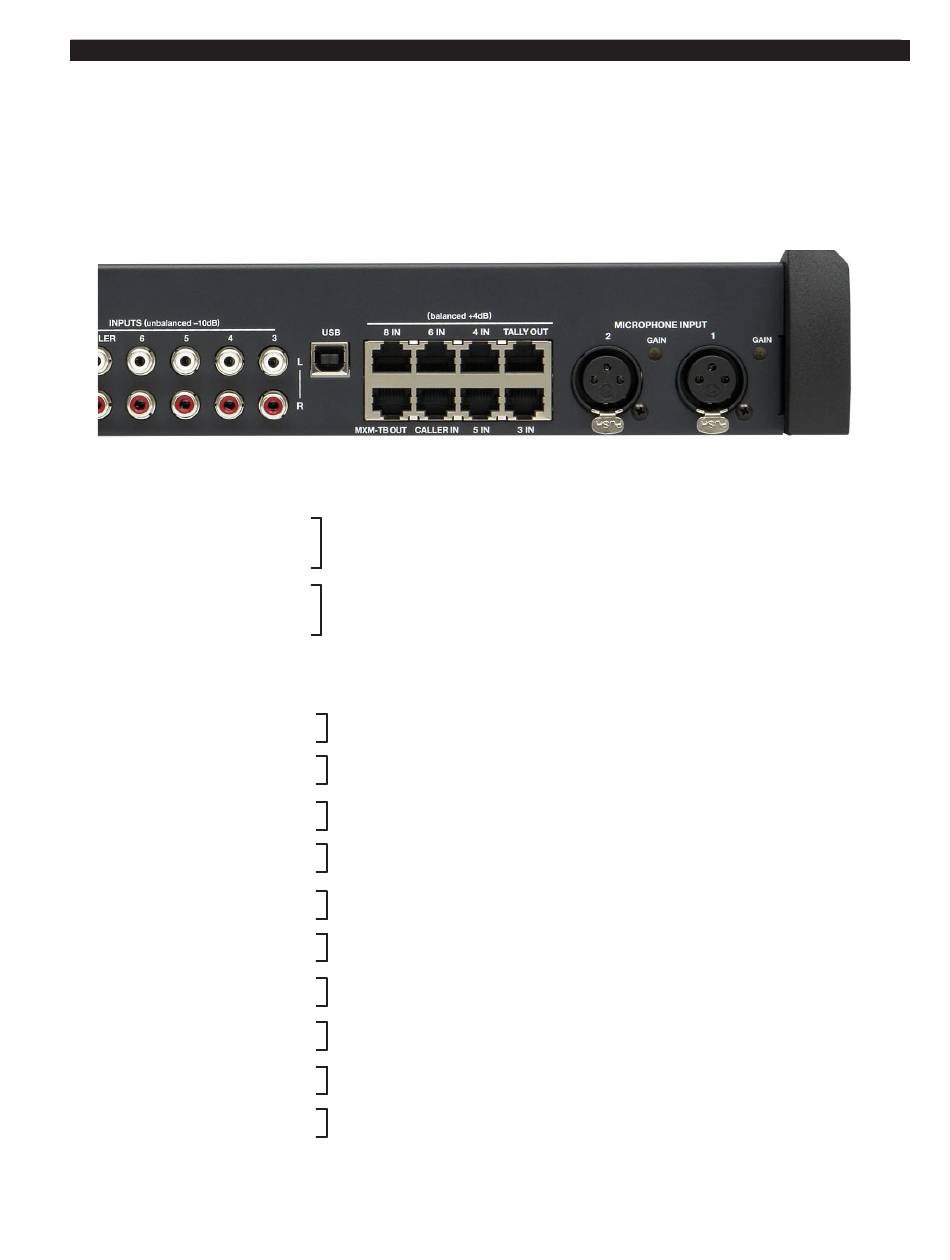

The rear of the console has multiple RJ-45 and RCA connectors to plug in four stereo line
inputs, caller and external inputs, as well as providing program, monitor, cue, MXM-TB, and
tally output connections. There are also two female XLR connectors provided for microphone
MIC 1 and MIC 2 inputs and two male XLR connectors for program output connection.
MIC 1 and MIC 2 Inputs – XLR
All signals are analog mono. The mic input level is normally -50dBu balanced.
XLR 1 Pin 1 – SH
XLR 1 Pin 2 – HI
XLR 1 Pin 3 – LO
XLR 2 Pin 1 – SH
XLR 2 Pin 2 – HI
XLR 2 Pin 3 – LO
LINE 3 IN through LINE 6 IN and LINE 8 IN – RJ-45
All signals are analog stereo. The line input level is normally +4dBu balanced.
RJ-45#3 Pin 1 – HI
RJ-45#3 Pin 2 – LO
RJ-45#3 Pin 3 – HI
RJ-45#3 Pin 6 – LO
RJ-45#4 Pin 1 – HI
RJ-45#4 Pin 2 – LO
RJ-45#4 Pin 3 – HI
RJ-45#4 Pin 6 – LO
RJ-45#5 Pin 1 – HI
RJ-45#5 Pin 2 – LO
RJ-45#5 Pin 3 – HI
RJ-45#5 Pin 6 – LO
RJ-45#6 Pin 1 – HI
RJ-45#6 Pin 2 – LO
RJ-45#6 Pin 3 – HI
RJ-45#6 Pin 6 – LO
RJ-45#8 Pin 1 – HI
RJ-45#8 Pin 2 – LO
RJ-45#8 Pin 3 – HI
RJ-45#8 Pin 6 – LO
Four pairs of RCA jacks (3 - 6) are for analog stereo unbalanced -10dBu signals. The
top RCA jack is Left and bottom RCA jack is Right for each channel.
AUDIOARTS 08 / Dec 2015
I N S T A L L A T I O N A N D P O W E R
Mic 1 In
Mic 2 In
Line 3 Lt In
Line 3 Rt In
Line 4 Lt In
Line 4 Rt In
Line 5 Lt In
Line 5 Rt In
Line 6 Lt In
Line 6 Rt In
Line 8 Lt In
Line 8 Rt In
page 1 – 6
