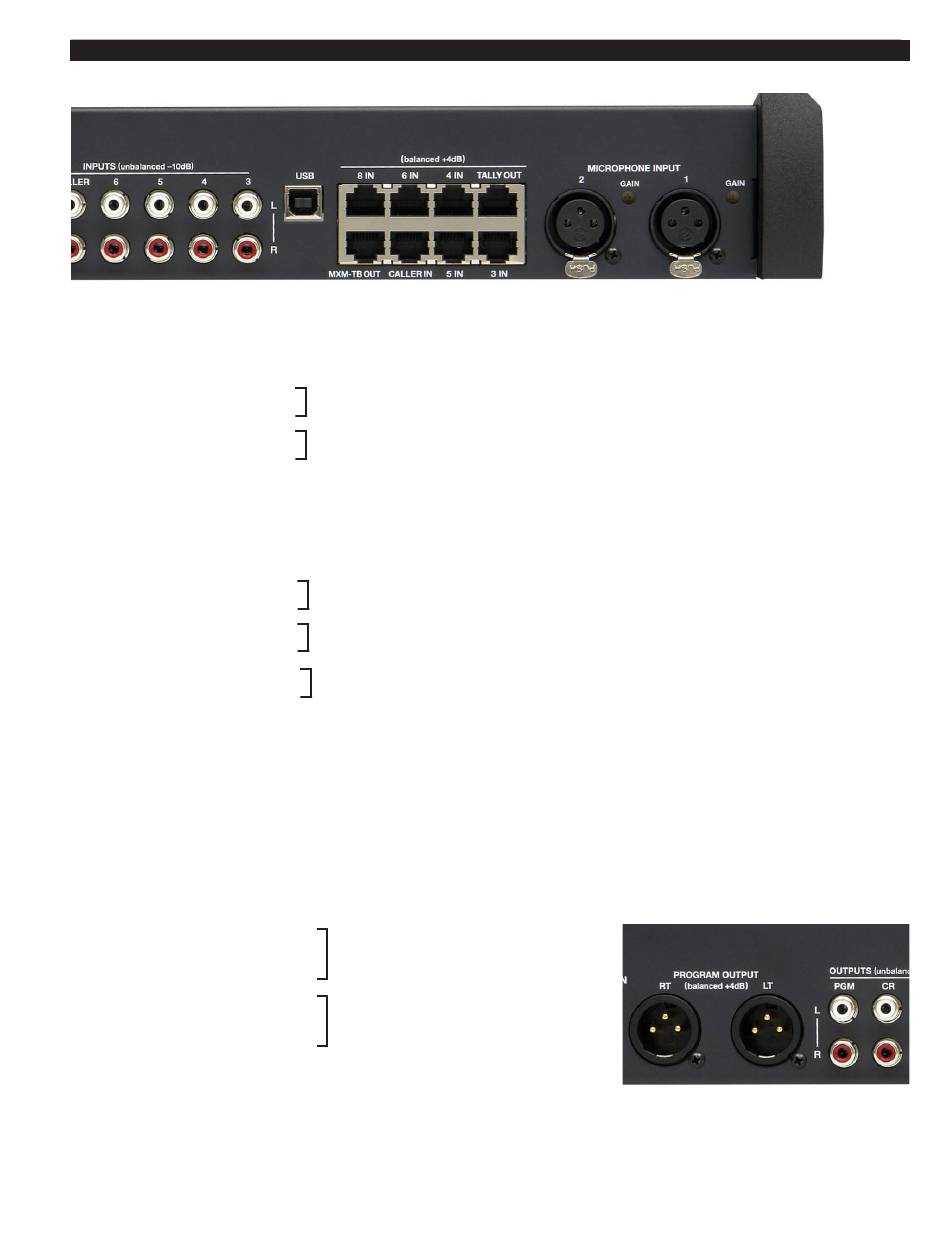

CALLER IN – RJ-45
The signal is analog stereo, +4dBu balanced.
RJ-45 Pin 1 – HI
RJ-45 Pin 2 – LO
RJ-45 Pin 3 – HI
RJ-45 Pin 6 – LO
MXM-TB OUT – RJ-45
The MXM signal is analog stereo and the TB signal is mono. Both signals are
+4dBu balanced.
RJ-45 Pin 1 – HI
RJ-45 Pin 2 – LO
RJ-45 Pin 3 – HI
RJ-45 Pin 6 – LO
RJ-45 Pin 7 – HI
RJ-45 Pin 8 – LO
TALLY OUT – RJ-45
Relay closure, 30VDC, 2A maximum.
RJ-45 Pin 4 – Tally N.O.
RJ-45 Pin 5 – Tally COM
PGM OUT – XLR
The signal is analog stereo, level is +4dBu balanced.
XLR LT Pin 1 – SH
XLR LT Pin 2 – HI
XLR LT Pin 3 – LO
XLR RT Pin 1 – SH
XLR RT Pin 2 – HI
XLR RT Pin 3 – LO
One pair of RCA jacks (PGM) is for analog stereo unbal-
anced -10dBu PGM Out signal. The top RCA jack is Left
and bottom RCA jack is Right for this output.
AUDIOARTS 08 / Dec 2015
I N S T A L L A T I O N A N D P O W E R
Caller Lt In
Caller Rt In
MXM Lt Out
MXM Rt Out
TB Out
PGM Lt Out
PGM Rt Out
NOTE:
If you are using this input with a
mono caller signal from a phone
hybrid you will need to wire to left
and right inputs in parallel.
page 1 – 7
