Hook-Ups

The rear of the console has multiple RCA connectors to plug in 24 stereo line
inputs, the external input, as well as providing studio, control room, and micro-

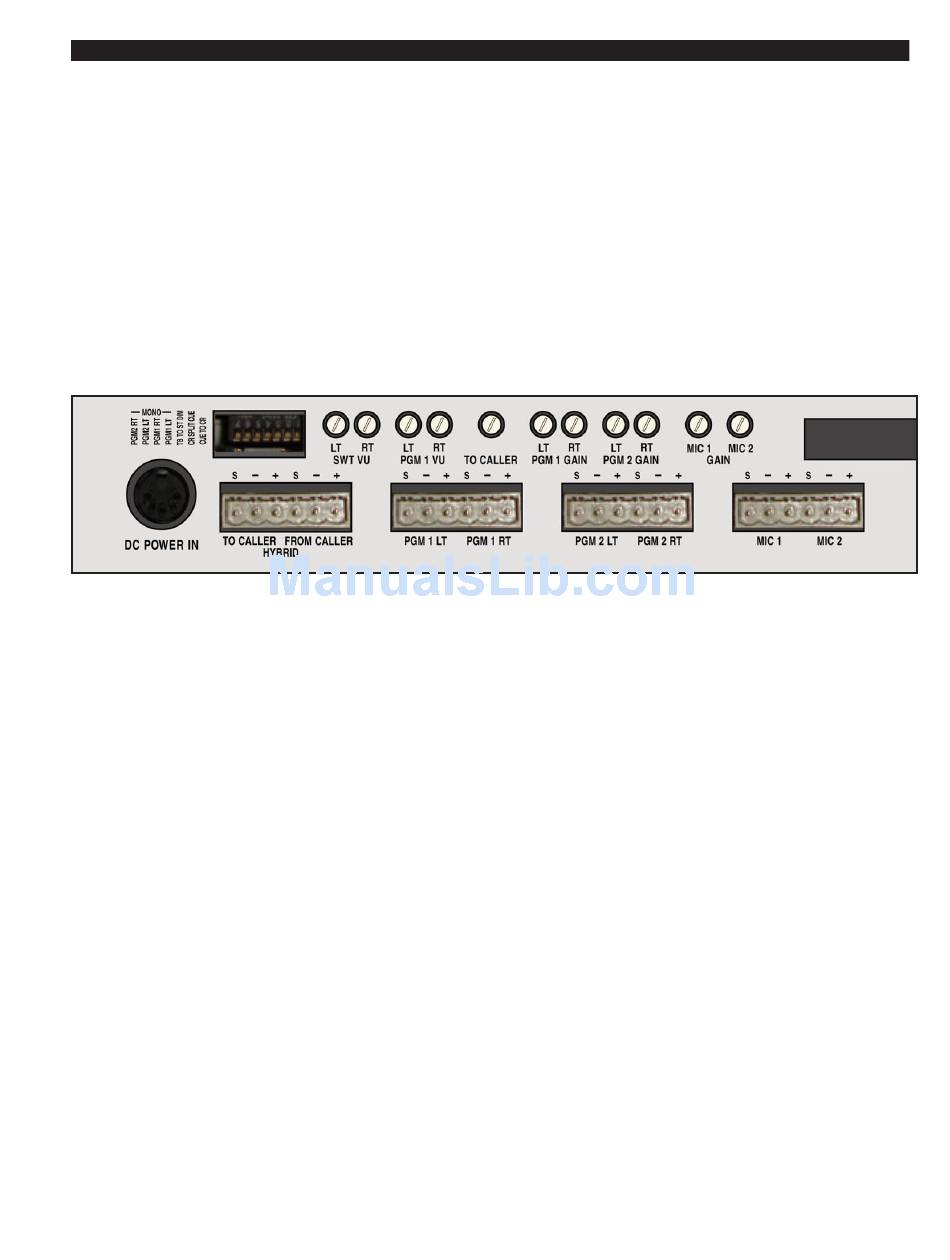

phone output connections. There are also four 6-pin plug terminals (CT5 - CT8, on
the CONA2-4 PCB) provided for microphone MIC 1 and MIC 2 inputs, PGM 1 and
PGM 2 outputs, and hybrid to and from caller connections.
A DB-25 is provided for control connections and for the Cue output.
Pinouts drawings on pages 1-9 and 1-10 show all wiring connection at glance.

Audio Connections - 6-pin Plug Terminals

MIC 1 and MIC 2 Connections (CT5)
All signals are analog mono. The mic input level is normally -50dBu balanced.
Pin 1 – Mic 1 In SH
Pin 2 – Mic 1 In LO
Pin 3 – Mic 1 In HI
Pin 4 – Mic 2 In SH
Pin 5 – Mic 2 In LO
Pin 6 – Mic 2 In HI
PGM 2 Connection (CT6)
The signals are analog stereo; level is +4dBu balanced.
Pin 1 – PGM 2 Lt Out SH
Pin 2 – PGM 2 Lt Out LO
Pin 3 – PGM 2 Lt Out HI
Pin 4 – PGM 2 Rt Out SH
Pin 5 – PGM 2 Rt Out LO
Pin 6 – PGM 2 Rt Out HI
PGM 1 Connection (CT7)
The signals are analog stereo; level is +4dBu balanced.
Pin 1 – PGM 1 Lt Out SH
Pin 2 – PGM 1 Lt Out LO
Pin 3 – PGM 1 Lt Out HI
Pin 4 – PGM 1 Rt Out SH
Pin 5 – PGM 1 Rt Out LO
Pin 6 – PGM 1 Rt Out HI
AIR-2+ / Mar 2008
AIR-2+ / Nov 2006
I N S T A L L A T I O N a n d P O W E R
These connections are to the
inputs of two internal mic pream-
plifiers. The outputs of the mic
preamplifiers must be con-
nected to the desired line inputs
before you will be able to hear
the microphones. See page 2-3
for details.
