IMScompact integrated measuring system
Position display (24 VDC)
Instructions
• Position display with signal input for 1 axis
• Input for IMScompact TTL
• Adjustable reference value, tool offset and saw blade thickness
• 7-digit LCD display, including sign and measuring units
• 2 configurable digital control inputs
• Data memory in case of power failure
R320103179/2019-12
EN
Advertisement
Table of Contents
Related Manuals for Bosch Rexroth IMScompact Position display
Summary of Contents for Bosch Rexroth IMScompact Position display

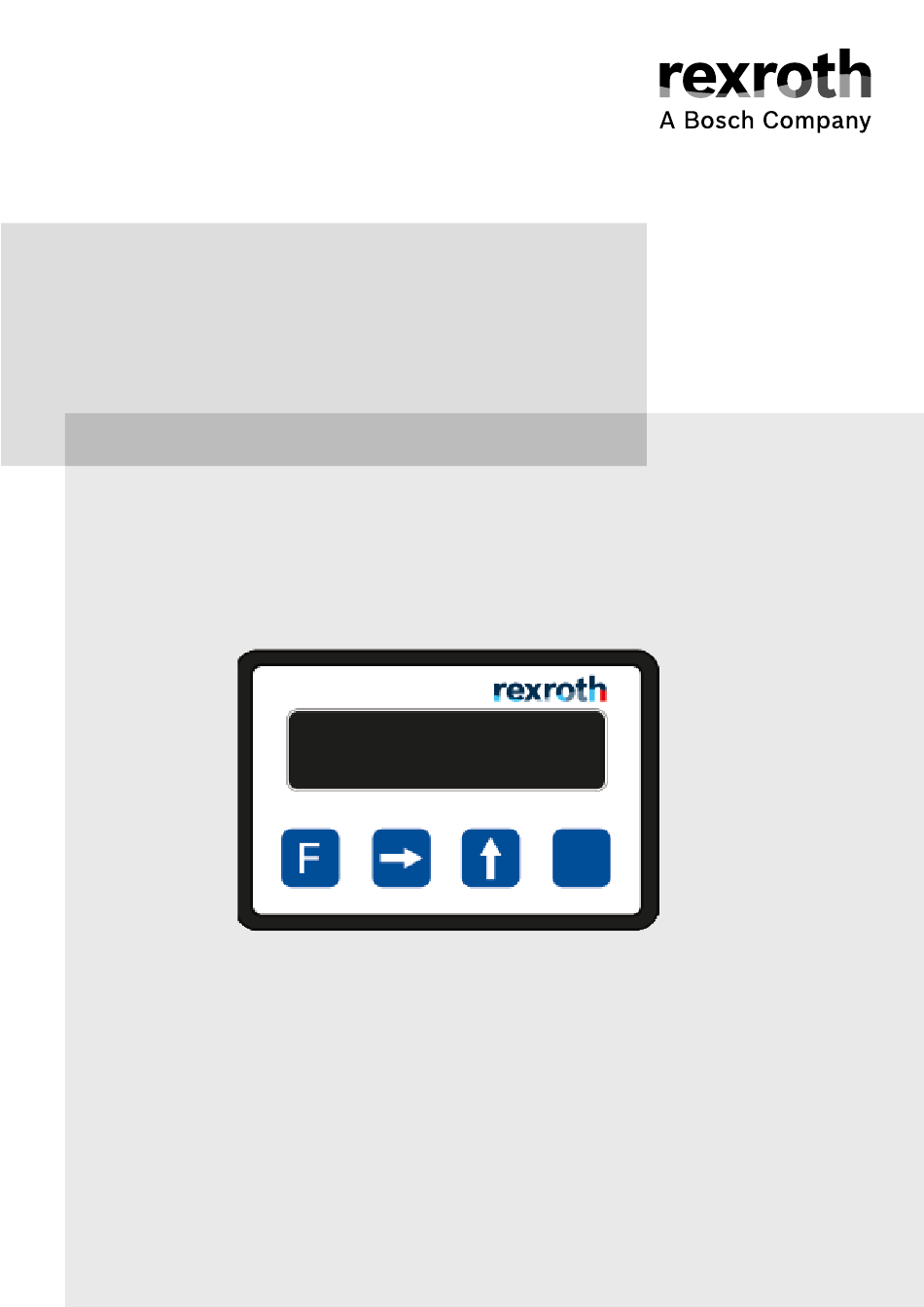

- Page 1 IMScompact integrated measuring system R320103179/2019-12 Position display (24 VDC) Instructions • Position display with signal input for 1 axis • Input for IMScompact TTL • Adjustable reference value, tool offset and saw blade thickness • 7-digit LCD display, including sign and measuring units •...
-
Page 2: Table Of Contents
2/18 Bosch Rexroth AG IMScompact position display | R320103179/2019-12 Contents 1 Contents ������������������������������������������������������������������������������������������������ 2 2 General information, safety, transport and storage ����������������������������� 3 2.1 Information on operating instructions ........... 3 2.2 Explanation of symbols ..............3 2.3 Warranty conditions ..............4 2.4 Disassembly and disposal ............. 4 2.5 General sources of danger ............ -
Page 3: General Information, Safety, Transport And Storage
R320103179/2019-12 | IMScompact position display Bosch Rexroth AG 3/18 General information, safety, transport and storage 2�1 Information on operating instructions These operating instructions provide important information on handling the device. For your own safety and operational safety, observe all warnings and notes! Observing the safety instructions and action instructions is crucial in order to ensure a safe work environment. -
Page 4: Warranty Conditions
4/18 Bosch Rexroth AG IMScompact position display | R320103179/2019-12 2�3 Warranty conditions The manufacturer guarantees the correct functioning of the process technology used and the specified performance parameters. 2�4 Disassembly and disposal If no return or disposal agreement was made, disassemble the device properly following the safety instructions in these operating instructions, and dispose of it in an environmentally-friendly manner. Before disassembly: Switch off the power supply and protect it against being switched on again. -
Page 5: Intended Use
R320103179/2019-12 | IMScompact position display Bosch Rexroth AG 5/18 2�7 Intended use The position display is designed for the intended application described here only: The position display serves for visualization of positions, lengths, pulses or angular degrees only. WARNING! Danger through improper use! Any use other than for the intended purpose and/or other type of use of the device can lead to dangerous situations. Therefore: •... -
Page 6: Product Features
6/18 Bosch Rexroth AG IMScompact position display | R320103179/2019-12 Product features 3�1 General information Fig� 1: Position display The compact position display has a 10 mm high LCD display which allows a comfortable and accurate reading of the actual position. It can be set to or to an arbitrary reference value via the dust-proof front keypad or external signals. NOTE! In a de-energized state, movements or displacements of the measuring system or the encoder cannot be detected! With incremental measuring systems, a referencing procedure must be performed after activation of the supply voltage. -
Page 7: Dimensions
R320103179/2019-12 | IMScompact position display Bosch Rexroth AG 7/18 4�2 Dimensions Seal Seal Fig� 2: Dimensions 4�3 Technical data Table 1: Technical data Power supply voltage 24 V DC +/- 20 % Current consumption 25 mA (without measuring system) Reverse polarity protection Encoder supply 24 V DC Load-carrying capacity by max. 300 mA measuring system LCD display 7 decade counters, character height 10 mm, including sign and measuring units Perspective... -
Page 8: Installation And Initial Commissioning
8/18 Bosch Rexroth AG IMScompact position display | R320103179/2019-12 Installation and initial commissioning NOTE Please read the operating instructions carefully before commissioning the device! Notes on installation must be observed! In case of damage caused by non-observance of these operating instructions, the warranty expires. Rexroth shall assume no liability for consequential damages! We also do not assume any liability for personal injury, damage to property or financial losses! The operator must take and implement appropriate security-relevant measures. -
Page 9: Design And Function
R320103179/2019-12 | IMScompact position display Bosch Rexroth AG 9/18 Design and function The position display has 4 front-panel keys. The figure shows the respective basic functions: Function key Menu navigation for parameter level Switching between relative / absolute dimension Fig� 3: Design and function The functions and key combinations are described in detail in section 6.3. 6�1 External inputs The device has 2 digital control inputs that can be connected via the 8-pin RIA connector S1. The external input 1 is adjustable. It can be programed by using parameter P19 "level-sensitive" or "edge-sensitive". -
Page 10: Key Functions
10/18 Bosch Rexroth AG IMScompact position display | R320103179/2019-12 6�3 Key functions The operation of the device is divided into 2 levels: • Parameter level: For configuration of all operating parameters ( 7). • User level: Allows access to the basic functions of the unit (depending on software version). All entries are made exclusively via the 4 front-panel keys or various key combinations. Table 2: Key functions Regular mode: Incr / Press shortly = switching from absolute to incremental dimension Press shortly = activate tool offset (in absolute mode) An activated tool offset is indicated by the digit "1" in the upper display frame. -
Page 11: Parameter Level
R320103179/2019-12 | IMScompact position display Bosch Rexroth AG 11/18 Parameter level This section describes the available parameters and their configuration options. A parameter list for a quick overview of all parameters can be found in the next chapter ( 8). Customer-specific settings can be added there. Table 3: Parameters Parameters Configuration options P01: Counting direction Change of the counting direction. (0: forwards, 1: backwards) P02: Display measurement unit Display of the measurement unit. -
Page 12: Parameter List
12/18 Bosch Rexroth AG IMScompact position display | R320103179/2019-12 Parameter list Table 4: Parameter list Par� no� Function Default setting Description Customer settings for IMSc TTL10 µm Counting direction forwards Display measurement unit Decimal point 1 decimal place Reserve Keyboard lock deactivated Edge evaluation 1 edge Measuring system selection... -
Page 13: Terminal Assignment
R320103179/2019-12 | IMScompact position display Bosch Rexroth AG 13/18 Terminal assignment Fig� 4: Terminal assignment: left: position display; right: D-SUB-Breakout Box Table 5: Terminal assignment Connector S1: 8-pin RIA connector Terminal Function 0 V / GND (encoder supply output) +24 V DC (encoder supply output) HTL channel A HTL channel B External input 1 (24 V-PNP) External input 2 (24 V-PNP) 0 V / GND (power supply input) +24 V DC (power supply input) Connector S2: 9-pin D-SUB female connector / 5 V-TTL inputs Terminal assignment for single wires to D-SUB-Breakout Box Function Wire color Klemme 0 V / GND (encoder supply output) Blue +24 V DC (encoder supply output) TTL channel A+ (5 V level only) Green TTL channel B+ (5 V level only) Brown TTL channel A- (5 V level only) -
Page 14: 10 Operational Disruptions, Maintenance, Cleaning
14/18 Bosch Rexroth AG IMScompact position display | R320103179/2019-12 10 Operational disruptions, maintenance, cleaning This chapter describes possible causes for faults and measures for elimination. In case of increasingly occurring faults, please observe the measures for fault clearance described in section 10.1. If faults cannot be eliminated with the following notes or measures, please contact the manufacturer (see second page). 10�1 Measures for fault clearance CAUTION! The device, connection lines and signal cables must not be installed close to interference sources which have strong inductive or capacitive interference or strong electrostatic fields. -
Page 15: Possible Errors And Their Correction
R320103179/2019-12 | IMScompact position display Bosch Rexroth AG 15/18 10�2 Possible errors and their correction The following table shows possible errors and their correction. Table 6: Error messages and their correction Error number Error description Error correction "Err 110" Data storage error Switch the device off and on again. If the error occurs again, return the device for repair. -
Page 16: 11 Type Designation
16/18 Bosch Rexroth AG IMScompact position display | R320103179/2019-12 11 Type designation Bosch Rexroth AG Made in Germany MNR: R051704163 FD: 211 S/N: 2598783 TYP:DIGITAL DISPLAY TTL Fig� 5: Type designation 1 Material number 2 Serial number 3 Type designation 4 CE mark 5 RoHS 6 Department/factory number... - Page 17 R320103179/2019-12 | IMScompact position display Bosch Rexroth AG 17/18...
- Page 18 Bosch Rexroth AG Ernst-Sachs-Straße 100 97424 Schweinfurt, Germany Phone +49 9721 937-0 www.boschrexroth.com Find your local contact person here: www.boschrexroth.com/contact Subject to technical modifications These instructions are only available as a PDF R320103179/2019-12...
