Massoth DiMAX Operation page 5

Switches:
To Individually Alter The Direction of Dead End Siding Switches #3 and #4:
Press the M1 button until "Switch
Command" (Switch
Secondary Function area. Enter the
Number of the individual switch, and
press the Left or Right Secondary
Function arrow keys to trigger the
switch. Verify visually the switch
position.
Secondary Function Keys
----------------------------------------------------------------------------------------------
To Individually Alter The Direction of Bypass Siding Switch
Route #1 (Switches #1 & #2) or Route #2 (Switches #5 & #6):
Press the M1 button until
shows in the Secondary Function area.
Enter the number of the desired
switchroute, and press the Left or Right
Secondary Function arrow keys to
trigger both switches in the route. Verify
visually the position of BOTH switches.
Switch #4
Switch #3
Comm.) shows in the
"Switchroute"

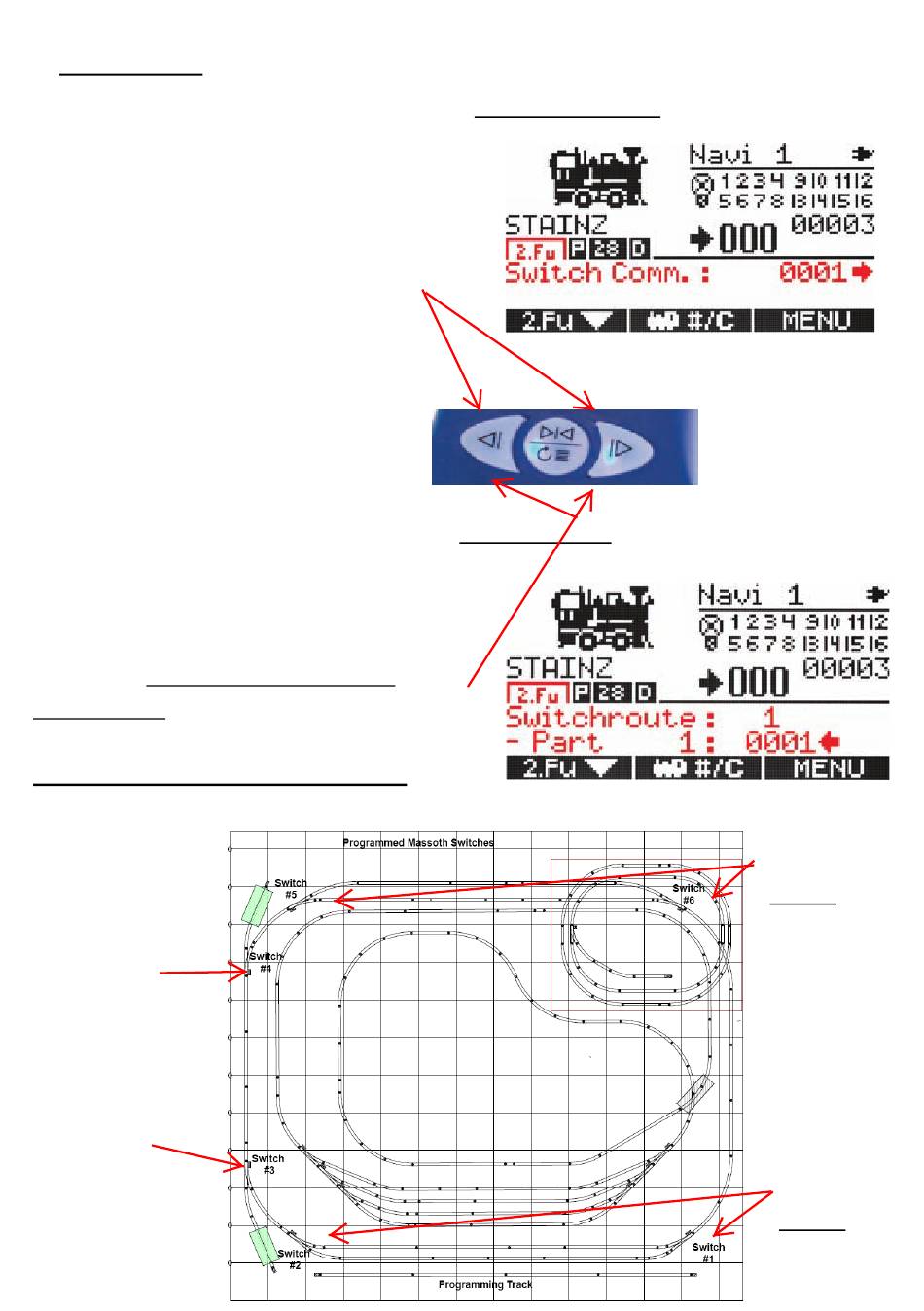

Switch Turnout Screen
Switch Turnout
Page 5 of 6
Routes -
Route Screen
Switch
Route #2
(Sw 5 & 6)
Switch
Route #1
(Sw 1 & 2)
