Emergency Stop - Massoth DiMAX Operation

Selection 2. Function

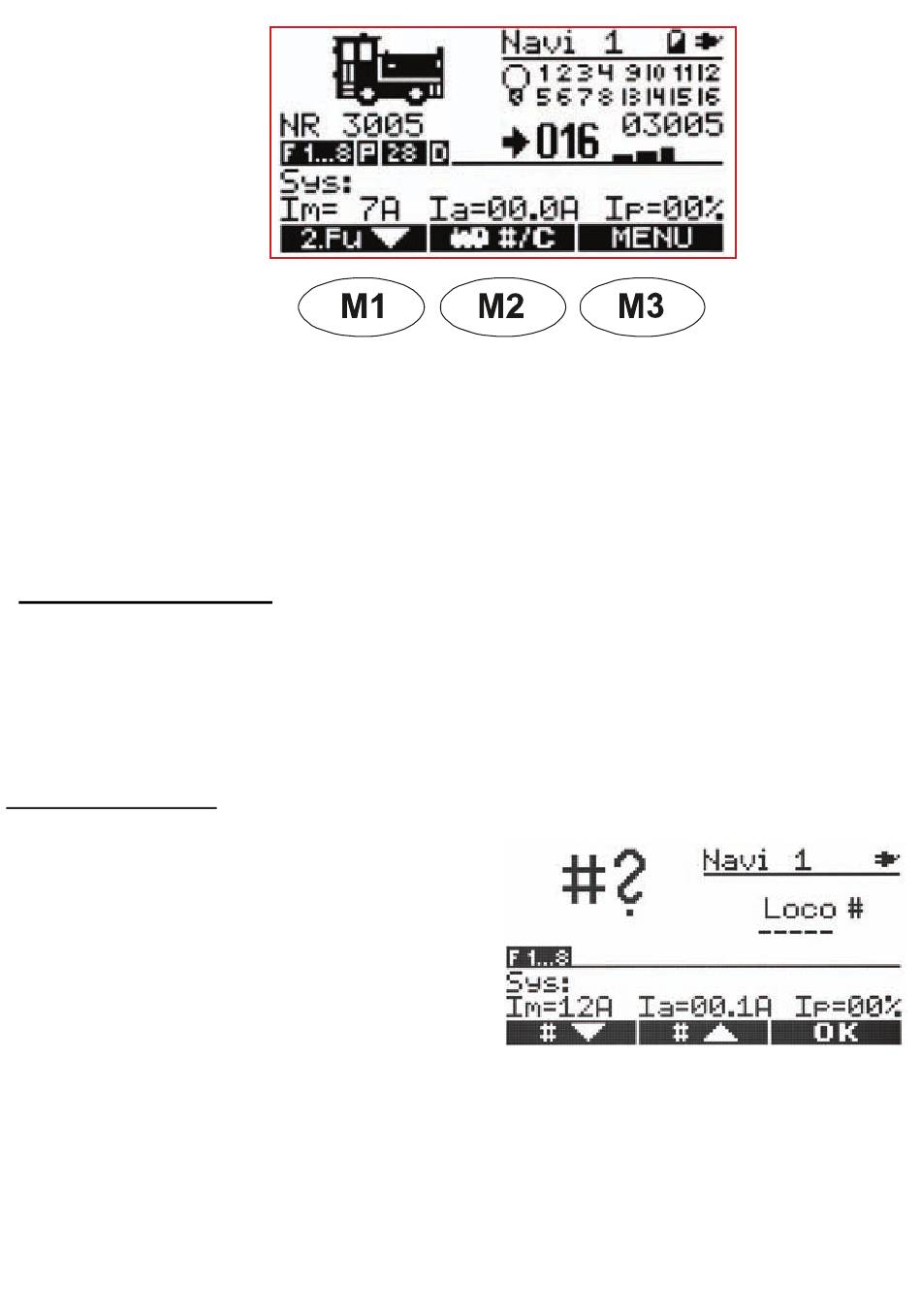

Illustration #5: The menu bar shows the function assigned to the keys M1, M2 & M3.
-----------------------------------------------------------------------------------------
The keyboard numers are used for main and auxiliary functions. Switching
between the main function display and the auxiliary function display:
- F: Assigns functions from F1-F8 to F9-F16, etc.)
- M1: Keyboard is assigned to auxiliary functions.

EMERGENCY STOP:

- RIGHT STOP Key triggers Emergency-Stop and cuts current to the track
immediately, both STOP keys will flash & the auxiliary display will show
"STOP" as a system message.
- LEFT STOP Key RELEASES the Emergency-Stop.
------------------------------------------------------------------------------------------
Loco Operation
Press M2 to enter the loco selection mode and
enter a loco address. Confirm with M3.
The selected locomotive may now be run
with the dial knob. Turning the knob right
& left controls direction/speed of the loco.
If the knob is in centered position the loco
stands still ("speed step 000" is shown in
the display). The loco direction is shown
with arrows in front of the speed steps.
Function Key #9 (lower left side) triggers the light function of the assigned
locomotive.
Functions are triggered with the keys F1 to F8. Press the F key to
switch the function layers from F1...F8 to F9...F16 and back again.
Change Loco and/or Configuration
:
Main Menu
Loco Selection Screen
