Battery Condition - Massoth DiMAX Operation

Display

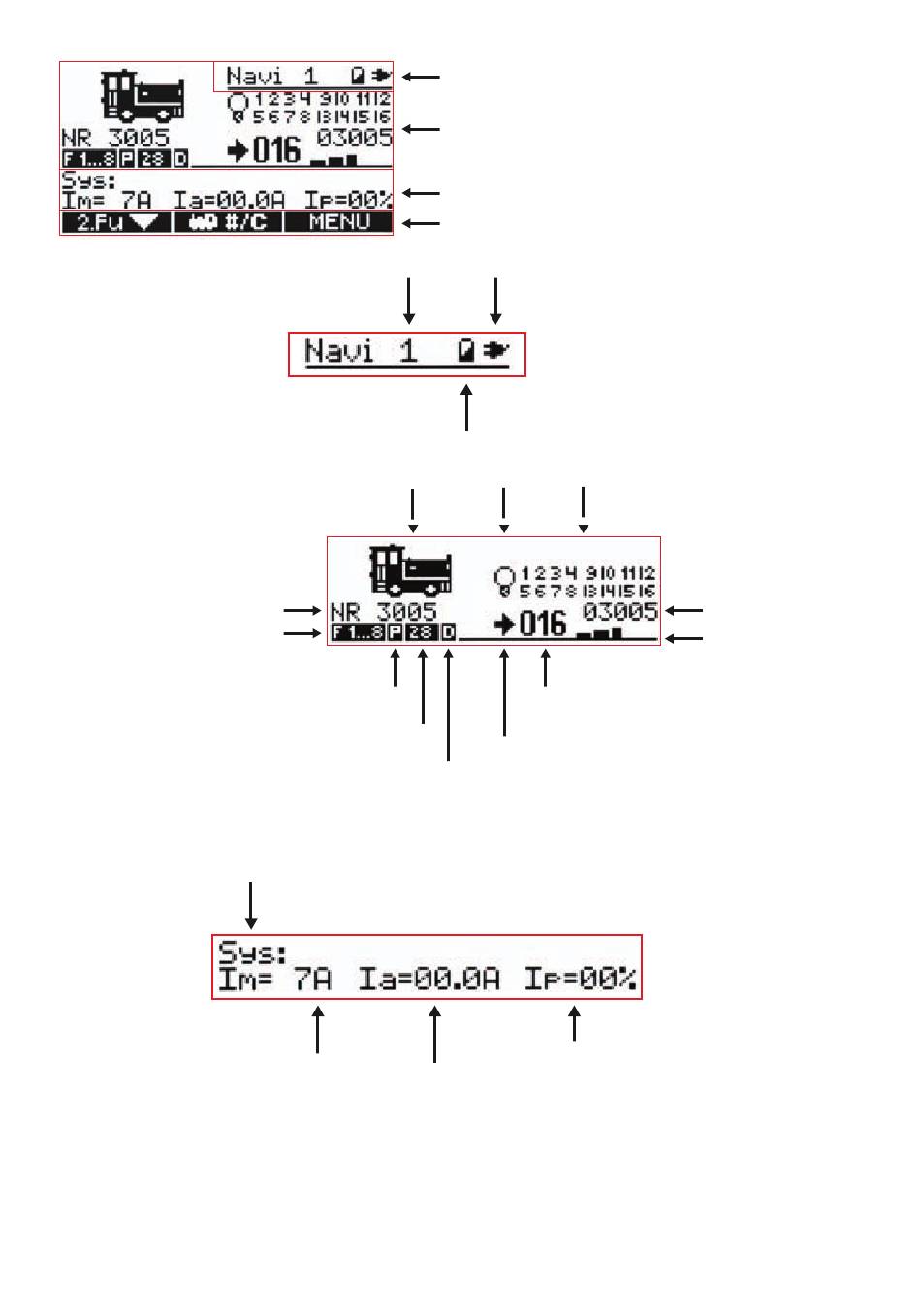

Illustration #2: Status bar shows Navigator ID, Battery state & operation mode.
----------------------------------------------------------------------------------------
Function level
Illustration #3: The main function array describes the selected locomotive and its status.
-----------------------------------------------------------------------------------------
Current Setting Limit.
Illustration #4: Auxiliary function array shows system details in standard operation mode.
Navigator ID
Loco symbol
Loco name
Operation mode
Speed steps
DCC Protocol
System Messages
Status bar
Main function array
Auxiliary function array
Menu assignment
Wired-/ RC mode

Battery Condition

Light
Function display
Actual speed steps
Direction
Current Load in percent of Limit.
Actual Current Being Used.
Page 2 of 6
Loco address
Actual speed graph
