Application; Construction; Explanation Of The Type Plate - Metasys COMPACT Dynamic Equipment Logbook Assembly, Operation And Maintenance

Application  Construction  Explanation of the type plate
Practice personnel, technicians
EN
1
2
3.2
3.3
METASYS Medizintechnik GmbH, Florianistr. 3
3.5
6063 Rum bei Innsbruck, Austria
3
4
C O M PA C T
D y n a m i c
U n = 24 V AC, ~50/60 Hz
P max = 100 VA
V max = 4,5 l/min
Z-64.1-2
9876 CD - 123456
Made in Austria

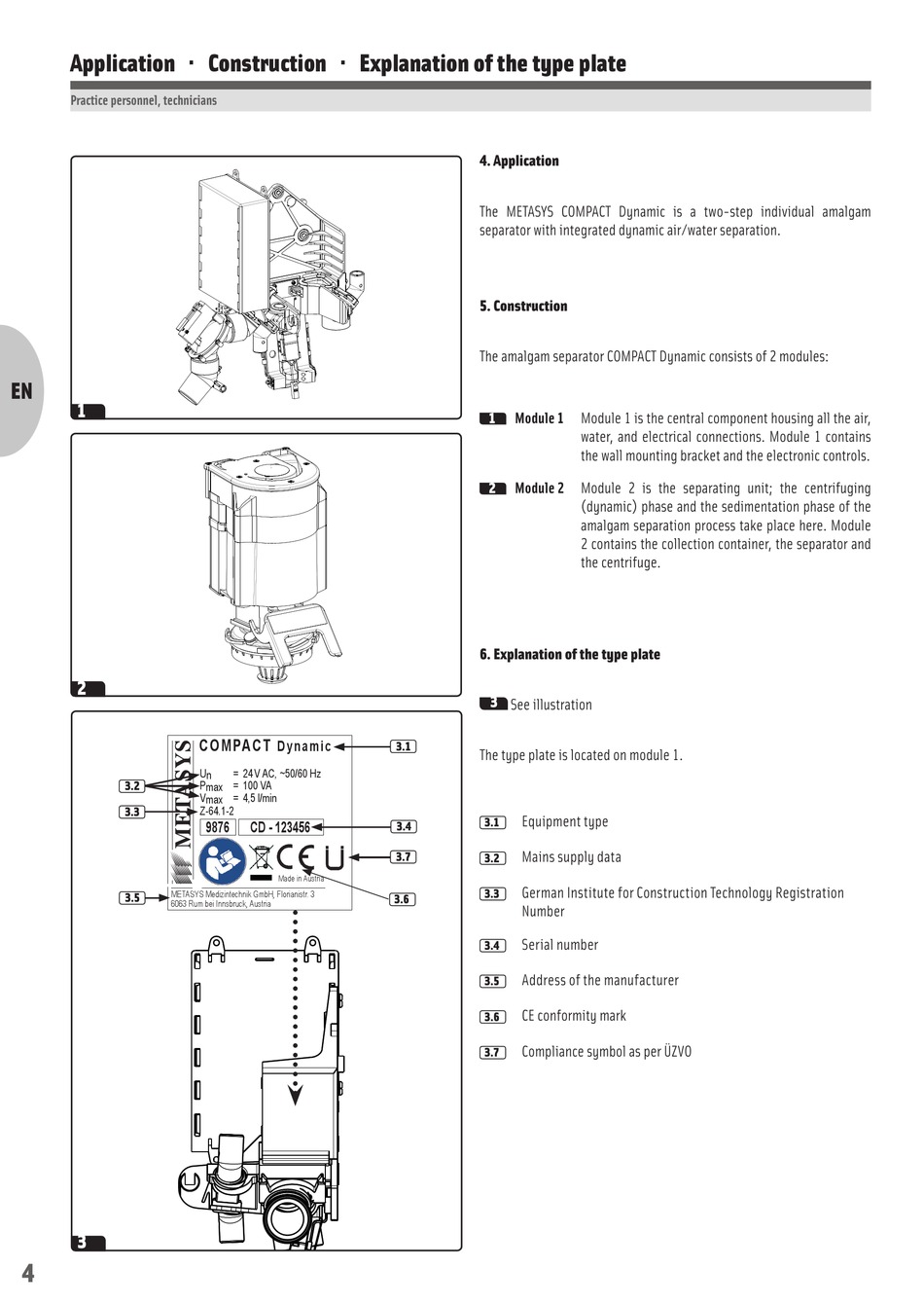

4. Application

The METASYS COMPACT Dynamic is a two-step individual amalgam
separator with integrated dynamic air/water separation.

5. Construction

The amalgam separator COMPACT Dynamic consists of 2 modules:
1 Module 1
2 Module 2

6. Explanation of the type plate

3
See illustration
3.1
The type plate is located on module 1.
Equipment type
3.1
3.4
Mains supply data
3.7
3.2
German Institute for Construction Technology Registration
3.3
3.6
Number
Serial number
3.4
Address of the manufacturer
3.5
CE conformity mark
3.6
Compliance symbol as per ÜZVO
3.7
Module 1 is the central component housing all the air,
water, and electrical connections. Module 1 contains
the wall mounting bracket and the electronic controls.
Module 2 is the separating unit; the centrifuging
(dynamic) phase and the sedimentation phase of the
amalgam separation process take place here. Module
2 contains the collection container, the separator and
the centrifuge.
