Service mode

Practice personnel, technicians

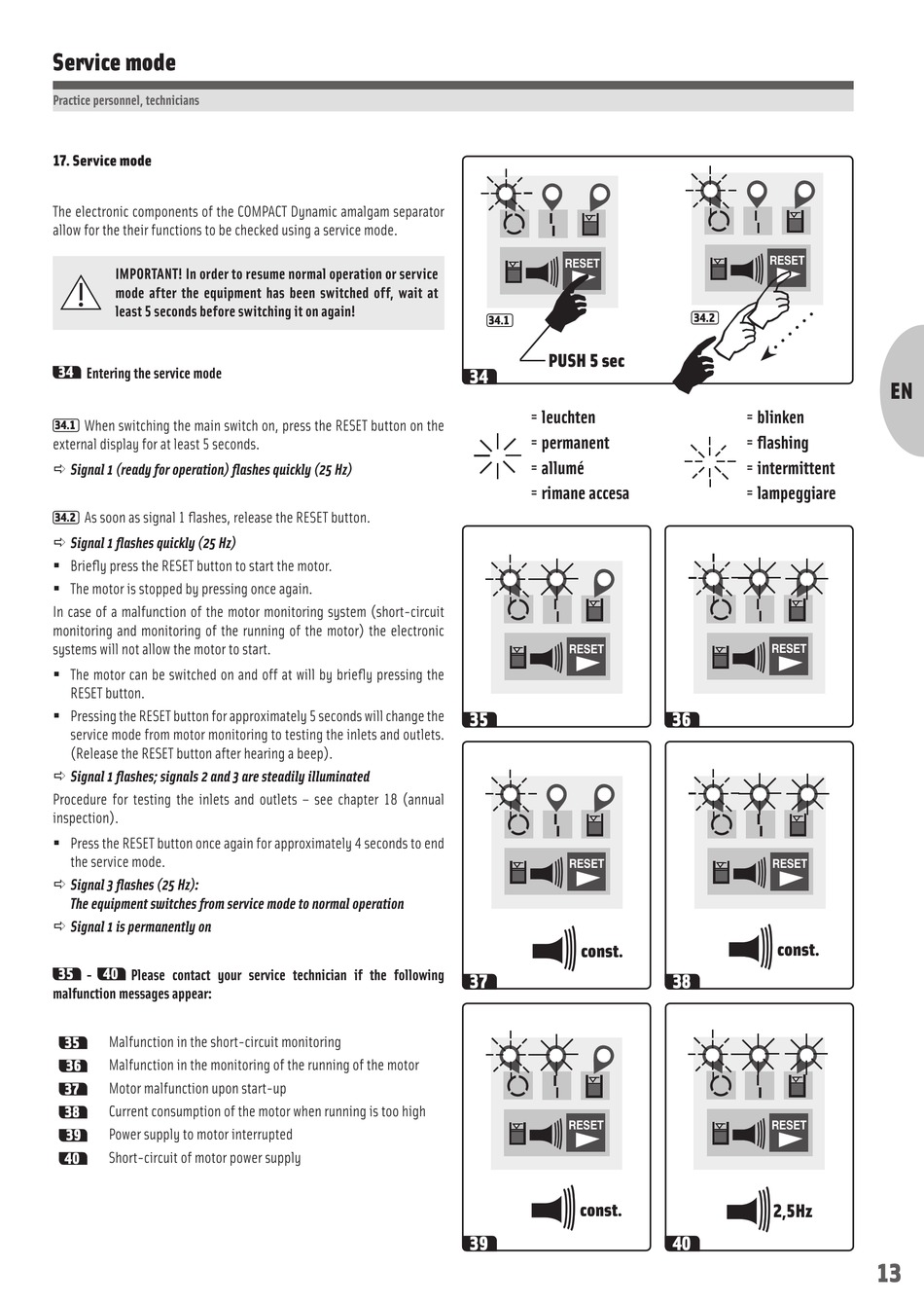

17. Service mode
The electronic components of the COMPACT Dynamic amalgam separator
allow for the their functions to be checked using a service mode.
IMPORTANT! In order to resume normal operation or service
mode after the equipment has been switched off, wait at
least 5 seconds before switching it on again!
34
Entering the service mode
When switching the main switch on, press the RESET button on the
34.1
external display for at least 5 seconds.
Ö Signal 1 (ready for operation) flashes quickly (25 Hz)
As soon as signal 1 flashes, release the RESET button.
34.2
Ö Signal 1 flashes quickly (25 Hz)
ƒ Briefly press the RESET button to start the motor.
ƒ The motor is stopped by pressing once again.
In case of a malfunction of the motor monitoring system (short-circuit
monitoring and monitoring of the running of the motor) the electronic
systems will not allow the motor to start.
ƒ The motor can be switched on and off at will by briefly pressing the
RESET button.
ƒ Pressing the RESET button for approximately 5 seconds will change the
service mode from motor monitoring to testing the inlets and outlets.
(Release the RESET button after hearing a beep).
Ö Signal 1 flashes; signals 2 and 3 are steadily illuminated
Procedure for testing the inlets and outlets – see chapter 18 (annual
inspection).
ƒ Press the RESET button once again for approximately 4 seconds to end
the service mode.
Ö Signal 3 flashes (25 Hz):
The equipment switches from service mode to normal operation
Ö Signal 1 is permanently on
35 40
- Please contact your service technician if the following
malfunction messages appear:
35 Malfunction in the short-circuit monitoring
36 Malfunction in the monitoring of the running of the motor
37 Motor malfunction upon start-up
38
Current consumption of the motor when running is too high
39 Power supply to motor interrupted
40 Short-circuit of motor power supply
RESET
34.1
PUSH 5 sec
34
= leuchten
= permanent
= allumé
= rimane accesa
RESET
35
RESET
const.
37
RESET
const.
39
RESET
34.2
= blinken
= flashing
= intermittent
= lampeggiare
RESET
36
RESET
const.
38
RESET
2,5Hz
40
