Separierautomatik
MULTI SYSTEM TYP 1 ECO
Gerätedokument
Einbau, Betrieb und Wartung
Automatic separator
MULTI SYSTEM TYP 1 ECO
EN
Equipment Logbook
Assembly, operation and maintenance
Séparateur automatique
MULTI SYSTEM TYP 1 ECO
Livret d'appareil
Installation, fonctionnement et entretien
Separatore automatico
MULTI SYSTEM TYP 1 ECO
Verbale d'installazione
Montaggio, funzionamento e manutenzione
MS T 1
ECO
Advertisement
Table of Contents
Related Manuals for Metasys MST 1 ECO
Summary of Contents for Metasys MST 1 ECO
- Page 1 Separierautomatik MULTI SYSTEM TYP 1 ECO Gerätedokument Einbau, Betrieb und Wartung Automatic separator MULTI SYSTEM TYP 1 ECO Equipment Logbook Assembly, operation and maintenance Séparateur automatique MULTI SYSTEM TYP 1 ECO Livret d’appareil Installation, fonctionnement et entretien Separatore automatico MULTI SYSTEM TYP 1 ECO Verbale d’installazione Montaggio, funzionamento e manutenzione MS T 1...
-
Page 2: Table Of Contents
Index Explanation of the pictograms Practice personnel, technicians 1. Index The header on each page defines the user group particular information is aimed at. Chapter Page Index Explanation of the pictograms General information Application Construction Explanation of the type plate Technical data Functional description Installation options... -
Page 3: General Information
MULTI SYSTEM 1 ECO are followed. ƒ After commissioning, complete the proof of installation at the front page of this manual and send this to METASYS in order to define the warranty period. ƒ All inspection and service work must be entered into the device docu- mentation at the first pages of this manual ƒ... -
Page 4: Application

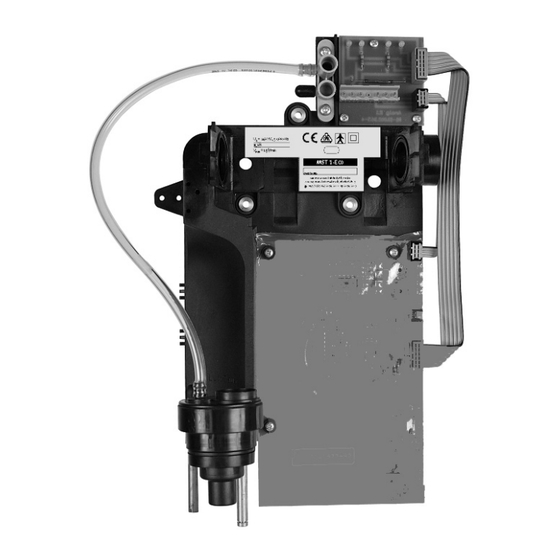

Application Construction Explanation of the type plate Practice personnel, technicians 4. Application MULTI SYSTEM TYP 1 ECO (abbreviated: MST 1 ECO) is a single unit, auto- matic air/water separator with integrated heavy parts collector and place selection valve. -
Page 5: Technical Data
Technical data Functional description Practice personnel, technicians 7. Technical data Power supply 24 V AC Frequency 50/60 Hz Max. current consumption 1,5 A Max. power input 15 VA Low pressure range 50 mbar - 250 mbar Collection container volume 300 cm Max. -
Page 6: Installation Options
Installation behind the patient’s head (12 o’clock) If there is no spittoon in the treatment area and the suction system is located behind the head of the patient, then the MST 1 ECO can be installed inside a cabinet. In this case the connection to the spittoon must be closed with a sealing plug. -
Page 7: Connections
1 mm must be installed on the suction side of the separator! Hose connections The hose connections leading to the MST 1 ECO must be kept as short as possible to prevent pre-sedimentation. Dirty dental hoses must be replaced during installation and must be disposed of through DENTAL ECO SERVICE. -
Page 8: Description Of The Internal Display
The pump in module 2 is triggered. 13. Full system conversion Using the conversion kit (order no. 40050009) it it possible to upgrade the automatic separator MST 1 ECO to the full- featured amalgam separator MST 1 (see illustration): ƒ Unlock and pull out module 2 ƒ... -
Page 9: Replacement Of The Collection Container
Replacement of the collection container Practice personnel, technicians 15. Replacement of the collection container Switch off the main switch of the unit! Wear protective gloves! ƒ Prepare a new collection container and take out the enclosed disin- fectant bag! ƒ Remove the lid of the treatment unit. Turn the locking bracket upwards. -
Page 10: Disposal Of The Full Container
The full amalgam separator can be disposed of at the in-house recycling company DENTAL ECO SERVICE - METASYS Group. Certifi cates of recycling need to be stored according to national law. When the whole amalgam separator is disassembled at the end of its operational life, it must be returned to the manufacturer for orderly disposal. -
Page 11: Maintenance, Cleaning And Disinfection
The prefilter must be emptied and cleaned at least once a week. This may also be carried out daily, depending on workload. See illustration The amalgam residue from the prefilter box must be collected in the METASYS ECO CENTER and disposed of properly with ECO TRANSFORM. www.youtube.com/user/METASYSMedizintech... - Page 12 METASYS ... makes the difference! Visit us at: METASYS Medizintechnik GmbH Florianistraße 3, 6063 Rum bei Innsbruck, Austria 1 +43 512 205420 | 5 +43 512 205420 7 www.metasys.com | info@metasys.com GERMANY FRANCE ITALY +49 8823 938 44 33 +33 4 37 90 22 15 +39 045 981 4477 info@metasys.com...
