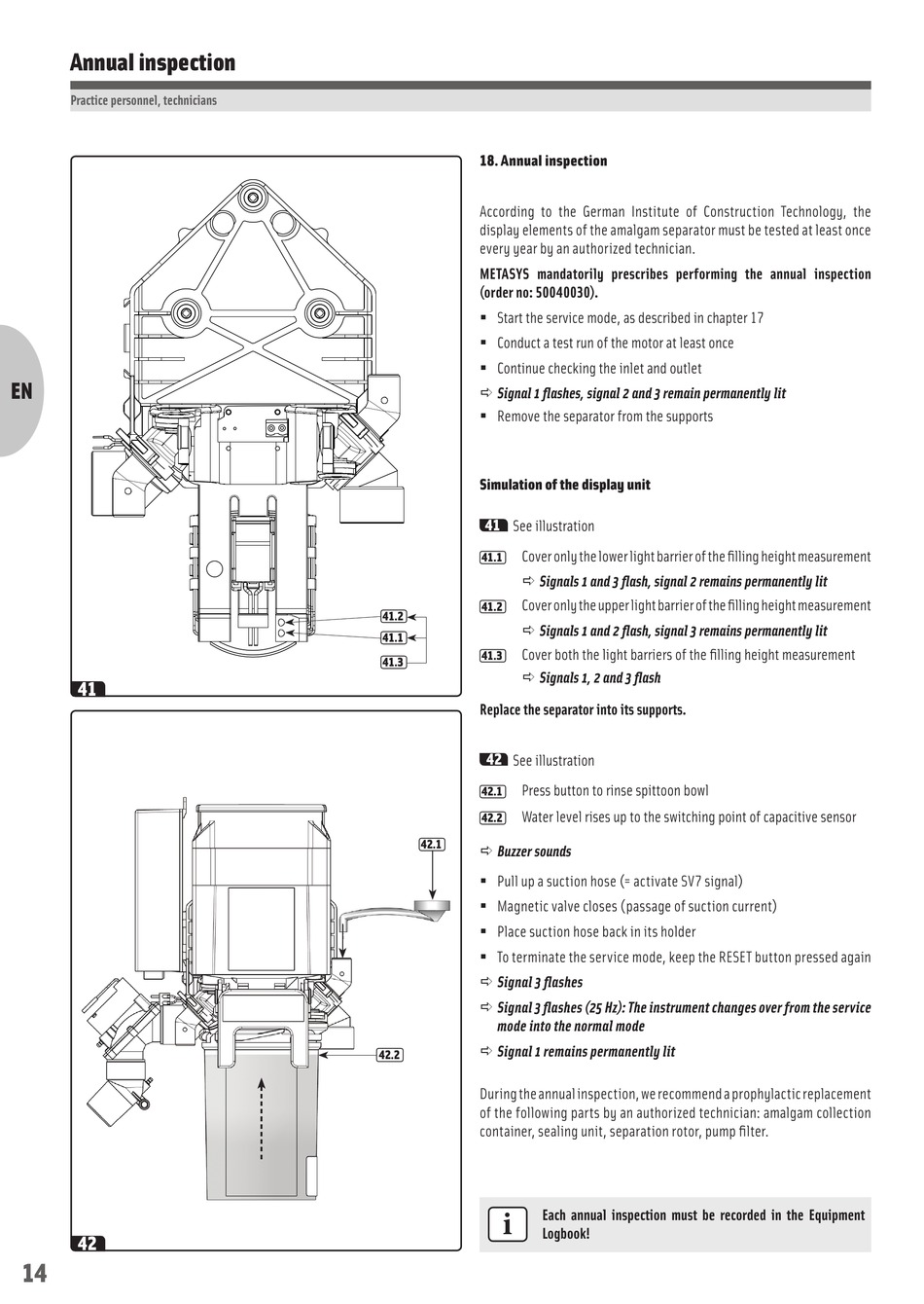

18. Annual inspection
According to the German Institute of Construction Technology, the
display elements of the amalgam separator must be tested at least once
every year by an authorized technician.
METASYS mandatorily prescribes performing the annual inspection
(order no: 50040030).
ƒ Start the service mode, as described in chapter 17
ƒ Conduct a test run of the motor at least once
ƒ Continue checking the inlet and outlet
Ö Signal 1 flashes, signal 2 and 3 remain permanently lit
ƒ Remove the separator from the supports
Simulation of the display unit
41
See illustration
Cover only the lower light barrier of the filling height measurement
41.1
Ö Signals 1 and 3 flash, signal 2 remains permanently lit
Cover only the upper light barrier of the filling height measurement
41.2
41.2
Ö Signals 1 and 2 flash, signal 3 remains permanently lit
41.1
Cover both the light barriers of the filling height measurement
41.3
41.3
Ö Signals 1, 2 and 3 flash
Replace the separator into its supports.
42
See illustration
Press button to rinse spittoon bowl
42.1
Water level rises up to the switching point of capacitive sensor
42.2
42.1
Ö Buzzer sounds
ƒ Pull up a suction hose (= activate SV7 signal)
ƒ Magnetic valve closes (passage of suction current)
ƒ Place suction hose back in its holder
ƒ To terminate the service mode, keep the RESET button pressed again
Ö Signal 3 flashes
Ö Signal 3 flashes (25 Hz): The instrument changes over from the service
mode into the normal mode
Ö Signal 1 remains permanently lit
42.2
During the annual inspection, we recommend a prophylactic replacement
of the following parts by an authorized technician: amalgam collection
container, sealing unit, separation rotor, pump filter.
i
Each annual inspection must be recorded in the Equipment
Logbook!
