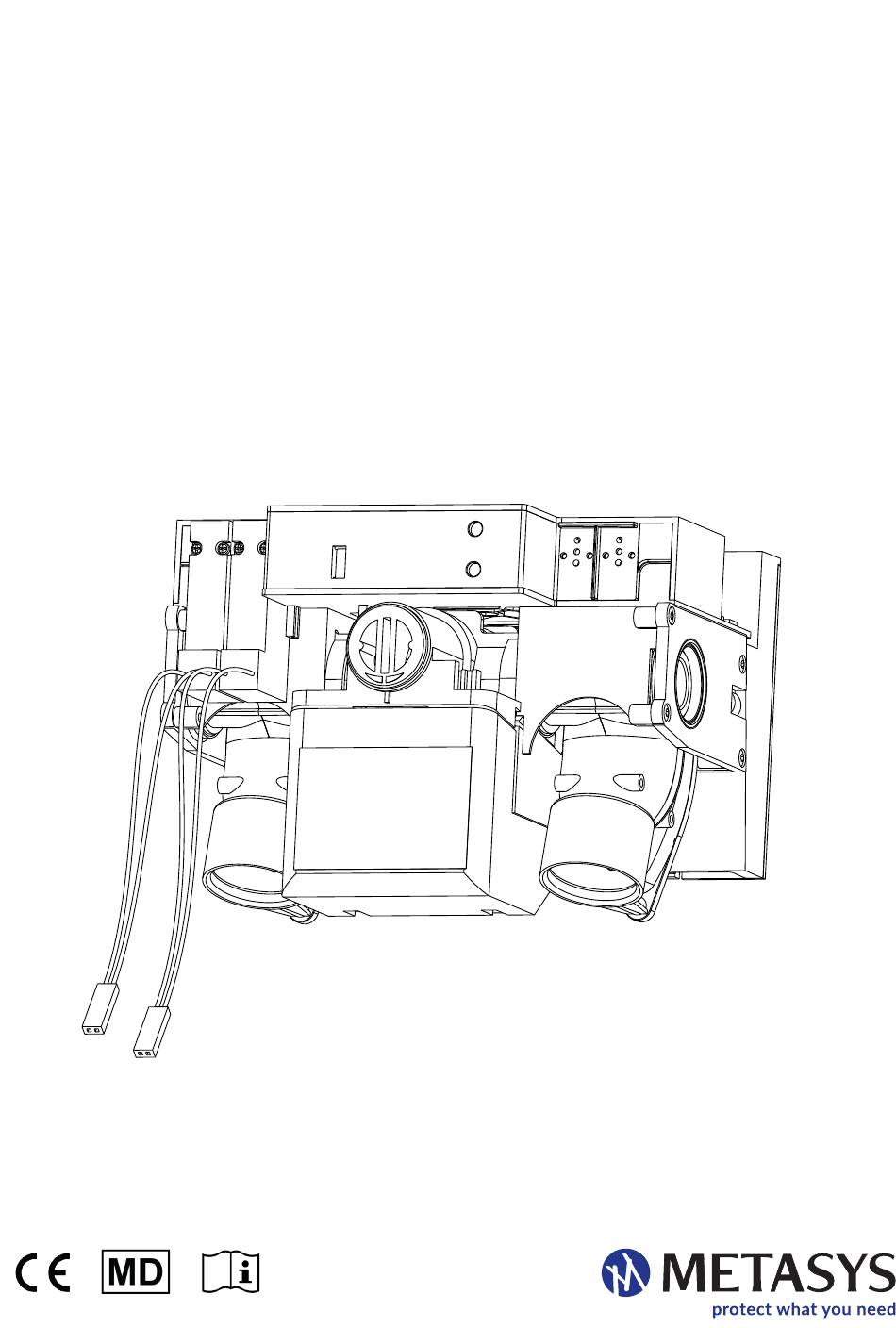

- Page 1 S1 SELEKTIVSYSTEM Instructions for use EN | ZK-58.215/00 | 2023-01 eIFU: www.metasys.com/downloads...
-
Page 2: Table Of Contents
Care and maintenance ........................15 7.1. Regular cleaning measures ......................................15 7.1.1. Daily cleaning of the filter rake ..................................15 7.1.2. Cleaning and disinfection of METASYS handpieces ............................17 7.2. Maintenance and service ........................................17 7.2.1. Exchange of valves and cleaning of lines ................................. 17 7.2.2. - Page 3 DE, EN, CS e-mail ifu@metasys.com Order number ZK-58.215/00 If you would like to request a printed copy of the instructions for use, please contact us at ifu@metasys.com or use the order form at www.metasys.com/downloads A hardcopy of the instructions for use will be made available to you free of charge and within seven calendar days of receipt of the request. Translations...
-
Page 4: Notes
Notes 1.1. General instructions METASYS can only guarantee the safety, reliability and performance of the dental device if the following instructions are adhered to: > The product is only to be used in accordance with the instructions for use. >... -
Page 5: Copyright Notice
Use hand protection Stacking limit n = (quantity) Name and address of the authorized representative‘s registered office in Switzerland 1.3. Copyright notice All names and contents are protected by copyright. Distribution, duplication or alternative use of this document is only permitted with the written consent of METASYS Medizintechnik. -
Page 6: Intended Use
Intended use Intended use S1 selective system enables a software-controlled, selective release/interruption of the suction current of the suction tubes of the of the dental treatment units. 2.1. Indication Not applicable. 2.2. Contraindication Not applicable. 2.3. Target group The device shall be used by trained and qualified personnel exclusively. -
Page 7: Safety-Related Information
Safety-related information Safety-related information 3.1. General safety-related information All serious incidents related to the device must be reported to the manufacturer and the competent authority of the Member State where the user and/or the patient is resident. 3.2. Safety instructions Assembly, modifications or repairs may only be carried out by authorised qualified personnel who guarantee compliance with the EN 60601-1 standard (international standard on Medical Electrical Equipment and Systems, in particular part 1: General requirements for basic safety). -
Page 8: Product Description
The S1 Selective System offers selective hose selection via infrared photocells, with an integrated control panel for hygiene system and amalgam separator. The movable suspension of the suction hoses also extends the reach with the same hose length and prevents the suction hoses from kinking at the connection. With a retrofit kit, it is possible to convert the S1 selective system into a fully-fledged H1 hygiene system. 4.2. Technical data / performance data S1 Selektivsystem Power supply 24 V AC Frequency 50/60 Hz Max. -
Page 9: Construction
Product description 4.4. Construction GREEN& Module 1 S1 valve block CLEAN H1 The valve block forms the “heart” of the S1 selective system. It provides control of the knee closures. Module 2 Filter housing, angle closures & suction hoses The filter housing contains the filter rake, which can be removed without dripping. The angle closures (1 per suction hose) serve as a closure for the suction flow. They are rotatably suspended and form the receptacle for the suction hoses. The suction flow rate can also be adjusted on the filter housing by means of a regulator. 4.5. Connections Suction line Suction hose 1 Suction hose 2 Connection valves suction hoses 4.6. -
Page 10: Functional Description
Product description 4.7. Functional description H 2 O IN Absaugung GREEN&CLEAN H1 H 2 O IN Absaugung GREEN&CLEAN H1 H 2 O GREEN&CLEAN H1 When the handpiece of a suction hose is lifted off, the respective suction flow closure membrane is opened by negative pressure through one solenoid valve each (L = left / R = Knieverschluss 2 right). -
Page 11: Preparation For Use
Assembly variants Due to its modular design, the S1 selective system can be installed directly in the treatment unit. 5.2.2. Pipe and hose connections Can only be used with original METASYS suction hoses: > large suction hose: diameter 17.5 mm >... -
Page 12: Installation, Assembly And Commissioning
Installation and assembly of optional accessories, retrofit parts and spare parts Assembly, modifications and repairs may only be carried out exclusively by authorised specialist personnel (see 3.2. Safety instructions)! The METASYS technical customer service is also available for further information and assistance in carrying out repairs, retrofitting, fault analyses, etc. 5.3.2. Connecting to other devices When connecting the METASYS device to other devices or systems, hazards can arise. It must therefore be ensured that no hazards arise for the user or the patient and that the environment is not affected. The specifications of the manufacturer of the device or system to be connected must be observed. -
Page 13: Electronics
Preparation for use 5.4. Electronics The mains connection may only be carried out by a qualified electrician. The electrical installation must be carried out in accordance with the applicable local regulations. Before connecting to the mains, compare the rated voltage on the device type plate with the mains voltage. Danger: The supply voltage must be taken from a safety transformer which complies with the requirements according to IEC 601-1 / VDE 0750 part 1 or DIN VDE 0551. If this output contact X2 is to be used to switch parts which are not of type BF, these must be controlled via an isolating relay which complies with the requirements according to IEC 601-1, section 20.2, insulation B-a. -
Page 14: Use
6.1. Error messages Assembly, modifications and repairs may only be carried out exclusively by authorised specialist personnel (see 3.2. Safety instructions)! For further information and assistance in carrying out repairs, retrofitting, fault analyses, etc., the METASYS technical customer service is also available! Error message Possible cause Countermeasures Knee joint is leaking Blockage/contamination in knee closure Replace knee lock Dry optocoupler board with air Moisture on optocoupler board in wiring harness... -
Page 15: Care And Maintenance
7.1. Regular cleaning measures The following cleaning measures must be carried out regularly: Measure Interval daily See 7.1.1 Cleaning of the filter rake Cleaning and disinfection of METASYS daily See 7.1.2 handpieces Cleaning and disinfection of the daily Remove, empty and clean the filter drawer. Collect the residues containing amalgam from the filter drawer in a suitable container. - Page 16 Care and maintenance Remove the filter rake by pulling it upwards. Empty the amalgam residue into the container provided (e.g. METASYS ECO CENTER). Clean or replace the filter rake and grease the sealing lip, clean the underside of the housing if necessary. Insert the filter cup with the inserted filter rake horizontally into the previously cleaned housing. Turn the cup clip upwards and snap it into place.
-
Page 17: Cleaning And Disinfection Of Metasys Handpieces
Care and maintenance 7.1.2. Cleaning and disinfection of METASYS handpieces Use hand protection! Disassemble handpieces: Switch off the workstation and carefully pull the handpieces off the connector on the hose with a twisting motion. When reassembling, ensure that the O-rings are correctly seated and greased and push the handpieces on with a twisting motion. -
Page 18: Diaphragm And Cover Exchange Knee Valve
Care and maintenance 7.2.2. Diaphragm and cover exchange knee valve Disassemble and remove side plate (loosen 4x screws) Remove knee valve Dismantle sealing cover (3x screws loosen) Dismantle sealing part (2x screws loosen) -
Page 19: Greasing The Filter Rake And Replacing Cover Of Knee Valve
Care and maintenance Replace diaphragm Replace and mount sealing cover and middle part 7.2.3. Greasing the filter rake and replacing cover of knee valve Disassemble and remove side plate (loosen 4x screws) Take out knee valve... -
Page 20: Decommissioning
Decommissioning 8.1. Disassembly Warning: Remove from power source before disassembly! Warning: Risk of contamination: To avoid infection, wear personal protective equipment (hand, eye, nose and mouth protection) and disinfect and clean the device! If it is necessary to return the device to the depot or to METASYS, the original METASYS packaging must be used. Before packing the METASYS device to be transported, clean and disinfect it. Possible openings where residual fluids could escape must be closed. 8.2. Recycling and disposal The device may be contaminated! Advise the disposal company of this so that appropriate precautions can be taken. Parts that are contaminated with amalgam, such as sieves, filters, hoses, etc., must also be disposed of in accordance with the national regulations. Uncontaminated plastic parts of the device can be recycled as normal plastics. The integrated electronic components (including circuit board) are to be disposed of as electronic waste. Metal parts are to be disposed of as scrap metal. -
Page 21: Annex
Annex Annex 9.1. Order numbers and scope of delivery Order number Designation Scope of delivery 05010011 S1 selective system, standard with tray Unit, standard version with tray, with instructions for use 05010012 S1 selective system, standard without tray Unit, standard version without tray, with instructions for use 05010018 S1 selective system, standard without tray - Ritter Unit, Ritter Concept version, with instructions for use... - Page 22 Annex Order number Designation Order number Designation 40010012 Angle-piece water outlet, 15 mm 40010102 Adapter, for METASYS, female 40010015 Double nozzle, 22-25 mm 40010103 Lock clip, adapter 40010017 Extension air duct, 72.5 mm 40010104 T-adapter 40010018 Extension air duct, 64.5 mm 40010105 Adapter, 25-28 mm, double sealing face, 5 pcs.
- Page 23 Selection system S1 Annex Système selectif S1 Sistema di selezione S1 S1 Selektivsystem 50010029 55010001 50010008 50120001 auf Anfrage on request 50010047 sur demande a richiesta 50010048...
- Page 24 Annex Hose nozzles and adapters META Connect ø 21 ø 26 ø 26 ø 26 ø 26 ø 26 ø 26 ø 21 ø 26 40010114 ø 21 ø 21 ø 21 ø 21 40010115 40010116 40010117 40010118 40010033 ø 22 ø...
- Page 25 Annex Hose nozzles and adapters META Connect Adapter for Dürr Adapter for Dürr ø 26 ø 26 Connect System Connect System ø 26 ø 22 ø 26 ø 31 ø 6 ø 26 ø 26 ø 26 ø 26 ø 15 ø...
-
Page 26: Warranty Conditions
METASYS at his own expense. METASYS checks whether there is a warranty claim. METASYS will repair the device or component if it is cost-effective. The customer is charged for the costs incurred for the repair, but not the replacement parts covered by the guarantee. The consignment of the device or component to METASYS always represents a repair order for METASYS. For cost estimates for the... -
Page 27: Change History
The new part corresponding to the part to be destroyed is only delivered after a separate order and invoice. In any case, METASYS has the right to handle the guarantee through credit note or the return of new parts without conducting repairs. Guarantee services do not result in an extension of the warranty period nor do they initiate a new warranty period. - Page 28 METASYS Medizintechnik GmbH Florianistraße 3 | 6063 Rum bei Innsbruck | Austria Subject to printing and setting errors! T +43 512 205420 | info@metasys.com | metasys.com...
