Index Explanation of the pictograms Practice personnel, technicians 1. Index The header on each page defines the user group particular information is aimed at. Chapter Page Index Explanation of the pictograms General information Application Construction Explanation of the type plate Technical data Functional description Installation options... -
Page 3: General Information
COMPACT Dynamic are followed. ƒ After commissioning, complete the proof of installation at the front page of this manual and send this to METASYS in order to define the warranty period. ƒ All inspection and service work must be entered into the device docu- mentation at the first pages of this manual ƒ... -
Page 4: Application

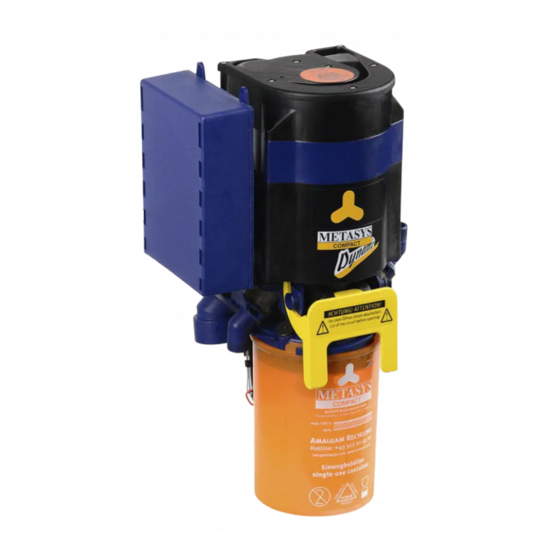

Application Construction Explanation of the type plate Practice personnel, technicians 4. Application The METASYS COMPACT Dynamic is a two-step individual amalgam separator with integrated dynamic air/water separation. 5. Construction The amalgam separator COMPACT Dynamic consists of 2 modules:... -
Page 5: Technical Data
Technical data Functional description Practice personnel, technicians 7. Technical data 173 mm Power supply 24 V AC Frequency 50/60 Hz Max. current consumption Instrument fuse 6,3 A T Max. power input 100 VA Low pressure range 80 mbar - 160 mbar Separation rate 96,4 % Collection container volume... -
Page 6: Installation Options
Installation behind the patient’s head (12 o’clock) If there is no spittoon in the treatment area and the suction system is located behind the head of the patient, then the COMPACT Dynamic can be installed inside a cabinet. In this case the connection to the spittoon must be closed with a sealing plug. -
Page 7: Guidelines For Installation
3 mm, and must not be removed while the amalgam separator is in operation. Hose connections ƒ The hose connections leading to the COMPACT Dynamic must be kept as short as possible to prevent pre-sedimentation. ƒ Dirty dental hoses must be replaced during installation and must be disposed of through DENTAL ECO SERVICE. -
Page 8: Hose Connections
Hose connections Electrical connections Technicians 11. Hose connections See illustration Connection to spittoon waste water pipe 13.1 Ø 15 mm Connection to suction hose (to the suction holder) 13.2 13.1 Ø 26 mm Connection for vacuum hose (to suction engine) 13.3 Ø... -
Page 9: Description Of The External Display
Description of the external display Practice personnel, technicians 13. Description of the external display 15.1 15.2 15.3 See illustration Control light 1: ready for operation 15.1 Ö green illuminated: unit is switched on Control light 2: centrifuge error 15.2 Ö red flashing and audible buzzer signal: Error! see illustration error messages RESET... -
Page 10: Replacement Of The Collection Container
Replacement of the collection container Practice personnel, technicians 14. Replacement of the collection container ƒ Turn off the main switch of the unit! ƒ Prepare a new collection container and take out the enclosed disinfectant bag! ƒ Wear protective gloves! ƒ... -
Page 11: Disposal Of The Full Container
The full amalgam separator can be disposed of at the in-house recycling company DENTAL ECO SERVICE - METASYS Group. Certifi cates of recycling need to be stored according to national law. When the whole amalgam separator is disassembled at the end of its operational life, it must be returned to the manufacturer for orderly disposal. -
Page 12: Maintenance, Cleaning And Disinfection
See illustration The spittoon bowl should also be rinsed with GREEN&CLEAN M2 or GREEN&CLEAN CL twice a day.. The operation of the amalgam separator COMPACT Dynamic without prefilter at the dental unit and/or at the central suction system is not permitted! Cleaning the prefilter: The prefilter must be emptied and cleaned at least once a week. -
Page 13: Service Mode
Service mode Practice personnel, technicians 17. Service mode The electronic components of the COMPACT Dynamic amalgam separator allow for the their functions to be checked using a service mode. RESET RESET IMPORTANT! In order to resume normal operation or service... -
Page 14: Annual Inspection
According to the German Institute of Construction Technology, the display elements of the amalgam separator must be tested at least once every year by an authorized technician. METASYS mandatorily prescribes performing the annual inspection (order no: 50040030). ƒ Start the service mode, as described in chapter 17 ƒ... -
Page 15: Year Inspection
5-year inspection Practice personnel, technicians 19. 5-year inspection In accordance with the German Waste Management Regulations, amalgam 43.1 43.1 separators must be examined at intervals of no longer than 5 years. ƒ Conduct the annual inspection, as described in chapter 18. ƒ... - Page 16 METASYS ... makes the difference! Visit us at: METASYS Medizintechnik GmbH Florianistraße 3, 6063 Rum bei Innsbruck, Austria 1 +43 512 205420 | 5 +43 512 205420 7 www.metasys.com | info@metasys.com FRANCE ITALY GERMANY +49 8823 938 44 33 +33 4 37 90 22 15 +39 045 981 4477 info@metasys.com...
