Chapter 5
Network
The B-Station2 is a network capable device. A network connection between
between a computer and the unit is required to configure and program the
B-Station2, however, once the device is programmed then it is not necessary
anymore for the B-Station2 to be connected to an Ethernet network. A PoE
switch or a PoE injector can simply be used to power the B-Station2 without
any further need of network connection.
There are multiple arrangements possible for connecting the computer and the
B-Station2. They can be connected peer-to-peer using a PoE injector, via a
PoE network switch or using a combination of these and a Wi-Fi acces point.
Figure 5.1 illustrates these different arrangements.

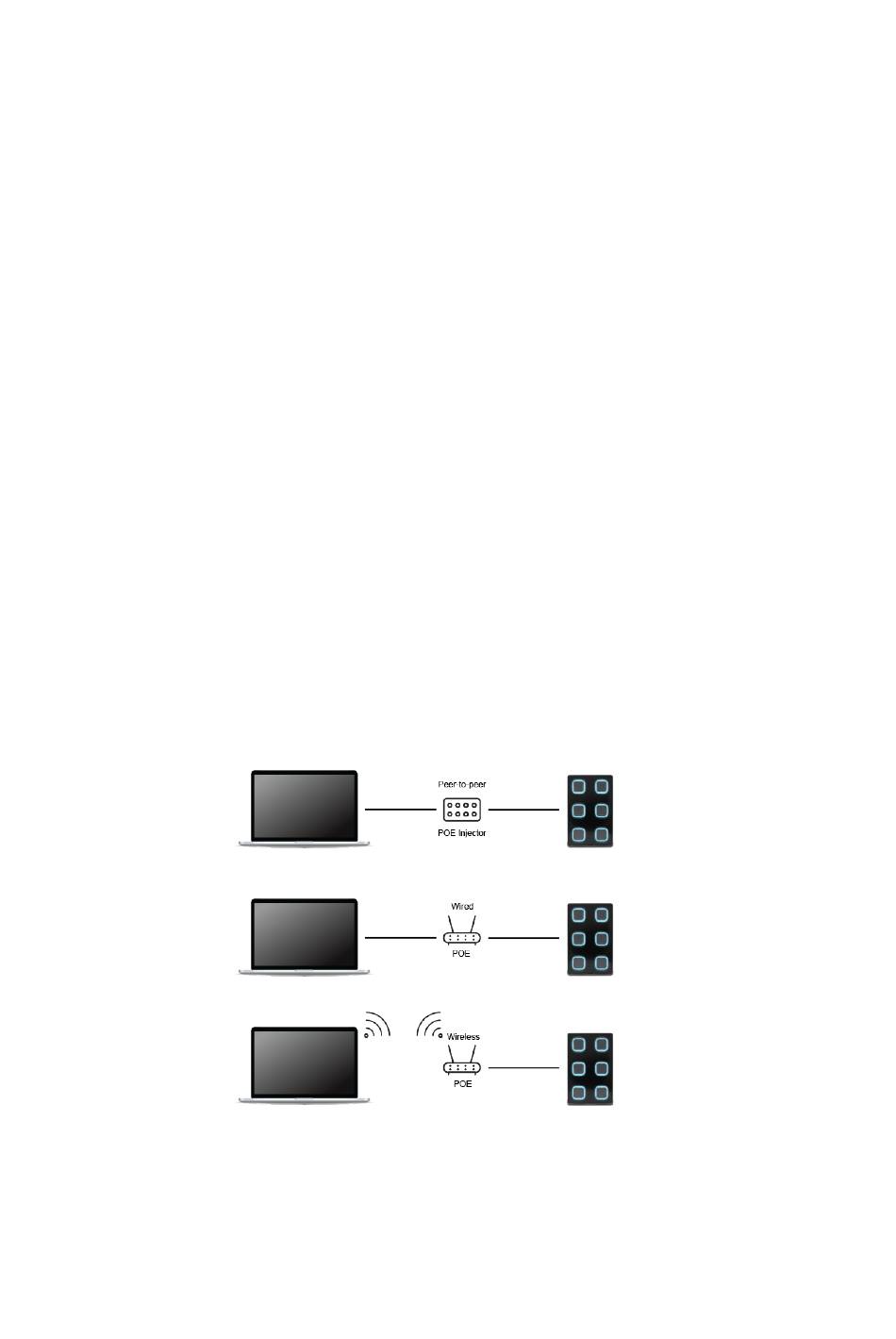

Figure 5.1: Network arrangements
The Ethernet port on the B-Station2 is auto-sensing; it does not matter whether
23
