3.4 DRAIN CONNECTION

IMPORTANT: Machine must be installed in accordance with all local codes and ordinances.
All drain systems must be vented to prevent an air lock or siphoning.
If proper drain size is not available or practical, a surge tank is required. A surge tank along with a sump pump should be used
when gravity drainage is not possible.

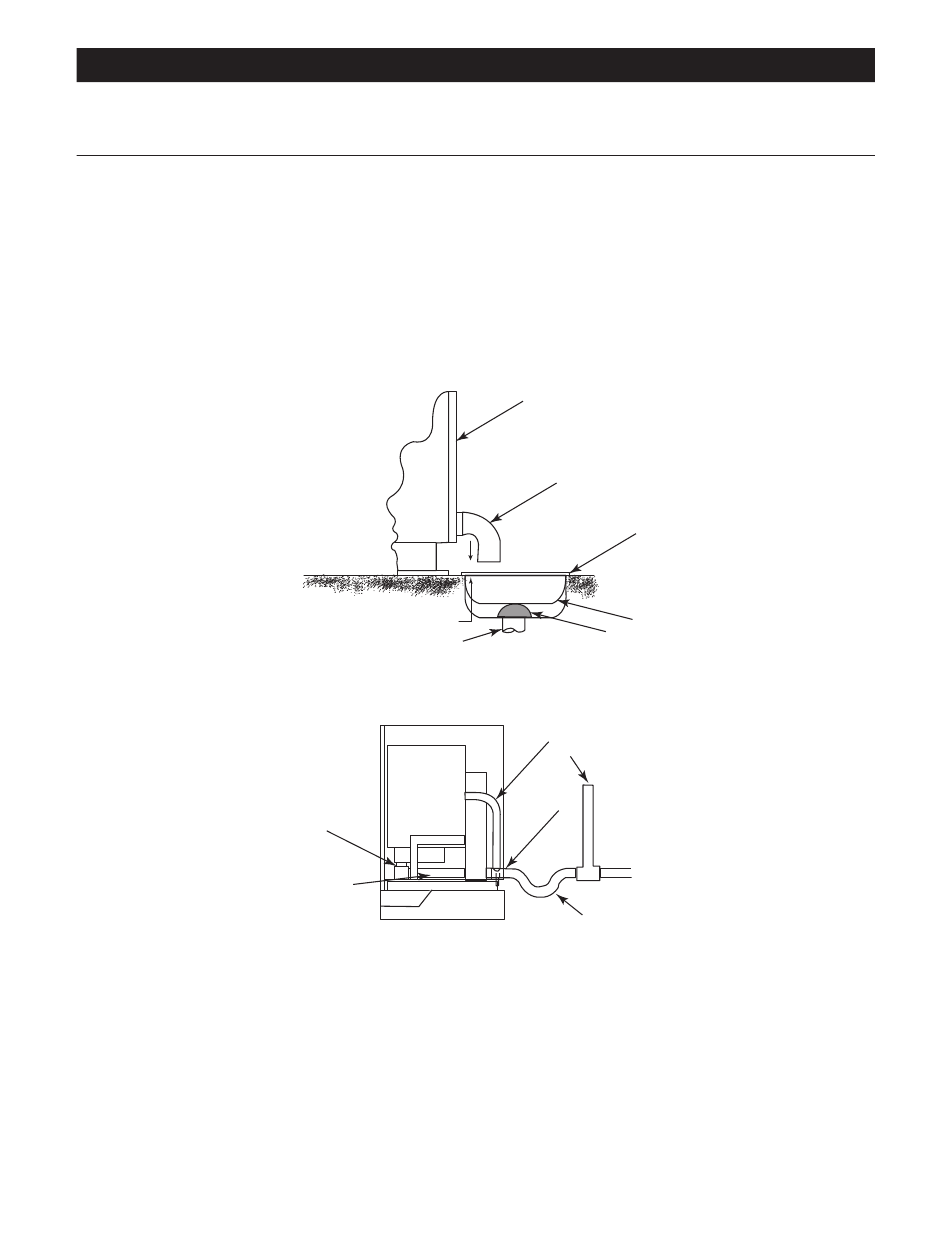

Drain Trough System
1. REAR OF MACHINE
2. DRAIN PIPE
3. STEEL GRATE
4. DRAIN TROUGH
5. STRAINER
6. WASTE LINE
7. 1 IN. [25 MM] MINIMUM GAP
Direct Drain System
Drain line must be vented to meet local plumbing codes.
1. DRAIN HOSE
2. DRAIN VALVE
3. DRAIN TEE
4. OVERFLOW HOSE
5. VENT PIPE*
6. TRAP [AS REQUIRED
BY LOCAL CODES]
IMPORTANT: Increasing the drain hose length, installing elbows, or causing bends will decrease drain flow rates and
increase drain times, impairing machine performance.
NOTE: Installation of additional machines will require larger drain connections.
