Summary of Contents for WANHAO CGR Series

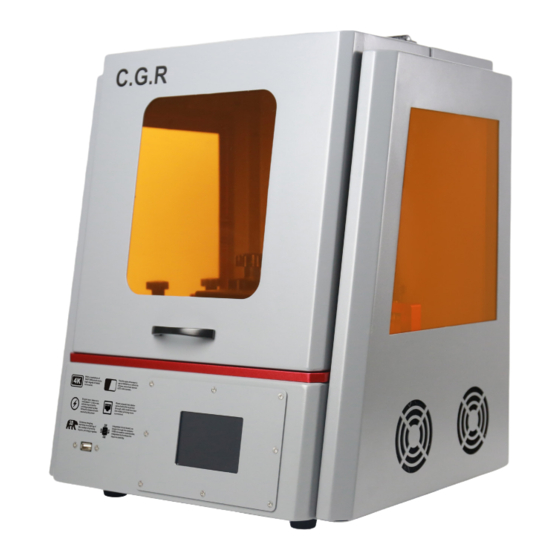

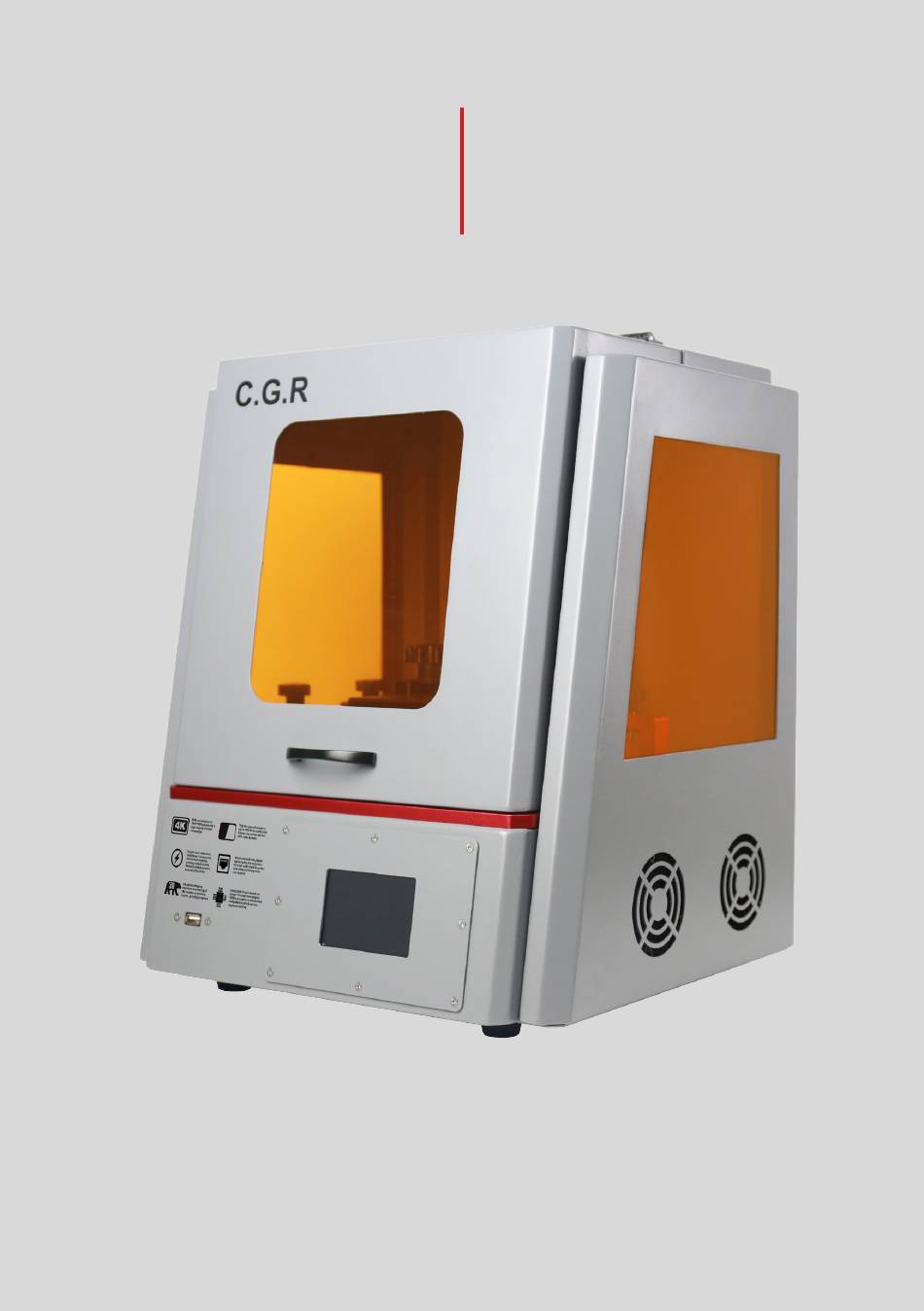

- Page 1 4K 8.9" you can C.G.R WANHAO USER MANUAL 4K HIGH definition 3D printer...
-
Page 3: Table Of Contents
CONTENTS Important Warranty Details Technical Specifications Product Overview A Safety Instructions B Congratulations Working Principles of DUP 3D Printers C Electrical Power Repair Recommendations Disposal Instructions D Useful Tips Contents of Tool Kit Recommended Tools Computer Minimum Requirements E Getting Started Software Installation And Configuration USB Memory Stick Printing WiFi Printing... -
Page 4: Important
Read this manual carefully You will be able to set up with ease Visit our website for tutorial videos and guides www.wanhao3dprinter.com Join Wanhao Google forum for online support https://groups.google.com/forum/#!forum/wanhao-printer-3d Google Forum Email us! We’re always happy to hear from you Technical support: support@wanhao3dprinter.com... -
Page 5: Warranty Details
People’s Republic of China. In case you purchase from WANHAO distributor, your warranty shall be covered by the distributor’s warranty and honored by WANHAO distributor as well. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS CGRSeries Model Mark I Technical Specifications Table Machine Type DLP (Digital Light Processing) 3D Printer Extruder System 405 nm UV lamp, DLP Enclosure Type Tilt Hood with UV safe glass Max printable area 192*120*180mm Software Chitu UV Type 405nm UV light Material supported 405nm Resin... -
Page 7: Product Overview
PRODUCT OVERVIEW 1. Red Anti Wobble Cover Super Flat, Re-usable Vat 2. Aluminum Super Flat Build Plate 5. Touch Screen 3. Z Axis Rail 6. USB Slot AFTER SALES SUPPORT 86-571-63379578 support@wanhao3dprinter.com... - Page 8 PRODUCT OVERVIEW 7. Power Switch 9. LAN network interface 8. Plug Socket 10. Cooling Fan AFTER SALES SUPPORT 86-571-63379578 support@wanhao3dprinter.com...
-
Page 9: A Safety Instructions
Before you get started, please read these safety instructions. CAUTION : WANHAO 3D Printers include moving parts that can cause injury. Never reach inside the WANHAO 3D Printer while it is in operation, and allow time for the printer to cool down after operation. -
Page 10: B Congratulations
CONGRATULATIONS You have just purchased a new and innovative Direct UV-Light Printing (DUP) technology based 3D printer. The direct UV method of printing uses LCD display panel as a matrix of pixels that hardens the liquid in the resin vat with the light from the UV light source. UV- LEDs at the bottom is used as background lighting. -
Page 11: C Electrical Power
Product exhibits distinct changes in performance that indicates malfunction. Product does not operate normally after following operating instructions. Disposal Instructions Do not dispose of this printer as regular waste. Please minimize pollution to the environment and recycle or return to WANHAO for recycling. AFTER SALES SUPPORT 86-571-63379578 support@wanhao3dprinter.com... -
Page 12: D Useful Tips
USEFUL TIPS Have adult supervision present when printer is operated by a minor. The resin is a skin and eye irritant. Always wear gloves when coming into contact with the liquid resin. Operate the printer on a stable and level surface, preferably away from direct ambient light. - Page 13 USB PRINTING AND LAN PRINTING There are 2 ways to print through CGR 4K 8.9” Monochrome printer. You are able to slice the file through your computer and print the file by USB flash disk. Or you are able to slice in software Chitu and transfer the data through LAN to your printer and print.
- Page 14 In the Slicing process you can see the printing time Insert the USB and PRINT and other information about the model. You can also slide Copy the sliced zip file into USB disk. the slider to up and down and see the layers of the model Insert the disk into the printer.
- Page 15 B. UPLOAD AND PRINT VIA LAN 1. Find the network wire interface end on the back of 3. Open Chitu, select the model already configured, import the printer and insert the network wire. the file and slice it. After slicing, first select the same IP address, so that the computer side and machine are in the same LAN.
-
Page 16: Printer Preparation
PRINTER PREPARATION 5.1 Plug in the power cord and turn on the printer. Once the printer is booted up, the Home Screen will be accessible. 5.2 Slide the resin vat on to the LCD screen and align the spots on the vat with the two knobs on the left and right side. - Page 17 6.1 Mount the printing platform on the holding plate and tighten the two knobs on the top. Make sure it is tight enough so that the platform will not move or shake. 6.2 5.Loosen the four knobs on the left and right side of the printing platform so the Z Height can be adjusted.
- Page 18 On the printer’s Home Screen, press “Settings” then “Z Height” then “Reset”. This will start lowering and positioning the build platform. 6.4 After the platform is in place to reach into the resin vat, tighten the four knobs on the left and right side of the backside of the print plate with light pressure.
-
Page 19: Filling Resin Vat
Filling Resin Vat 7.1 To pour in resin into the vat, you need to lift the printing platform by pressing the Up Arrow a few times on the printer’s Home Screen to get good distance between the resin vat and printing plate. 7.2 Shake the resin bottle before opening it, then pour the resin inside the vat. -
Page 20: F Cleaning The Printer And Printed Objects
CLEANING THE PRINTER AND PRINTED OBJECTS Follow these steps to minimize spilling resin so that your machine stays clean. 1. Ensure the base of your object is clear of the vat by moving the print platform up sufficiently. Remove the hood of the print platform and tilt the platform backwards to allow excess resin to drip back into the resin vat. -
Page 21: G Chitu Software Detailed Guide
CHITU SOFTWARE DETAILED GUIDE System Compatibility Chitu is compatible with Windows and Mac operating systems. Key Buttons on the Main Screen Open File:Click to open new files, including .STL, .OBJ, .Zip files. Save File: Click to save the current object as .Zip file. Using a .STL file will allow you to prepare a scene template with supports and positioning that can be printed repeatedly in the future. -
Page 22: Loading A Model
1. Loading a Model Click on “Open File” button and select a file in the following formats: .STL, .OBJ, .Zip. 2. Actions in Scene View Selecting your model Select by clicking on the model or clicking on the File List on the right panel. -
Page 23: Cloning Your Mode
Cloning your model Click on “Load Current Model” and the cloned object will appear in the scene view. 3. Actions in Tool Bar Moving, rotating and mirroring your model. Move: This function allows you “Put on the plate”: This button move your object along the will position the bottom of the X,Y,Z axis through entering in the... -
Page 24: Scaling Objects
4. Scaling objects A model can be scaled (reduced or increased) by selecting it, and using the ‘Scale’ view to enter in a new scaler value. Press the tick button to re-scale your object. 5. Rotating Objects A model can be scaled (reduced or increased) by selecting it, and using the ‘Scale’... -
Page 25: Working With Model Support Tools
8. Working with Model Support tools Using Supports Supports are sometime required to properly attach a model to the build space. Because of the nature of DPP the lower layers must be supported by the supports unless it has a wide surface in the first layers. Adding a single Support A single support can be generated by clicking the manual support button/ Angled Supports... -
Page 26: Slice View
9.Slice view In the Slice View screen we get the following information: You can see the printing time and other information about the model. You can also slide the slider to up and down and see the layers of the model you are going to print. 10.Save files Click on “Export”... -
Page 27: Save A Scene
11. Save a Scene Save File: Click this to save the current object as a .STL file. The .STL format can be used as a template for repeated use with supports and positioning information pre-loaded. After models have been loaded and manipulated on the build platform, the entire scene settings can be save in the .STL model for future use in creating scenes with supports, slicing scenes, and loading without needing to re- slice the object. -
Page 28: Repair And Refurbished Goods Or Parts Notice
WANHAO’s stringent quality specifications. If at any time you are unsatisfied with how your repair is handled, you may escalate your complaint to WANHAO. Please contact us via: Phone: +86-571-2329-0996 (Hours: Mon to Sat from 8:30 AM to 5:00 PM CST China Time) Mail: HANGZHOU BEAN 3D TECHNOLOGY CO.,LTD... - Page 29 C.G.R Powered by WANHAO REV1.3...
