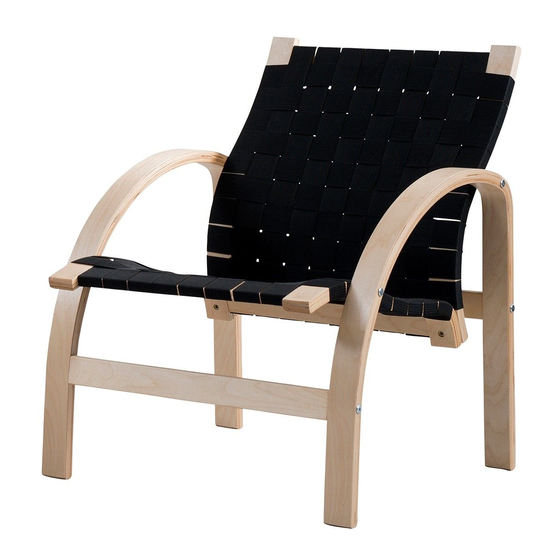

Otto Woven Chair
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
Small Screw
Dowel
x2
x8
E
F
Nuts
Allen Key
x4
x1

Hardware supplied

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C
D
Large Screw
Medium Screw
x4
x4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Otto Woven Chair and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Otto Woven Chair

  • Page 1 Otto Woven Chair Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Small Screw Dowel Large Screw Medium Screw Nuts Allen Key Hardware supplied mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 2 Insert 8 x Dowels (B) and 4 x Nuts (E) into support panels [5]. Attach Tighten with Allen Key (F). supports [5] to Chair Legs [3] and [4] as shown and secure with 4 x Large Screws (C). Tighten with Allen Key (F). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 3 Position the chair body between the chair legs. Attach the chair body to the chair legs as shown, using 4 x Medium Screws (D). Tighten with Allen Key (F). You're done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
