Oslo Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
nut
4"45 screw
x27
x27
x4
F
G
H
dowel
strap
guide
x14
x1
x1
K
L
washer
4"14 screw
x2
x1

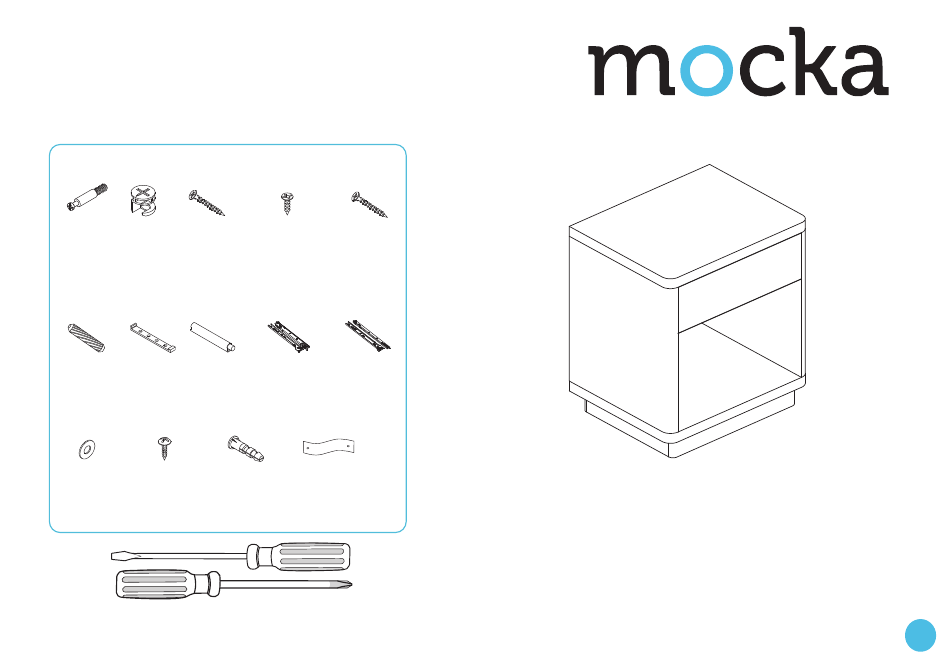

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au |
D
E
3"12 screw
4"35 screw
x12
x5
CL"DL
CR"DR
left rail
right rail
x1
x1
M
N
wall plug
safety strap
×1
×1
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts to
climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We
supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note that
different wall materials may require different fixing devices from those
supplied.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Oslo Bedside Table
Summary of Contents for Mocka Oslo Bedside Table
- Page 1 Oslo Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. bolt 4”45 screw 3”12 screw 4”35 screw CL”DL CR”DR dowel strap guide left rail right rail washer 4”14 screw wall plug safety strap ×1...
- Page 2 Oslo Bedside Table Assembly Instructions mocka.co.nz | mocka.com.au |...
- Page 3 Oslo Bedside Table Assembly Instructions Attach 15 x bolts (A) to panels [7], [2] and [1] as shown. Attach 1 x strap Attach 8 x bolts (A) to panels [3] and [4] as shown. Attach 1 x left rail (G) to panel [1] and secure with 2 x screws (D) and 1 x guide (H).
- Page 4 Oslo Bedside Table Assembly Instructions Attach panels [3], [5], [6] and [4] together as shown and secure with 8 Attach panels [1], [3], [6] and [4] together as shown and secure with 5 x nuts (B) and 2 x dowels (F). Tighten with a screwdriver.
- Page 5 Oslo Bedside Table Assembly Instructions Attach panels [2], [3] and [4] together as shown and secure with 4 x Attach panels [7] and [8] together as shown and secure with 4 x nuts screws (C) and 4 x dowels (F). Tighten with a screwdriver.
- Page 6 Oslo Bedside Table Assembly Instructions Attach assembled frames together as shown and secure with 6 x nuts Attach 1 x left rail (DL) and 1 x right rail (DR) to panels [10] and [11] (B). Tighten with a screwdriver. and secure with 4 x screws (D) and 16 x bolts (A) to panels [10], [11] and [9] as shown.
- Page 7 Oslo Bedside Table Assembly Instructions Attach panels [10], [12] and [11] together as shown and secure with 4 Once assembled lift furniture into place, do not drag. Attach 1 x x screws (E). Slide panel [13] into position. Attach panel [9] to wall strap (N) to back of assembled frame and secure with 1 x washer assembled frame and secure with 4 x nuts (B).
