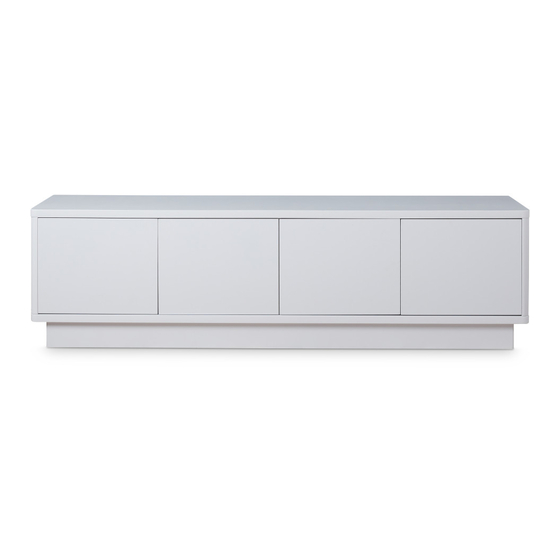

Olso Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
nut
x32
x32
F
G
5"50screw
clip
x6
x4
K
L
3"14 screw
wedge
x8
x8
Q
P
4"35 screw
safety strap
×2
x2

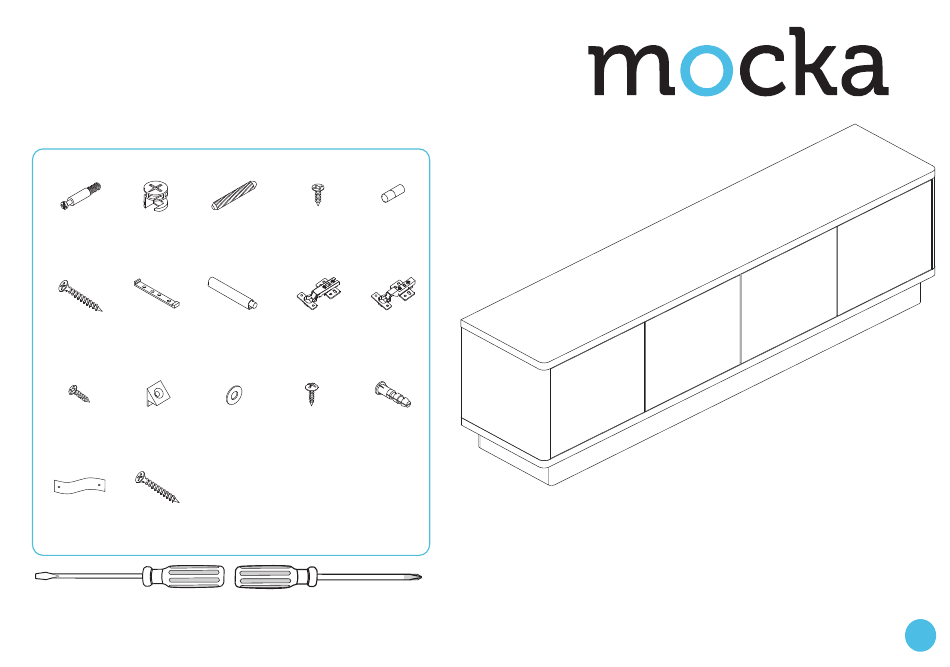

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au |
C
D
E
dowel
3"12 screw
clip
x12
x56
x8
H
I
J
spacer
hinge
hinge
x4
x4
x4
M
N
O
washer
4"14 screw
wall plug
x4
x2
×2
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts to
climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We
supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note that
different wall materials may require different fixing devices from those
supplied.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Olso Entertainment Unit
Summary of Contents for Mocka Olso Entertainment Unit
- Page 1 Olso Entertainment Unit Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. bolt dowel 3”12 screw clip 5”50screw clip spacer hinge hinge washer 4”14 screw wall plug 3”14 screw wedge ×2 WARNING: Any furniture that is not anchored to a wall has the 4”35 screw...
- Page 2 Olso Entertainment Unit Assembly Instructions mocka.co.nz | mocka.com.au |...
- Page 3 Olso Entertainment Unit Assembly Instructions Attach 16 x bolts (A) to panels [1] and [2] as shown. Attach 4 x clips Attach 16 x bolts (A) to panels [11] as shown. Tighten with a (G) and 4 x spacers (H) to panel [1] and secure with 8 x screws (D).
- Page 4 Olso Entertainment Unit Assembly Instructions Attach panels [3], [4] and [5] to panel [1] and secure with 6 x nuts (B) Slide panels [8] into position as shown. and 6 x dowels (C). Tighten with a screwdriver. mocka.co.nz | mocka.com.au |...
- Page 5 Olso Entertainment Unit Assembly Instructions Attach panel [2] to assembled frame and secure with 6 x dowels (C) Attach panels [9] and [11] to panels [10] and secure with 16 x nuts and 6 x screws (F). Tighten with a screwdriver.
- Page 6 Olso Entertainment Unit Assembly Instructions Attach assembled frames together as shown and secure with 10 x nuts Attach 8 x clips (E) into position and slide panels [7] as shown. (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au |...
- Page 7 Olso Entertainment Unit Assembly Instructions ×2 ×2 Attach 4 x hinges (J) and 4 x hinges (I) to panels [6] as shown and Attach panels [6] to assembled frame as shown and secure with 16 x secure with 16 x screws (D). Tighten with a screwdriver.
- Page 8 Olso Entertainment Unit Assembly Instructions Attach panels [6] to assembled frame as shown and secure with 16 x screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au |...
- Page 9 Olso Entertainment Unit Assembly Instructions ×8 Attach 8 x wedges (L) as shown and secure with 8 x screws (K). Once assembled lift furniture into place, do not drag. Use a drill Tighten with a screwdriver. Attach 2 x wall straps (P) to back...
