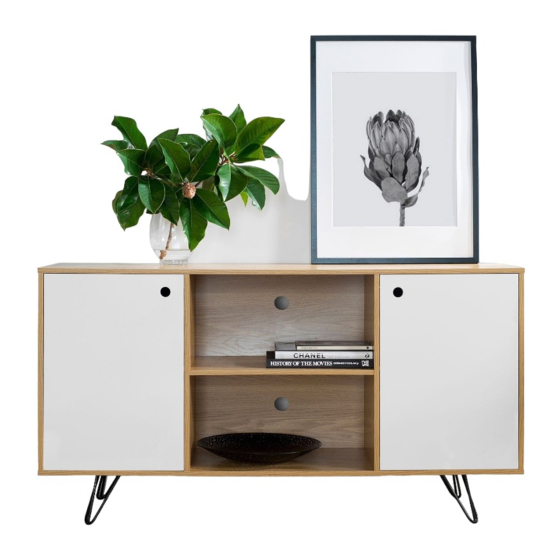

Vibe/Olsen Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
bolt
locking
dowel
long
screw x8
x12
nut x12
x20
G
H
I
hinge
shelf
wedge
screw
x4
plug x10
x8
x8

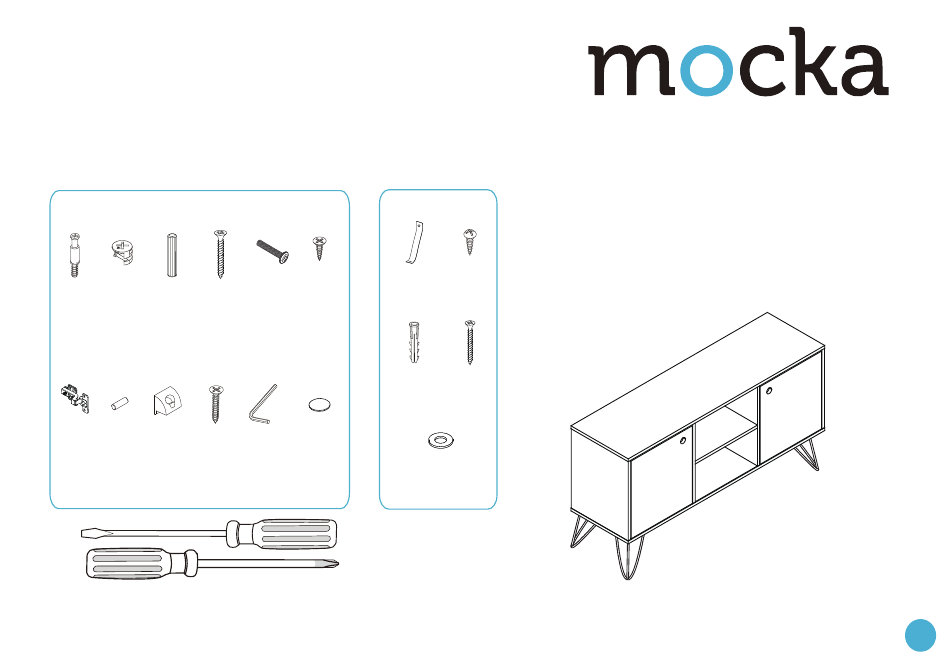

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
D
E
F
strap x1
bolt
small
x12
screw
x24
J
K
L
allen key
cover
x1
x8
WARNING:
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
V
W
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
safety
screw
materials may require different fixing devices from those supplied.
x1
X
Y
wall
wall
anchor
screw
x1
x1
Z
washer
x2
Wall Strap
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
Any furniture that is not anchored to a wall has the potential to tip
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Olsen
Summary of Contents for Mocka Olsen
- Page 1 For quicker assembly, we recommend the Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 2 Insert 12x bolts (A) into panels [1], [5] and [6] as shown. Tighten Attach 4x hinges (G) to door panels [10] and [11], securing with 8x with a screwdriver. screws (F). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Attach panels [5] and [6] to panel [7] with 4x dowels (C) and secure with to form the back of the unit, as shown. 4x locking nuts (B) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 4x locking nuts (B) and tighten with a screwdriver. Seal the with 4x locking nuts (B) and tighten with a screwdriver. Seal the holes with 4 x covers (L). holes with 4 x covers (L). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 Attach panel [4] to the rest of the unit with 8x dowels (C) and [6] and [7] to form the back of the unit, as shown. and easily. secure with 8x long screws (D) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 4x hinges (G) with 16x screws (F) as shown. Tighten with a screwdriver. Insert 2x shelf plugs (H) into the panels [5] and [6] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 Attach 8x wedges (I) to the corners of the back [9] as shown, and Insert the shelf panels [13] and balance on top of the plugs. secure with 8x small screws (J). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 8 (V). Fasten to the wall using 1x washer (Z), 1x wall plug (X) and 1x screw (Y). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
