Oli Bookcase
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
44x
44x
36x
bolt
locking nut
dowel
F
E
6x
18x
hinge
stopper
screw
I
J
1x
20x
adjuster
cover
screw

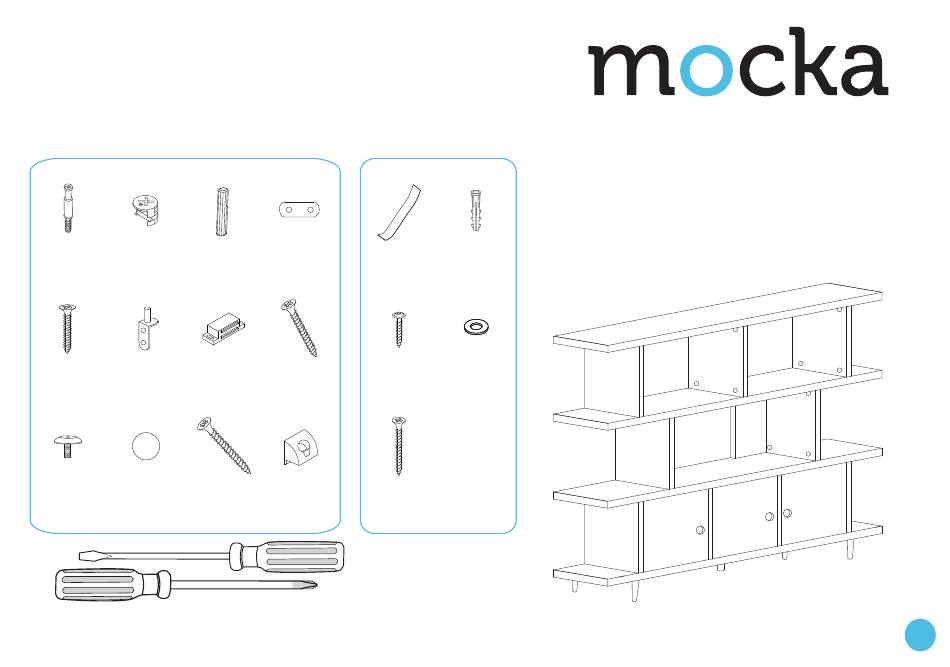

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
3x
latch
wall strap
G
H
3x
6x
3x
screw
screw
K
L
12x
12x
3x
wedge
wall screw
WARNING:
W
X
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
3x
3x
anchor
Y
Z
3x
washer
Wall Strap
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
Any furniture that is not anchored to a wall has the potential to tip
1
Advertisement
Related Manuals for Mocka Oli Bookcase
Summary of Contents for Mocka Oli Bookcase
- Page 1 *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Firmly screw 4x leg [12] and 1x leg [14] to the base of panel [2]. Attach 8x bolt (A) to panel [2]. Screw adjuster (I) into leg [14] and level to floor if needed. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Tighten with a screwdriver. Tighten with a screwdriver. Slide 3x panel [10] into the groves in panels [5], [6] and [7] to form the back of the unit as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Insert the bottom hinge (F) attached to panels [11] into the groves on Attach 2x hinge (F) to panel [11] with 4x screw (E). panel [2]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 (F) attached to panels [11] insert into the groves on panel [3]. Attach 6x bolt (A) to the top side of panel [3]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [13] to panel [8] with 2x locking nut (B). Attach panels [8] and [13] to panel [3] with 6x locking nut (B). Tighten with a screwdriver. Tighten with a screwdriver. Place 4x cover (J) over locking nuts. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach 3x wall strap (W) to panel [1] with 3x screw (Y). Attach 6x bolt (A) to the top side of panel [4]. Tighten with a screwdriver. Tighten with a screwdriver. Place 4x cover (J) over locking nuts on panel [8]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach panel [1] to panels [9] with 6x locking nut (B). Tighten with a screwdriver. Tighten with a screwdriver. Place 6x cover (J) over locking nuts. Place 6x cover (J) over locking nuts. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Tighten with a screwdriver. Fasten to the wall using 3x wall anchor (X), 3x washer (Z) and 3x wall screw. Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
