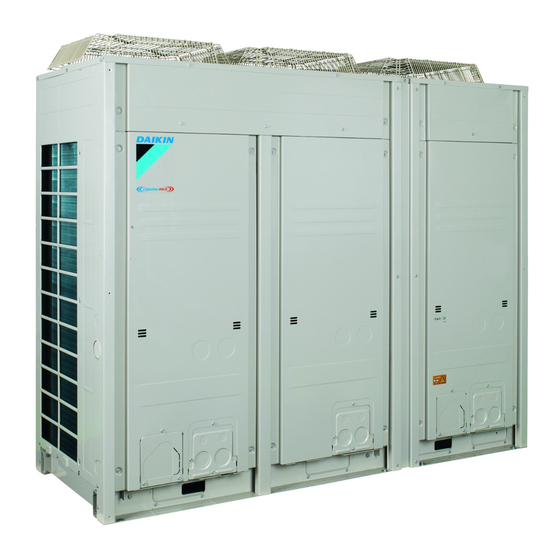

Daikin CO2 Conveni-pack LRYEN10A7Y1 Installer And User Reference Manual
Outdoor unit
Hide thumbs
Also See for CO2 Conveni-pack LRYEN10A7Y1:
- Installation and operation manual (44 pages) ,
- Installation and operation manual (44 pages) ,
- Installation and operation manual (56 pages)
Subscribe to Our Youtube Channel
Related Manuals for Daikin CO2 Conveni-pack LRYEN10A7Y1
Summary of Contents for Daikin CO2 Conveni-pack LRYEN10A7Y1
- Page 1 Installer and user reference guide CO₂ Conveni-Pack outdoor unit LRYEN10A7Y1 LRNUN5A7Y1...
-
Page 2: Table Of Contents
Table of contents Table of contents 1 About the documentation About this document ..............................2 General safety precautions About the documentation .............................. 2.1.1 Meaning of warnings and symbols ........................ For the installer ................................2.2.1 General ................................2.2.2 Installation site ............................... 2.2.3 Refrigerant —... - Page 3 Table of contents 15 Unit installation 15.1 Preparing the installation site............................50 15.1.1 Installation site requirements of the outdoor unit..................50 15.1.2 Additional installation site requirements of the outdoor unit in cold climates..........53 15.1.3 Additional installation site requirements for CO₂ refrigerant ............... 53 15.2 Opening and closing the unit............................
- Page 4 Table of contents 19.1 To check the insulation resistance of the compressor ....................107 20 Configuration 20.1 Overview: Configuration..............................108 20.2 Making field settings............................... 108 20.2.1 About making field settings..........................108 20.2.2 To access the field setting components......................108 20.2.3 Field setting components..........................
-
Page 5: About The Documentation
The original documentation is written in English. All other languages are translations. Technical engineering data ▪ A subset of the latest technical data is available on the regional Daikin website (publicly accessible). ▪ The full set of latest technical data is available on the Daikin Business Portal (authentication required). -
Page 6: General Safety Precautions
General safety precautions 2 General safety precautions 2.1 About the documentation ▪ The original documentation is written in English. All other languages are translations. ▪ The precautions described in this document cover very important topics, follow them carefully. ▪ The installation of the system, and all activities described in the installation manual and in the installer reference guide MUST be performed by an authorised installer. -
Page 7: For The Installer
Improper installation or attachment of equipment or accessories could result in electrical shock, short-circuit, leaks, fire or other damage to the equipment. Only use accessories, optional equipment and spare parts made or approved by Daikin. WARNING Make sure installation, testing and applied materials comply with applicable legislation (on top of the instructions described in the Daikin documentation). -
Page 8: Installation Site
General safety precautions WARNING Provide adequate measures to prevent that the unit can be used as a shelter by small animals. Small animals that make contact with electrical parts can cause malfunctions, smoke or fire. CAUTION Do NOT touch the air inlet or aluminium fins of the unit. CAUTION ▪... - Page 9 WARNING Make sure installation, servicing, maintenance and repair comply with instructions from Daikin and with applicable legislation (for example national gas regulation) and are executed only by authorised persons. WARNING If one or more rooms are connected to the unit using a duct system, make sure: ▪...
-
Page 10: Refrigerant - In Case Of R744
General safety precautions 2.2.3 Refrigerant — in case of R744 See the installation manual or installer reference guide of your application for more information. NOTICE Make sure refrigerant piping installation complies with applicable legislation. In Europe, EN378 is the applicable standard. NOTICE Make sure the field piping and connections are NOT subjected to stress. -
Page 11: Electrical
General safety precautions ▪ Do NOT charge liquid refrigerant directly from a gas line. Liquid compression could cause compressor operation failure. ▪ Only use tools exclusively for the refrigerant type used in the system, this to ensure pressure resistance and prevent foreign materials from entering into the system. - Page 12 General safety precautions CAUTION ▪ When connecting the power supply: connect the earth cable first, before making the current-carrying connections. ▪ When disconnecting the power supply: disconnect the current-carrying cables first, before separating the earth connection. ▪ The length of the conductors between the power supply stress relief and the terminal block itself must be as such that the current-carrying wires are tautened before the earth wire is in case the power supply is pulled loose from the stress relief.
-
Page 13: Specific Installer Safety Instructions
WARNING Make sure installation, servicing, maintenance, repair and applied materials follow the instructions from Daikin and, in addition, comply with applicable legislation and are performed by qualified persons only. In Europe and areas where IEC standards apply, EN/IEC 60335-2-40 is the applicable standard. - Page 14 Specific installer safety instructions NOTICE Serious injury and/or damage can result from blow off of the liquid receiver safety valve (see "26.2 Piping diagram: Outdoor unit" [ 132]): ▪ NEVER service the unit when the pressure at the liquid receiver is higher than the set pressure of the liquid receiver safety valve (86 bar g±3%).
- Page 15 Specific installer safety instructions WARNING ▪ Use K65 piping for high-pressure applications with a working pressure of 120 bar or 90 bar, depending on its location in the system. ▪ Use K65 unions and fittings approved for a working pressure of 120 bar or 90 bar, depending on its location in the system.
- Page 16 Specific installer safety instructions WARNING ▪ All wiring MUST be performed by an authorised electrician and MUST comply with the applicable legislation. ▪ Make electrical connections to the fixed wiring. ▪ All components procured on-site and all electrical construction MUST comply with the applicable legislation.
-
Page 17: For The User
For the user For the user LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂ Conveni-Pack outdoor unit 4P605460-1 – 2020.08... -
Page 18: User Safety Instructions
User safety instructions 4 User safety instructions Always observe the following safety instructions and regulations. 4.1 General WARNING If you are NOT sure how to operate the unit, contact your installer. WARNING Children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can only use this appliance if they have been given supervision or instruction concerning... -
Page 19: Instructions For Safe Operation
User safety instructions ▪ Units are marked with the following symbol: This means that electrical and electronic products may NOT be mixed with unsorted household waste. Do NOT try to dismantle the system yourself: the dismantling of the system, treatment of the refrigerant, of oil and of other parts must be done by an authorized installer and must comply with applicable legislation. - Page 20 User safety instructions CAUTION ▪ NEVER touch the internal parts of the controller. ▪ Do NOT remove the front panel. Some parts inside are dangerous to touch and appliance problems may happen. For checking and adjusting the internal parts, contact your dealer. WARNING This unit contains electrical and hot parts.
- Page 21 User safety instructions WARNING Do NOT place a flammable spray bottle near the air conditioner and do NOT use sprays near the unit. Doing so may result in a fire. Maintenance and service (see "9 Maintenance and service" [ 29]) WARNING: System contains refrigerant under very high pressure.
- Page 22 User safety instructions "9.3 About the refrigerant" [ 30]) About the refrigerant (see WARNING ▪ Do NOT pierce or burn refrigerant cycle parts. ▪ Be aware that the refrigerant inside the system is odourless. WARNING The R744 refrigerant (CO ) inside the unit is odourless, non-flammable and normally does NOT leak.
-
Page 23: About The System
About the system 5 About the system The indoor units can be used for heating/cooling and refrigerating applications. The type of indoor units which can be used depends on the outdoor units series. WARNING Do NOT modify, disassemble, remove, reinstall or repair the unit yourself as incorrect dismantling or installation may cause an electric shock or fire. - Page 24 About the system Main outdoor unit (LRYEN10*) Capacity up unit (LRNUN5*) Communication box (BRR9B1V1) Indoor unit for air conditioning Indoor unit for refrigeration (showcase) Indoor unit for refrigeration (blower coil) Safety valve control panel detector alarm ventilator Shut off valve LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂...
-
Page 25: Before Operation
Before operation 6 Before operation WARNING This unit contains electrical and hot parts. WARNING Before operating the unit, be sure the installation has been carried out correctly by an installer. NOTICE NEVER inspect or service the unit by yourself. Ask a qualified service person to perform this work. - Page 26 Before operation Dedicated functions exist depending on the type of indoor unit, refer to dedicated installation/operation manual for more information. LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂ Conveni-Pack outdoor unit 4P605460-1 – 2020.08...
-
Page 27: Operation
Operation 7 Operation 7.1 Operation range Use the system in the following temperature ranges for safe and effective operation. Refrigeration A/C cooling A/C heating Outdoor –20~43°C DB –5~43°C DB –20~16°C WB temperature Indoor — 14~24°C WB 15~27°C DB temperature For low load restrictions, see "14.5.2 Constraints for refrigeration" [ 49]. -
Page 28: Energy Saving And Optimum Operation
Energy saving and optimum operation 8 Energy saving and optimum operation Observe the following precautions to ensure the system operates properly. ▪ Adjust the air outlet properly and avoid direct air flow to room inhabitants. ▪ Adjust the room temperature properly for a comfortable environment. Avoid excessive heating or cooling. -
Page 29: Maintenance And Service
Maintenance and service 9 Maintenance and service NOTICE NEVER inspect or service the unit by yourself. Ask a qualified service person to perform this work. WARNING NEVER replace a fuse with a fuse of a wrong ampere ratings or other wires when a fuse blows out. -
Page 30: Maintenance After A Long Stop Period
Maintenance and service 9.2 Maintenance after a long stop period E.g., at the beginning of the season. ▪ Check and remove everything that might be blocking inlet and outlet vents of indoor units and outdoor units. ▪ Clean air filters and casings of indoor units. Contact your installer or maintenance person to clean air filters and casings of the indoor unit. - Page 31 Maintenance and service ▪ The manufacturing number (stated on the nameplate of the unit). ▪ The installation date. ▪ The symptoms or malfunction, and details of the defect. LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂ Conveni-Pack outdoor unit 4P605460-1 – 2020.08...
-
Page 32: Troubleshooting
Troubleshooting 10 Troubleshooting If system malfunctions are likely to degrade the articles in the room/showcase, you can ask your installer to install an alarm (example: lamp). For more information, contact your installer. If one of the following malfunctions occur, take the measures shown below and contact your dealer. - Page 33 Troubleshooting Malfunction Measure The system operates but ▪ Check if air inlet or outlet of outdoor or indoor cooling or heating is unit is not blocked by obstacles. Remove any insufficient. obstacles and make sure the air can flow freely. (for air conditioner indoor ▪...
-
Page 34: Error Codes: Overview
Troubleshooting 10.1 Error codes: Overview In case a malfunction code appears on the indoor unit user interface display, contact your installer and inform the malfunction code, the unit type, and serial number (you can find this information on the nameplate of the unit). For your reference, a list with malfunction codes is provided. -
Page 35: Relocation
Relocation 11 Relocation Contact your dealer for removing and reinstalling the total unit. Moving units requires technical expertise. LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂ Conveni-Pack outdoor unit 4P605460-1 – 2020.08... -
Page 36: Disposal
Disposal 12 Disposal NOTICE Do NOT try to dismantle the system yourself: dismantling of the system, treatment of the refrigerant, oil and other parts MUST comply with applicable legislation. Units MUST be treated at a specialised treatment facility for reuse, recycling and recovery. LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂... -
Page 37: For The Installer
For the installer For the installer LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂ Conveni-Pack outdoor unit 4P605460-1 – 2020.08... -
Page 38: About The Box
About the box 13 About the box In this chapter 13.1 Overview: About the box................................ 13.2 Outdoor unit ................................... 13.2.1 To unpack the outdoor unit ........................... 13.2.2 To handle the outdoor unit............................ 13.2.3 To remove the accessories from the outdoor unit ....................13.1 Overview: About the box Keep the following in mind: ▪... -
Page 39: To Handle The Outdoor Unit
About the box 8× 4× Outdoor unit Capacity up unit WARNING Tear apart and throw away plastic packaging bags so that nobody, especially children, can play with them. Possible risk: suffocation. 13.2.2 To handle the outdoor unit CAUTION To avoid injury, do NOT touch the air inlet or aluminium fins of the unit. Crane Lift the outdoor unit preferably with a crane and 2 belts of at least 8 ... -
Page 40: To Remove The Accessories From The Outdoor Unit
About the box Forklift Outdoor unit Capacity up unit NOTICE Use filler cloth on the forklift arms to prevent damage to the unit. Damage to the painting of the unit decreases the anti-corrosion protection. Also see the label about handling on the unit. 13.2.3 To remove the accessories from the outdoor unit Outdoor unit General safety precautions... -
Page 41: About The Units And Options
About the units and options 14 About the units and options In this chapter 14.1 Identification................................... 14.1.1 Identification label: Outdoor unit .......................... 14.2 About the outdoor unit ................................14.2.1 Labels on outdoor unit............................14.3 System layout..................................14.4 Combining units and options..............................14.4.1 Possible combinations of indoor units........................ -
Page 42: About The Outdoor Unit
About the units and options Capacity up unit: LR NU N 5 A7 Y1: Product category: ▪ L: Low temperature air conditioner ▪ R: Outdoor unit Subcooler unit Refrigerant: R744 (CO Capacity indication in HP Major design category: European design power supply (3~ / 50 Hz / 380~415 V) 14.2 About the outdoor unit This installation manual concerns the outdoor unit and the optional capacity up unit. -
Page 43: Labels On Outdoor Unit
About the units and options 14.2.1 Labels on outdoor unit Label about flow directions Text on caution label Translation from LRYEN10A7Y1 to Refrigeration From LRYEN10A7Y1 to Refrigeration Gas for Airco Gas for Airco Liquid for Airco Liquid for Airco Gas from Refrigeration Gas from Refrigeration Liquid to LRNUN5A7Y1 or to Liquid to LRNUN5A7Y1 or to... - Page 44 About the units and options Card about stop valves and service ports WARNING Unit is charged and under high pressure. Text on warning card Translation Unit is charged and under high Unit is charged and under high pressure. pressure. Also see "16.2 Using stop valves and service ports" [ 71].
- Page 45 About the units and options CAUTION WARNING ELECTRIC SHOCK CAUTION Caution when servicing the switch box 1. Before obtaining access to terminal devices, all supply circuits must be interrupted because units at standstill may be in a pre-heating mode and start automatically. 2.
-
Page 46: System Layout
About the units and options Text on warning label Translation 1. Before obtaining access to terminal 1. Before obtaining access to terminal devices, all supply circuits must be devices, all supply circuits must be interrupted because units at standstill interrupted because units at standstill may be in a pre-heating mode and start may be in a pre-heating mode and start automatically. -
Page 47: Combining Units And Options
About the units and options Main outdoor unit (LRYEN10*) Capacity up unit (LRNUN5*) Communication box (BRR9B1V1) Indoor unit for air conditioning Indoor unit for refrigeration (showcase) Indoor unit for refrigeration (blower coil) Safety valve control panel detector alarm ventilator Shut off valve 14.4 Combining units and options INFORMATION Certain options might not be available in your country. -
Page 48: Possible Options For The Outdoor Unit
About the units and options 14.4.2 Possible options for the outdoor unit INFORMATION Refer to the technical engineering data for the latest option names. Refrigerant T-joints Allowed Not allowed Refrigerant unit T-joints Refnet joints and headers (branch kits) Air conditioning unit T-joints Refnet joints and headers (branch kits) -
Page 49: Constraints For Refrigeration
About the units and options Capacity class Individual control with a remote controller NOT allowed 71+112 Allowed Restrictions Keep the following restrictions in mind when you connect indoor units: Restriction Minimum/maximum Minimum air conditioning total capacity class Maximum air conditioning total capacity class Maximum indoor units that can be ≤4... -
Page 50: Unit Installation
Unit installation 15 Unit installation In this chapter 15.1 Preparing the installation site ..............................15.1.1 Installation site requirements of the outdoor unit ....................15.1.2 Additional installation site requirements of the outdoor unit in cold climates ........... 15.1.3 Additional installation site requirements for CO₂ refrigerant................15.2 Opening and closing the unit .............................. - Page 51 Unit installation ▪ Sound sensitive areas (e.g. near a bedroom), so that the operation noise will cause no trouble. Note: If the sound is measured under actual installation conditions, the measured value might be higher than the sound pressure level mentioned in Sound spectrum in the data book due to environmental noise and sound reflections.
- Page 52 Unit installation ▪ In places with weak reception, keep distances of 3 m or more to avoid electromagnetic disturbance of other equipment and use conduit tubes for power and transmission lines. CAUTION Appliance not accessible to the general public, install it in a secured area, protected from easy access.
-
Page 53: Additional Installation Site Requirements Of The Outdoor Unit In Cold Climates
Unit installation Sea wind Building Outdoor unit Windbreaker It is recommended to install a baffle plate when the air outlet is exposed to wind. ▪ All piping lengths and distances have been taken into consideration (see "16.1.3 Refrigerant piping length and height difference" [ 65]). - Page 54 Unit installation Refrigerant basic characteristics QLAV (quantity limit with additional ventilation) 0.18 kg/m Toxicity limit 0.1 kg/m Safety class Allowable refrigerant charge The calculation of the allowable refrigerant charge depends on the combination of the "access category" and the "location classification" as described in the following table.
- Page 55 Unit installation Access category Description Examples Supervised access Rooms, parts of buildings, buildings Business or professional offices, laboratories, where only a limited number of people places for general manufacturing and where may be assembled, some being people work. necessarily acquainted with the general safety precautions of the location.
- Page 56 Unit installation WARNING When using safety shut-off valves, make sure to install measures such as a bypassing piping with a pressure relief valve (from liquid pipe to gas pipe). When the safety shut-off valves close and no measures are installed, increased pressure may damage the liquid piping.
- Page 57 Unit installation Example: Total refrigerant change in the system is 45 kg and room volume is 300 m . 45/300=0.15, which is >RCL (0.072) and <QLAV (0.18), therefore install at least 2 appropriate measures in the room. QLAV QLMV 100 150 200 250 300 350 600 650 700 750 800 850 900 950 1000 B (m³)
-
Page 58: Opening And Closing The Unit
Unit installation ▪ Include the space above a false ceiling or partition in the volume calculation unless the false ceiling is airtight. ▪ Where an indoor unit, or any related refrigerant-containing pipework, is located in a space where the total charge exceeds the allowable charge, make special provisions to ensure at least an equivalent level of safety. -
Page 59: To Open The Electrical Component Box Of The Outdoor Unit
Unit installation 4× × Outdoor unit Capacity up unit 3 Remove the small front plates of each removed front panel. 2× 1× (If applicable) Small front plate left Small front plate right Once the front plates open, the electrical component box can be accessed. See "15.2.3 To open the electrical component box of the outdoor unit" [ 59]. -
Page 60: To Close The Outdoor Unit
Unit installation Electrical component box of the capacity up unit 4× 15.2.4 To close the outdoor unit NOTICE When closing the outdoor unit cover, make sure that the tightening torque does NOT exceed 4.1 N•m. 1 Reinstall the small front plates of each removed front panel. 2×... -
Page 61: Mounting The Outdoor Unit
Unit installation 15.3 Mounting the outdoor unit 15.3.1 About mounting the outdoor unit Typical workflow Mounting the outdoor unit typically consists of the following stages: Providing the installation structure. Installing the outdoor unit. 15.3.2 Precautions when mounting the outdoor unit INFORMATION Also read the precautions and requirements in the following chapters: ▪... - Page 62 Unit installation Outdoor unit Capacity up unit ▪ The preferred installation is on a solid longitudinal foundation (steel beam frame or concrete). The foundation must be larger than the grey marked area. ≥765 ≥765 (mm) Minimum foundation LRYEN10* LRNUN5* LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂...
-
Page 63: To Install The Outdoor Unit On The Installation Structure
Unit installation Unit LRYEN10* 1940 1102 LRNUN5* — ▪ Fasten the unit in place using four foundation bolts M12. It is best to screw in the foundation bolts until their length remains 20 mm above the foundation surface. NOTICE ▪ Prepare a water drainage channel around the foundation to drain waste water from around the unit. -
Page 64: Piping Installation
Piping installation 16 Piping installation In this chapter 16.1 Preparing refrigerant piping ..............................16.1.1 Refrigerant piping requirements ........................... 16.1.2 Refrigerant piping material ............................ 16.1.3 Refrigerant piping length and height difference ....................16.1.4 To select the piping size ............................16.1.5 To select refrigerant branch kits..........................16.1.6 To select expansion valves for refrigeration...................... -
Page 65: Refrigerant Piping Material
Piping installation NOTICE The piping and other pressure-containing parts shall be suitable for refrigerant and oil. Use K65 copper-iron alloy tube system for high-pressure applications with a working pressure of 120 bar at the air conditioner side and 90 bar at the refrigeration side. - Page 66 Piping installation Requirement Limit LRYEN10* LRYEN10* + LRNUN5* Maximum piping length Examples: Refrigeration side: 130 m ▪ A+B+C+D+(E or F) ≤Limit Air conditioning side: 130 m ▪ a+c+d+(e or f) ≤Limit ▪ A2+B2+(C2 or D2) ≤Limit ▪ a2+b2+(c2 or d2) ≤Limit Piping length between LRYEN10* and Not specified, but piping must be LRNUN5* horizontal...
-
Page 67: To Select The Piping Size
Piping installation Showcase Height difference=5 m Trap The refrigerant suction piping must always run down: Outdoor unit or indoor unit Flow direction in refrigerant suction piping To install riser piping If the outdoor unit is installed lower than the indoor unit, install the riser piping close to the indoor unit. - Page 68 Piping installation Capacity up unit (LRNUN5*) Outdoor unit (LRYEN10*) Indoor unit (showcase) Indoor unit (blower coil) Indoor unit (air conditioning) Liquid piping (side showcases and blower coils) A2~E2 Liquid piping (side air conditioning) Gas piping (side showcases and blower coils) a2~e2 Gas piping (side air conditioning) H1~H4...
-
Page 69: To Select Refrigerant Branch Kits
Piping installation For refrigeration piping (A, B, a) and for air conditioner piping (A2, a2) For low load restrictions, see "14.5.2 Constraints for refrigeration" [ 49]. Piping size between branching areas or between first and second branch Indoor unit capacity index Piping outer diameter size (mm) (kW) Refrigeration side: liquid pipe x≤10.0... -
Page 70: To Select Expansion Valves For Refrigeration
Piping installation 16.1.6 To select expansion valves for refrigeration The system controls liquid temperature and liquid pressure. Select the expansion valves as indicated according to nominal conditions and design pressure. Nominal conditions The following nominal conditions are valid for the liquid piping at the outlet of the outdoor unit. -
Page 71: Using Stop Valves And Service Ports
Piping installation 16.2 Using stop valves and service ports For more information about the card on the unit, see "Card about stop valves and service ports" [ 44]. WARNING When stop valves are closed during service, the pressure of the closed circuit will increase due to high ambient temperature. -
Page 72: To Handle The Stop Valve
Piping installation Stop valve for maintenance 16.2.3 To handle the stop valve Take the following guidelines into account: ▪ Make sure to keep all stop valves open during operation. ▪ The gas and liquid stop valves are factory closed. ▪ The figures below show the name of each part required in handling the stop valve. - Page 73 Piping installation Open versus closed All stop valves are of the backseat type and do not have a valve core for the charge port. Fully closed (connected between charge port and indoor unit side) Fully open (connected between outdoor unit and indoor unit) To outdoor unit To indoor unit To open the stop valve...
-
Page 74: To Handle The Service Port
Piping installation 5 Tighten the valve cap. Also see "16.2.5 Tightening torques" [ 75]. 16.2.4 To handle the service port ▪ Always use a charge hose equipped with a valve depressor pin, since the service port is a Schrader type valve. ▪ After handling the service port, make sure to tighten the service port cover securely. -
Page 75: Tightening Torques
Piping installation Copper packing 4 Add a new copper packing and mount the service port cap. Apply screw lock agent or silicon sealant to the screw thread when mounting the service port cap. If not, moisture and condensing water may penetrate and freeze between the screw thread. -
Page 76: Precautions When Connecting The Refrigerant Piping
Piping installation Typical workflow Connecting the refrigerant piping involves: ▪ Connecting refrigerant T-joints ▪ Connecting the refrigerant piping to the indoor units (see the installation manual of the indoor units) ▪ Insulating the refrigerant piping ▪ Keeping in mind the guidelines for: Pipe connections Flaring pipe ends Brazing... -
Page 77: To Remove The Spun Pipes
Piping installation NOTICE Take the following precautions on refrigerant piping into account: ▪ Avoid anything but the designated refrigerant to get mixed into the refrigerant cycle (e.g. air). ▪ Only use R744 (CO₂) when adding refrigerant. ▪ Only use installation tools (e.g. manifold gauge set) that are exclusively used for R744 (CO₂) installations to withstand the pressure and to prevent foreign materials (e.g. -
Page 78: To Connect The Refrigerant Piping To The Outdoor Unit
Piping installation WARNING NEVER remove the spun piping by brazing. Any gas or oil remaining inside the stop valve may blow off the spun piping. INFORMATION If the stop valve was initially open, a small amount of refrigerant or oil may leak out. 5 Wait until all oil has dripped out before continuing with the connection of the field piping in case the recovery was not complete. - Page 79 Piping installation NOTICE Precautions when making knockout holes: ▪ Avoid damaging the casing. ▪ After making the knockout holes, we recommend you remove the burrs and paint the edges and areas around the edges using repair paint to prevent rusting. ▪...
-
Page 80: To Braze The Pipe End
Piping installation Stop valve (liquid – refrigeration) Gas piping Liquid piping 3 If applicable, connect the piping to the capacity up unit. 16.3.5 To braze the pipe end General guidelines ▪ When brazing, blow through with nitrogen to prevent creation of large quantities of oxidized film on the inside of the piping. -
Page 81: Guidelines To Connect T-Joints
Piping installation Correct distance and direction of flame during preheating. Correct distance and direction of flame during brazing. Incorrect distance and direction of flame. Beware of burning holes in the piping or not heating the piping enough. Direct the flame to the center of the piping to heat the piping equally. If you do not direct the flame to the center of the piping, the piping will not be heated equally. -
Page 82: Guidelines To Install A Dryer
Piping installation Liquid piping Always branch horizontally when connecting the branch piping. To prevent uneven refrigerant flow, always branch downwards when using a header. Coming from the outdoor units Going to the indoor units Gas piping Always branch horizontally when connecting the branch piping. To prevent refrigerant oil flowing into the indoor units, always set the branch piping above the main piping. -
Page 83: Guidelines To Install Safety Valves
Piping installation When brazing Follow the brazing instructions in the dryer manual. Remove the dryer cap immediately before brazing (to prevent absorption of moisture). If dryer paint burnt during brazing, repair it. For repair paint details, contact the manufacturer. Flow direction If the dryer specifies a flow direction, install accordingly. -
Page 84: About Checking The Refrigerant Piping
Piping installation ▪ If installed, see the installation manual of the pressure reduction kit. ▪ Only use R744 dedicated tools (such as gauge manifold and charge hose) that are designed to withstand high pressures and which will prevent water, dirt or dust entering the unit. -
Page 85: Checking Refrigerant Piping: Setup
Piping installation 16.4.3 Checking refrigerant piping: Setup c1 d1 c2 d2 Nitrogen (N R744 refrigerant tank Weighing scales Vacuum pump Outdoor unit Pressure regulator Charge hose c1, c2 Gas side d1, d2 Liquid side To refrigeration indoor unit To air conditioning indoor unit Stop valve Service port Field piping... -
Page 86: To Perform Vacuum Drying
Piping installation To check for leaks: Pressure leak test 1 Test for leaks by applying a bubble test solution to all piping connections. 2 Discharge all nitrogen gas. 3 Break the vacuum by pressurising with nitrogen gas to a minimum gauge pressure of 0.2 MPa (2 bar). -
Page 87: Insulating The Refrigerant Piping
Piping installation 16.5 Insulating the refrigerant piping After finishing the leak test and vacuum drying, the piping must be insulated. Take into account the following points: ▪ Be sure to insulate the liquid and gas piping (for all units). ▪ Use heat resistant polyethylene foam which can withstand a temperature of 70°C for: all liquid piping at both the air conditioner and the refrigeration side. -
Page 88: Electrical Installation
Electrical installation 17 Electrical installation In this chapter 17.1 About electrical compliance..............................17.2 Field wiring: Overview ................................17.3 Guidelines when knocking out knockout holes ........................17.4 Guidelines when connecting the electrical wiring......................... 17.5 Specifications of standard wiring components........................17.6 Connections to the outdoor unit............................17.6.1 Low voltage wiring –... -
Page 89: Field Wiring: Overview
Electrical installation 17.2 Field wiring: Overview INFORMATION Indoor units (air conditioning). This field wiring overview shows only one possible wiring for the indoor units (air conditioning). For more possibilities, see the indoor unit manual. X1M (A1P) X1M (A1P) X1M (A1P) X1M (A1P) L1 L2 L3 N C C1 W1 R P1 P2... -
Page 90: Guidelines When Knocking Out Knockout Holes
Electrical installation 17.3 Guidelines when knocking out knockout holes ▪ To punch a knockout hole in a front panel, hit on it with a hammer. ▪ To punch a knockout hole in the bottom panel, drill holes where indicated. ▪ After knocking out the holes, we recommend removing any burrs and paint the edges and areas around the holes using repair paint to prevent rusting. - Page 91 Electrical installation Round crimp-style terminal Cut-out section Cup washer ▪ Use the following methods for installing wires: Wire type Installation method Single-core wire AA´ A´ a Curled single-core wire b Screw c Flat washer Stranded conductor wire with round crimp-style terminal a Terminal b Screw...
-
Page 92: Specifications Of Standard Wiring Components
Electrical installation Terminal Screw size Tightening torque (N•m) X1M (A1P): DIII M3.5 0.80~0.96 transmission wiring 17.5 Specifications of standard wiring components Power supply NOTICE When using residual current operated circuit breakers, be sure to use a high-speed type 300 mA rated residual operating current. The power supply must be protected with the required safety devices, i.e. -
Page 93: Connections To The Outdoor Unit
Electrical installation 17.6 Connections to the outdoor unit NOTICE ▪ Be sure to keep the power line and transmission line apart from each other (≥50 mm). Transmission wiring and power supply wiring may cross, but may not run parallel. ▪ Transmission wiring and power supply wiring may NOT touch internal piping in order to avoid wire damage due to high temperature piping. - Page 94 Electrical installation Wiring intake (knockout hole) for low voltage. See "17.3 Guidelines when knocking out knockout holes" [ 90]. Details – DIII transmission wiring "17.5 Specifications of standard wiring components" [ 92]. Details – Remote operation switch NOTICE Remote operation switch. The unit is factory-equipped with an operation switch with which you can turn unit operation ON/OFF.
-
Page 95: High Voltage Wiring - Outdoor Unit
Electrical installation 17.6.2 High voltage wiring – Outdoor unit Connections/routing/fixing L1 L2 L3 L1 L2 L3 N 3N~ 50 Hz 380-415 V C C1 W1 R P1 P2 a d/e/f/g Power supply: a: Power supply cable b: Overcurrent fuse c: Earth leakage circuit breaker Protective earth (screw) Output signals: d: Caution... -
Page 96: Connections To The Capacity Up Unit
Electrical installation Details – Output signals NOTICE Output signals. The outdoor unit is provided with a terminal (X4M) that can output 4 different signals. The signal is 220~240 V AC. The maximum load for all signals is 0.5 A. The unit outputs a signal in the following situations: ▪... -
Page 97: Low Voltage Wiring - Capacity Up Unit
Electrical installation 17.7.1 Low voltage wiring – Capacity up unit Connections/routing/fixing X1M (A1P) IN/D UNIT OUT/D UNIT MULTI UNIT F2 Q1 Q2 X1M (A1P) c/d a/b X1M (A1P) DIII transmission wiring: a: To outdoor unit b: To indoor units (air conditioning) Remote switches: c: Remote operation switch d: Remote low noise switch... - Page 98 Electrical installation Factory-equipped operation switch: OFF: Unit operation turned OFF ON: Unit operation turned ON Remote: Unit controlled (ON/OFF) with remote operation switch Wiring remote operation switch: Wiring Sheathed cable (2 wires) Vinyl cords 0.75~1.25 mm² Maximum wiring length 130 m Details – Remote low noise switch: NOTICE Low noise switch.
-
Page 99: High Voltage Wiring - Capacity Up Unit
Electrical installation 17.7.2 High voltage wiring – Capacity up unit Connections/routing/fixing L1 L2 L3 L1 L2 L3 N 3N~ 50 Hz 380-415 V C C1 W1 R P1 P2 a d/e/f Power supply: a: Power supply cable b: Overcurrent fuse c: Earth leakage circuit breaker Protective earth (screw) Output signals:... - Page 100 Electrical installation Wiring Sheathed cable (2 wires) Vinyl cords 0.75~1.25 mm² Maximum wiring length 130 m Details – Power supply: "17.5 Specifications of standard wiring components" [ 92]. LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂ Conveni-Pack outdoor unit 4P605460-1 – 2020.08...
-
Page 101: Charging Refrigerant
Charging refrigerant 18 Charging refrigerant In this chapter 18.1 About charging refrigerant..............................101 18.2 About the refrigerant ................................101 18.3 Precautions when charging refrigerant ..........................102 18.4 To determine additional refrigerant amount......................... 104 18.5 To charge refrigerant................................106 18.1 About charging refrigerant The outdoor unit is factory charged with refrigerant, but depending on the field piping you have to charge additional refrigerant. -
Page 102: Precautions When Charging Refrigerant
Charging refrigerant WARNING The R744 refrigerant (CO ) inside the unit is odourless, non-flammable and normally does NOT leak. If the unit is installed indoors, ALWAYS install a CO detector according to the specifications of standard EN378. If the refrigerant leaks in high concentrations in the room, it may have negative effects on its occupants such as asphyxiation and carbon dioxide poisoning. - Page 103 Charging refrigerant CAUTION A vacuumed system will be under triple point. To avoid solid ice, ALWAYS start charging with R744 in vapour state. When the triple point is reached (5.2 bar absolute pressure or 4.2 bar gauge pressure), you may continue charging with R744 in liquid state.
-
Page 104: To Determine Additional Refrigerant Amount
Charging refrigerant NOTICE In case of maintenance and the system (outdoor unit+field piping+indoor units) does not contain any refrigerant any more (e.g., after refrigerant reclaim operation), the unit has to be charged with its original amount of refrigerant (refer to the nameplate on the unit) and the determined additional refrigerant amount. - Page 105 Charging refrigerant Calculation table: outdoor unit with or without capacity up unit Amount of refrigerant for liquid piping (refrigeration / air conditioner) Liquid piping Conversion Piping length Total amount size (mm) ratio per of refrigerant meter of (kg) liquid piping (kg/m) Ø9.5 0.0463...
-
Page 106: To Charge Refrigerant
Charging refrigerant INFORMATION The capacity up unit is a pre charged closed circuit. There is no need to add additional refrigerant charging. 18.5 To charge refrigerant 1 Turn ON the power supply of the outdoor unit and all indoor units (air conditioners, blower coils, showcases). -
Page 107: Finishing The Outdoor Unit Installation
Finishing the outdoor unit installation 19 Finishing the outdoor unit installation 19.1 To check the insulation resistance of the compressor NOTICE If, after installation, refrigerant accumulates in the compressor, the insulation resistance over the poles can drop, but if it is at least 1 MΩ, then the unit will not break down. -
Page 108: Configuration
Configuration 20 Configuration In this chapter 20.1 Overview: Configuration................................. 108 20.2 Making field settings................................108 20.2.1 About making field settings ........................... 108 20.2.2 To access the field setting components ........................ 108 20.2.3 Field setting components............................109 20.2.4 To access mode 1 or 2............................110 20.1 Overview: Configuration This chapter describes what you have to do and know to configure the system after it is installed. -
Page 109: Field Setting Components
Configuration 1 2 3 4 1 2 3 4 Outdoor unit Capacity up unit Inspection hole Inspection hole cover Operation switch (S1S) Field setting components 7‑segment displays: ON ( ) OFF ( ) Flashing ( Push buttons: BS1: MODE: For changing the set mode BS2: SET: For field setting BS3: RETURN: For field setting DIP switches... -
Page 110: To Access Mode 1 Or 2
Configuration Push buttons Use the push buttons to make the field settings. Operate the push buttons with an insulated stick (such as a closed ball-point pen) to avoid touching of live parts. 7-segment display The display gives feedback about the field settings, which are defined as [Mode- Setting]=Value. - Page 111 Configuration a Power ON b Default situation Switching between modes Use BS1 to switch between the default situation, mode 1 and mode 2. a Default situation (H1P OFF) b Mode 1 (H1P flashing) c Mode 2 (H1P ON) BS1 Press BS1. BS1 [5 s] Press BS1 for at least 5 s. INFORMATION If you get confused in the middle of the process, press BS1 to return to the default situation.
-
Page 112: Commissioning
Commissioning 21 Commissioning In this chapter 21.1 Overview: Commissioning ..............................112 21.2 Precautions when commissioning............................112 21.3 Checklist before commissioning............................. 113 21.4 About the test run .................................. 114 21.5 To perform a test run (7-segment display) ..........................114 21.5.1 Test run checks............................... 115 21.5.2 Correcting after abnormal completion of the test run .................. -
Page 113: Checklist Before Commissioning
Commissioning NOTICE Be sure to turn ON the power 6 hours before operation in order to have power running to the crankcase heater and to protect the compressor. During test operation, the outdoor unit and the indoor units will start up. Make sure that the preparations of all indoor units are finished (field piping, electrical wiring, air purge, ...). -
Page 114: About The Test Run
Commissioning Oil leak Check the compressor for oil leakage. If there is an oil leak, try to repair the leak. If the repairing is unsuccessful, call your local dealer. Air inlet/outlet Check that the air inlet and outlet of the unit is NOT obstructed by paper sheets, cardboard, or any other material. -
Page 115: Test Run Checks
Commissioning 6 Turn ON the remote controller of the air conditioner. See the operation manual of the indoor unit for more information about the temperature settings. 7 Check that the unit functions without error codes. See "21.5.1 Test run checks" [ 115]. - Page 116 Commissioning The remote controller displays … Description Nothing Check that: ▪ Power supply of indoor unit is turned ▪ The cable of the power supply cable is not broken and connected correctly. ▪ The cable of the remote controller (indoor unit) is not broken and connected correctly.
- Page 117 Commissioning Check operation parameters Action Push button 7-segment display Check that the 7-segment — display is OFF. This is the initial condition after the communication has been confirmed. To return to the initial state of the 7-segment display, push BS1 once, or leave the unit as is for at least 2 hours.
-
Page 118: Correcting After Abnormal Completion Of The Test Run
Commissioning 21.5.2 Correcting after abnormal completion of the test run The test operation is only completed if there is no malfunction code displayed on the user interface or outdoor unit 7‑segment display. In case of a displayed malfunction code, perform correcting actions as explained in the malfunction code table. - Page 119 Commissioning ▪ Name and address of fire department, police and hospital ▪ Name, address and day and night telephone numbers for obtaining service Location of the logbook The logbook shall either be kept in the machinery room, or the data shall be stored digitally by the operator with a printout in the machinery room, in which case the information shall be accessible to the competent person when servicing or testing.
-
Page 120: Hand-Over To The User
Hand-over to the user 22 Hand-over to the user Once the test run is finished and the unit operates properly, please make sure the following is clear for the user: ▪ Make sure that the user has the printed documentation and ask him/her to keep it for future reference. -
Page 121: Maintenance And Service
Maintenance and service 23 Maintenance and service NOTICE Maintenance MUST be done by an authorized installer or service agent. We recommend performing maintenance at least once a year. However, applicable legislation might require shorter maintenance intervals. NOTICE Applicable legislation on fluorinated greenhouse gases requires that the refrigerant charge of the unit is indicated both in weight and CO equivalent. -
Page 122: To Release Refrigerant
Maintenance and service A9P/A10P/A11P/A4P Outdoor unit, switchbox left A10P Outdoor unit, switchbox middle A11P Outdoor unit, switchbox right Capacity up unit, switchbox 3 To prevent damaging the PCB, touch a non-coated metal part to eliminate static electricity before pulling out or plugging in connectors. 4 Pull out junction connectors for the fan motors in the outdoor unit before starting service operation on the inverter equipment. -
Page 123: Troubleshooting
Troubleshooting 24 Troubleshooting In this chapter 24.1 Overview: Troubleshooting ..............................123 24.2 Precautions when troubleshooting............................123 24.3 Solving problems based on error codes..........................123 24.3.1 Error codes: Overview............................124 24.1 Overview: Troubleshooting Before troubleshooting Carry out a thorough visual inspection of the unit and look for obvious defects such as loose connections or defective wiring. -
Page 124: Error Codes: Overview
Troubleshooting 24.3.1 Error codes: Overview In case other error codes appear, contact your dealer. Main code LRYEN10* LRNUN5* Cause Solution Electrical leakage Correct the field wiring and connect ground wiring. — Stop valves are closed. Open the stop valve on both the gas and liquid side. - Page 125 Troubleshooting Main code LRYEN10* LRNUN5* Cause Solution Malfunction of discharge/ Check connection on PCB or compressor body temperature actuator. sensor For LRYEN10*: ▪ (R31T) - A1P (X19A) ▪ (R32T) - A1P (X33A) ▪ (R33T) - A2P (X19A) ▪ (R91T) - A1P (X19A) ▪...
- Page 126 Troubleshooting Main code LRYEN10* LRNUN5* Cause Solution Malfunction of high pressure sensor Check connection on PCB or actuator. For LRYEN10*: ▪ (S1NPH) – A2P (X31A) For LRNUN5*: ▪ (S1NPH) – A1P (X31A) Malfunction of low pressure sensor Check connection on PCB or actuator.
- Page 127 Troubleshooting Main code LRYEN10* LRNUN5* Cause Solution — Replaced all air conditioner indoor Check the communication cable and units after confirmed conduct operation after all communication communication cables are corrected. If an air conditioner indoor unit is — Added any air conditioner indoor installed: units after confirmed communication...
-
Page 128: Disposal
Disposal 25 Disposal NOTICE Do NOT try to dismantle the system yourself: dismantling of the system, treatment of the refrigerant, oil and other parts MUST comply with applicable legislation. Units MUST be treated at a specialised treatment facility for reuse, recycling and recovery. LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂... -
Page 129: Technical Data
Technical data 26 Technical data A subset of the latest technical data is available on the regional Daikin website (publicly accessible). The full set of latest technical data is available on the Daikin Business Portal (authentication required). In this chapter 26.1... - Page 130 Technical data (mm) 1500 ≥300 ≥500 ≥100 ≥500 ≥300 ≥500 ≥10 ≥50 ≥200 ≥300 ≥500 ≥100 ≥500 ≥300 ≥20 ≥100 ≥400 ≥10 ≥50 ≥200 Maintenance space Possible patterns with installation spaces in case of a single outdoor unit. Possible patterns with installation spaces in case of an outdoor unit connected to a capacity up unit. H1 (actual height) –1500 mm H2 (actual height) –500 mm Front side = 500 mm + ≥h1/2...
- Page 131 Technical data INFORMATION Further specifications can be found in the technical engineering data. LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide CO₂ Conveni-Pack outdoor unit 4P605460-1 – 2020.08...
-
Page 132: Piping Diagram: Outdoor Unit
Technical data 26.2 Piping diagram: Outdoor unit 15.9 C1220T-H 15.9 C1220T-H 19.1 C1220T-H 15.9 C1220T-H Pressure sensor Compressor with accumulator Pressure switch Heat exchanger Check valve Oil separator Stop valve Liquid receiver Service port Plate heat exchanger Safety valve Distributor Electronic expansion valve Oil and injection pipe Solenoid valve... -
Page 133: Piping Diagram: Capacity Up Unit
Technical data 26.3 Piping diagram: Capacity up unit 15.9 C1220T-H 15.9 C1220T-H Pressure sensor Plate heat exchanger Pressure switch Heat exchanger Check valve Oil separator Service port Liquid receiver Electronic expansion valve Distributor Filter Refrigerant pipe Propeller fan Oil and injection pipe Compressor with accumulator LRYEN10A7Y1+LRNUN5A7Y1 Installer and user reference guide... -
Page 134: Wiring Diagram: Outdoor Unit
Technical data 26.4 Wiring diagram: Outdoor unit The wiring diagram is delivered with the unit: ▪ For the outdoor unit: At the inside of the left electrical component box cover. ▪ For the capacity up unit: At the inside of the electrical component box cover. Outdoor unit Notes: This wiring diagram applies only to the outdoor unit. - Page 135 Technical data Printed circuit board (M1F) A10P Printed circuit board (M2F) A11P Printed circuit board (M3F) A12P Printed circuit board (sub) A13P Printed circuit board (ABC I/P 1) A14P Printed circuit board (earth leakage detector) E1HC Crankcase heater (M1C) E2HC Crankcase heater (M2C) E3HC Crankcase heater (M3C)
- Page 136 Technical data S3PH Pressure switch (high pressure protection) (M3C) Operation switch (REMOTE/OFF/ON) Y11S~Y16S Solenoid valve (discharge, cooling or defrost) Y21S~Y26S Solenoid valve (discharge, heating) Y31S~Y34S Solenoid valve (suction, cooling) Y41S~Y44S Solenoid valve (outdoor unit (heat exchanger coil) evaporation) Electronic expansion valve (transcritical) Electronic expansion valve (economiser) Electronic expansion valve (oil return) (M1C) Electronic expansion valve (oil return) (M2C)
- Page 137 Technical data Colours: Black Blue White Green Yellow Legend: Printed circuit board (main) Printed circuit board (M1C) Printed circuit board (noise filter) (M1C) Printed circuit board (M1F) Printed circuit board (ABC I/P 1) Printed circuit board (sub) BS1~BS3 Push buttons (mode, set, return) C503, C506 Capacitor (A2P) C507...
- Page 138 Technical data Thermistor (M1C discharge) Thermistor (de-icer) Thermistor (liquid separator outlet) Thermistor (plate heat exchanger outlet) Thermistor (liquid pipe) Thermistor (M1C body) S1NPH High pressure sensor S1NPL Low pressure sensor (air conditioner) S1NPM Medium pressure sensor S1PH Pressure switch (high pressure protection) (M1C) Operation switch (REMOTE/OFF/ON) Current sensor (A1P) Power module (A2P, A4P)
-
Page 139: Glossary
