Amazone CatrosXL 4003-2 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Amazone Manuals
  4. Tiller
  5. CatrosXL 4003-2
  6. Operating instructions manual

Amazone CatrosXL 4003-2 Operating Instructions Manual

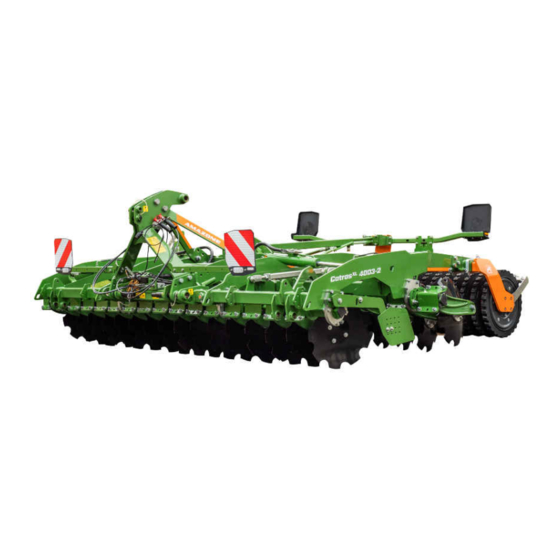

Mounted compact disc cultivator
Hide thumbs Also See for CatrosXL 4003-2:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating instructions
Mounted compact disc cultivator
XL
Catros
4003-2
XL
Catros
5003-2
XL
Catros
6003-2
MG6829-EN-II | B.1 | 20.05.2020
Original operating instructions
