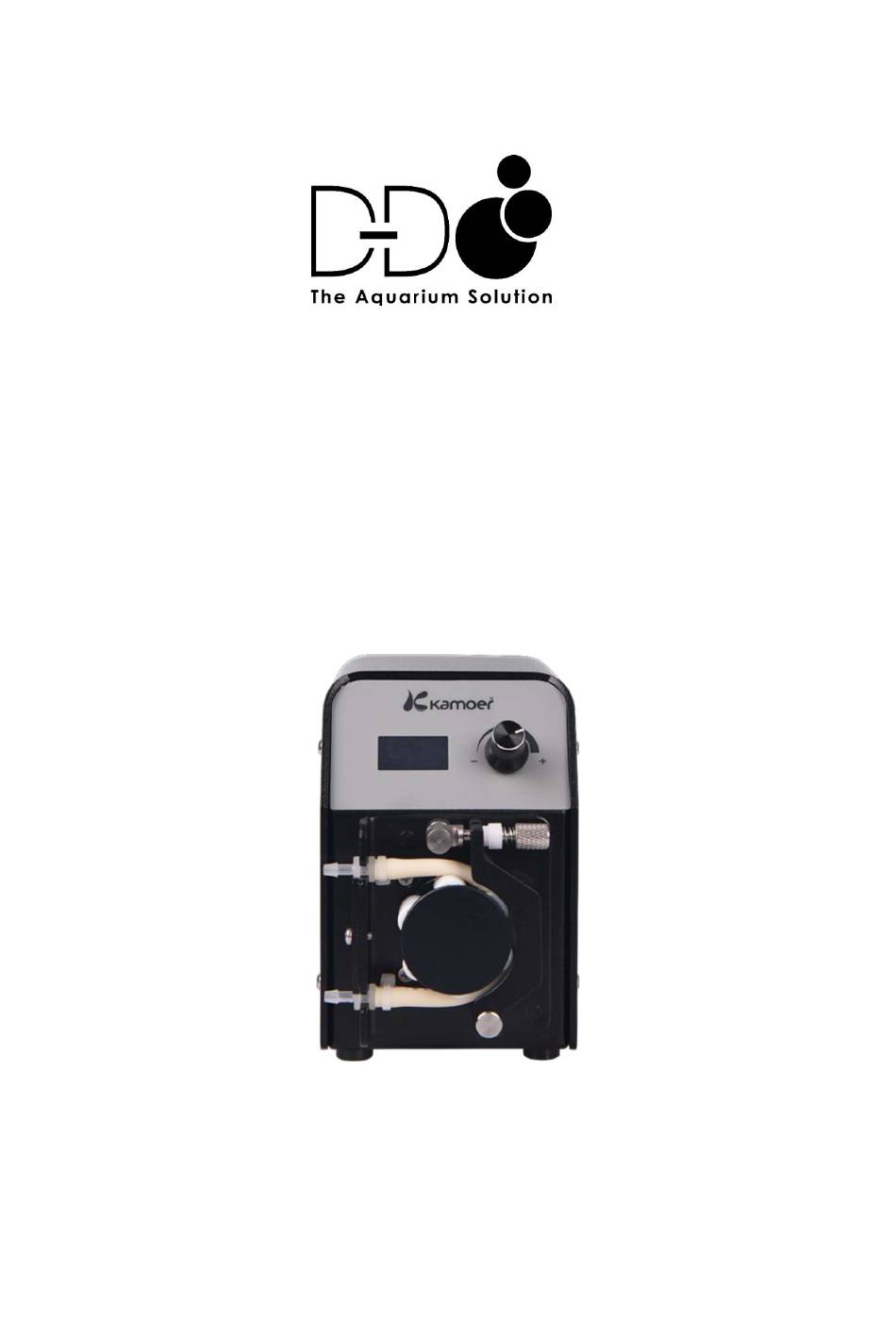

- Page 1 FX-STP WIFI PERSTALTIC PUMP USER MANUAL...
-
Page 2: Table Of Contents
Index Product Information Introduction Product Features Unpacking Product Layout Installation Positioning the pump Installing the App for Wi-Fi control Register your cloud account Connect your pump to the app Programming the pump in the app Manual app override Manual pump operation Calibration Using the app Manual calibration... -
Page 3: Product Information
Product Information Introduction The FX-STP is a high precision peristaltic pump with Wi-Fi control. This unit is designed for continuous running and is perfectly suited for suppling water to a Calcium reactor or Nitrate reactor. The durable stepper motor and robust design make this a low maintenance, reliable unit. Product features ... -
Page 4: Product Layout
Product Layout 1.LCD Display 2.Controll Dial 3. Pump head adjustment screw 4. Inlet 5. Outlet Installation Positioning the pump The FX-STP is a self-priming pump so can sit above or below the water level in the aquarium or sump. To avoid excess pressure on the pump head the tubing should be kept as short as possible. Please carefully check that the inlet and outlet tube connections are correct on the pump head and that the hoses are pushed fully onto connections before installation. -
Page 5: Installing The App For Wi-Fi Control
Installing the Kamoer Remote app for Wi-Fi control Option 1: Scan the QR code and download the app corresponding to the icon below. Android Option 2: Apple users visit the Apple App Store, Android users visit the Google Play store, search for "Kamoer Remote", and download the app with the corresponding icon above. -
Page 6: Connect Your Pump To The App
Connecting the pump to the Kamoer Remote app Make sure your mobile device is connected to your home network, the location services on the mobile device are enabled and that the Kamoer Remote app permissions are set correctly from your mobile devices’... -
Page 7: Programming The Pump In The App
The screen will display ‘Setting…’ to show it is ready to connect, in the app tap on the blue bar at the bottom of the screen to initiate the connection. After the connection is successful, the app will confirm the successful connection and the display on the pump will return to the Wi-Fi settings menu. -
Page 8: Manual App Override
Manual app override It is possible to manually override the app settings on the pump. When changing the settings via the app ‘Wi-Fi Control’ will be displayed at the top of the LCD on the pump. This will remain for approximately 30 seconds when an app setting has been changed. After this the pump LCD will display ‘Work Mode’. -
Page 9: Manual Calibration
When calibrating the pump, it is best to use a head speed setting that is appropriate to the flow rate you will be operating. For example, if you are planning to set the pump at a flow rate of 60ml/min then use a rotation speed of 150rpm. -
Page 10: Advanced Settings
Select the calibration speed, then using the control dial change the speed until the flow rate at the bottom of the screen is set roughly at the normal programmed operating flow rate. Make sure that the inlet hose is submerged underwater, the outlet hose is in a suitable measuring cylinder for the calibration volume and that all hoses are primed fully with no air bubbles. -
Page 11: Renaming The Pump
In this you can: Rename the pump. In settings tap on ‘Name’ and the settings page will open. Enter the new name and tap ‘Save’ in the top right corner. Update firmware. If the firmware on the device is up to date ‘No Update’ will be displayed. If updates are available tap on the update and follow the instructions on screen. -
Page 12: Manual Reset Of The Pump Program
Manual Reset of the dosing pump program The FX-STP can be reset manually in the settings option on the pump itself. Enter the menu, select settings then select restore and OK. This will remove the program settings from the FX-STP. If the pump is connected to the app the settings in the app will also be removed when you log in to the device. - Page 13 WARRANTY: Should any defect in material or workmanship be found within 12 months of the date of purchase D-D The Aquarium Solution Ltd undertakes to repair, or at our decision, replace the defective part free of charge. Our policy is one of continual technical improvement and we reserve the right to modify and adjust the specification of our products without prior notification.
