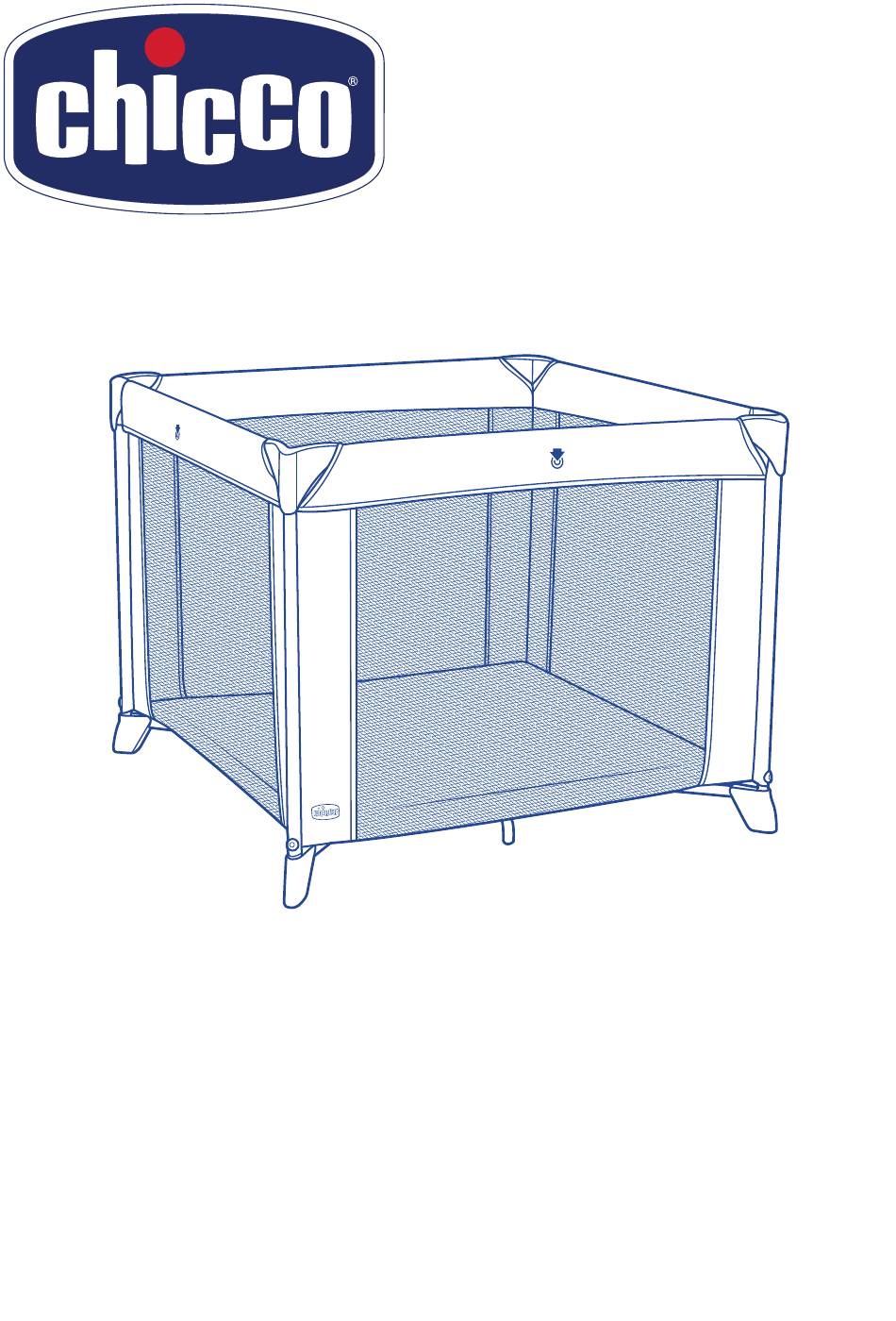

- Page 1 Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. ™ Tot Quad Playpen Owner's Manual ©2020 Artsana USA, INC. 06/20 IS0196E_01...
- Page 2 • Use ONLY the mattress provided down. Make sure latches are secure. by Chicco. Never add a pillow, • DO NOT place child in playpen comforter, or another mattress for unless all top rails are securely padding.
- Page 3 WARNING Failure to follow these warnings and the instructions could result in serious injury or death STRANGULATION HAZARDS: • NEVER use additional mattresses, padding, sheets, or other objects that will permit your child to climb out, fall and/or be injured. If you choose to ignore this warning, then remove additional padding, large toy, and other objects that could serve as steps...
-
Page 4: Parts List
Parts List A. - Tot Quad Frame B. - Mattress Pad C. - Carry Bag... - Page 5 Setting Up the Playpen WARNING Before use remove and dispose of any plastic bags and keep them out of reach of children to avoid the danger of suffocation. Failure to follow these warnings and instructions could result in serious injury or death. Make sure top rails are locked and secure with the center floor hub pushed down before use.
- Page 6 Setting Up the Playpen 2. With the Tot Quad Frame standing upright, pull the corners apart as shown. If needed, pull up on the center floor hub release strap to lift the floor.
- Page 7 Setting Up the Playpen 3. The center floor hub must be pulled up to allow the top rails to lock. With the center hub raised even with the 4 corners, pull up on the top rail center joint to lock them into the open position.
- Page 8 Setting Up the Playpen 4. Push down on the center floor hub until the bottom of the playpen is flat.
- Page 9 Setting Up the Playpen 5. Install Mattress Pad, padded side up. Do not use playpen without Mattress Pad and make sure to fold hook and loop strap and D-ring underneath Mattress Pad . Secure the Mattress Pad corners to the frame as shown in steps 6-7.
- Page 10 Setting Up the Playpen 6. Locate 4 Mattress Pad strap holes on the floor of the playpen. Thread the 4 hook and loop straps through to the floor of the playpen as shown.
- Page 11 Setting Up the Playpen 7. Turn the playpen on its side and pull the straps through the floor of the playpen. Thread the straps through the slot in the playpen floor as shown. Pull hook and loop strap tight and then attach together to secure Mattress Pad.
- Page 12 Packing Up the Playpen 9. Undo the hook and loop straps from the frame and remove Mattress Pad from playpen. Pull up on the center floor hub release strap and lift the center hub up as far as possible.
- Page 13 Packing Up the Playpen 10. Lift and squeeze the Top Rail center release lock, then push down. Release all of the Top Rail locks on all 4 sides. If the Top Rail does not unlock pull up on the center hub. Center floor hub must be even with top rails.
- Page 14 Packing Up the Playpen 11. Pull up on the center floor hub release strap and pull the playpen legs towards the center.
- Page 15 Packing Up the Playpen 12. Turn unit upright with feet on the floor. Wrap Mattress Pad around fold- ed playpen. Thread fastening strap through ring on Mattress Pad.
- Page 16 Packing Up the Playpen 13. Place the playpen in the Carry Bag. Pull up the sides of the Carry Bag and close the zipper. Make sure the Handle on the Mattress Pad is out.
- Page 17 Packing Up the Playpen 14. To keep instructions for future use: Place the manual in the storage sleeve located on the underside of the Mattress Pad.
-
Page 18: Troubleshooting Guide
If needed, pull up on the center floor hub release strap. If necessary, pull the release strap up with one hand and lock rails one at a time. If you are still unable to lock the top rails, call Chicco Customer Service (pg. 20). THE FLOOR JOINTS DO NOT FLATTEN: Turn playpen upside down and make sure joints are free from foreign objects. -
Page 19: Cleaning And Maintenance
Periodically check the playpen for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Chicco replacement parts. Keep the playpen in a dry place. If playpen becomes wet open playpen and allow to dry completely. - Page 20 For More Information If you have any questions or comments about this product, or are missing any of the parts please do not return this product to the store. Contact us in one of the following ways: (877)-424-4226 info.usa@artsana.com www.chiccousa.com 1826 William Penn Way Lancaster, PA 17601...
