INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING

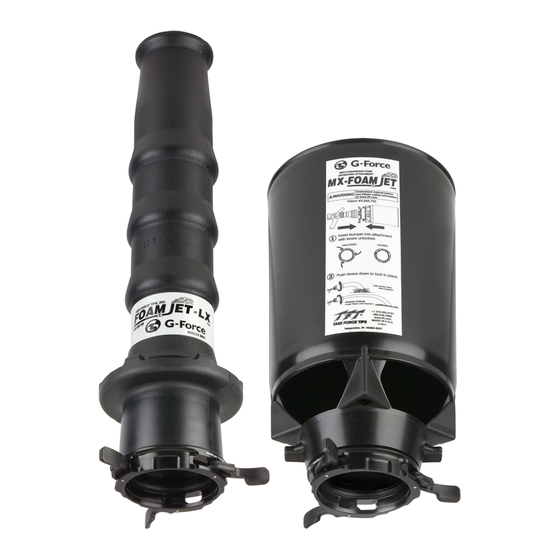

FoamJet
MX-FoamJet
MX-FoamJet
Foam Nozzle
TASK FORCE TIPS LLC
MADE IN USA • tft.com
©Copyright Task Force Tips LLC 1999-2019
Understand manual before use. Operation of this device without understanding the manual
and receiving proper training is a misuse of this equipment. Obtain safety information at
tft.com/serial-number
FoamJet-LX
FJ-LX-M
FoamJet-MX
FJ-LX-M2
MANUAL: Foam Aspirators
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-025 May 20, 2019 Rev17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TFT FoamJet Series
Summary of Contents for TFT FoamJet Series
- Page 1 MX-FoamJet FJ-LX-M MX-FoamJet FoamJet-MX Foam Nozzle FJ-LX-M2 TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 • 219-462-6161 • Fax 219-464-7155 MADE IN USA • tft.com ©Copyright Task Force Tips LLC 1999-2019 LIA-025 May 20, 2019 Rev17...
- Page 2 DANGER PERSONAL RESPONSIBILITY CODE The member companies of FEMSA that provide emergency response equipment and services want responders to know and understand the following: 1. Firefi ghting and Emergency Response are inherently dangerous activities requiring proper training in their hazards and the use of extreme caution at all times.
- Page 3 Foam expansion ratios from the MX-Foamjet series may be adjusted by changing the bumper position of the nozzle. As the nozzle bumper is rotated back to the wide fog position, higher expansion ratios will be produced, but with reduced stream reach. Rotating the nozzle bumper into straight stream will produce lower expansion ratios, but with longer reach.
- Page 4 Series FOAMJET Description Low Expansion Aspirating Attachment Model FJ-DQ FJ-GD FJ-U FJ-HM FJ-H For Nozzle Series 1 “ QuadraFog 1” G-Force Ultimatic MidMatic Handline 5 - 40 GPM 10-125 GPM 50-350 GPM 10 - 100 GPM Mid-Force (fl ow range) Dual-Force Metro 1 70-250 GPM...
- Page 5 Series MX-FOAMJET Description Multi-Expansion Foam Aspirating Attachment Model FJ-MX-D For Nozzle Series Twister 1” 10-24 GPM (fl ow range) 10-40 GPM CLASS A BEST AFFF BEST Alcohol Resistant AFFF BEST PROTEIN, FP, FFFP BETTER Attachment LOCKED UNLOCKED Method PUSH Insert bumper into attachment with ring unlocked.
- Page 6 Series MX-FOAMJET Description Multi-Expansion Foam Aspirating Attachment Model FJ-MX-F FJ-MX- FJ-UMX FJ-MX-FQ FJ-MX-FT FJ-MX- FJ-MX-G FJ-HMX For Nozzle Series 1.5” Twister 1” QuadraFog Ultimatic QuadraFog ThunderFog Mid-Matic G-Force Handline 1.5” Series 50 - 350 20-60 GPM 5 - 40 GPM 10 - 125 GPM Mid-Force 30 - 150 GPM...
- Page 7 Series FOAMJET-LX Description Low Expansion Aspirating Attachment Model FJ-LX-U FJ-LX-G FJ-LX-FQ FJ-LX-HM FJ-LX-M FJ-LX-M2 For Nozzle Series Ultimatic G-Force 1.5” QuadraFog Mid-Matic Master Stream M-F* series of 1000, 1250S, and Master Stream 10 - 125 GPM 30 - 150 GPM 30 - 125 GPM Mid-Force (fl...
- Page 8 Series FOAMJET-MX Description Low-Expansion Aspirating Attachment Model FJ-MX-MD For Nozzle Series MD Series: 100 - 500 GPM (Max-Force, Max-Matic, Max-Flow) ZN Series: 350, 500 & 750 GPM Industrial Nozzle (fl ow range) CLASS A BETTER AFFF GOOD Alcohol Resistant AFFF GOOD PROTEIN, FP, FFFP BETTER...
-
Page 9: Attachment Method
Series MX-FOAMJET Description Medium Expansion Foam Nozzle Model FJ-MX-060 FJ-MX-095 FL-MX-125 For Nozzle Series Operating Pressure: 60 PSI Operating Pressure: 60 PSI Operating Pressure: 60 PSI Flow: 60 GPM Flow: 95 GPM Flow: 125 GPM (fl ow range) CLASS A BEST AFFF BEST... - Page 10 Basic Guide To Foam Selection and Use Refer to instructions and guidelines from foam manufacturer and the fi re service for specifi c uses and application techniques. SOLID FUEL - CLASS A Solid fuel with wettable cellular fi bers that leave ash behind when burned. Examples: wood, paper, straw, brush, etc. CLASS A Recommended using class A foam that meets USDA Forest Service “Interim Requirements for Foam for Wildland Fires, Aircraft or Ground Application”...
-
Page 11: Warranty
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. - Page 12 RECORDS A record of testing and repairs must be maintained from the time the nozzle is purchased until it is discarded. Each TFT nozzle is engraved with a unique serial number which, if so desired, can be used to identify nozzle for documentation purposes.
