G-Force
INSTRUCTION FOR INSTALLATION, OPERATION, AND MAINTENANCE
DANGER
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2010-2024
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.

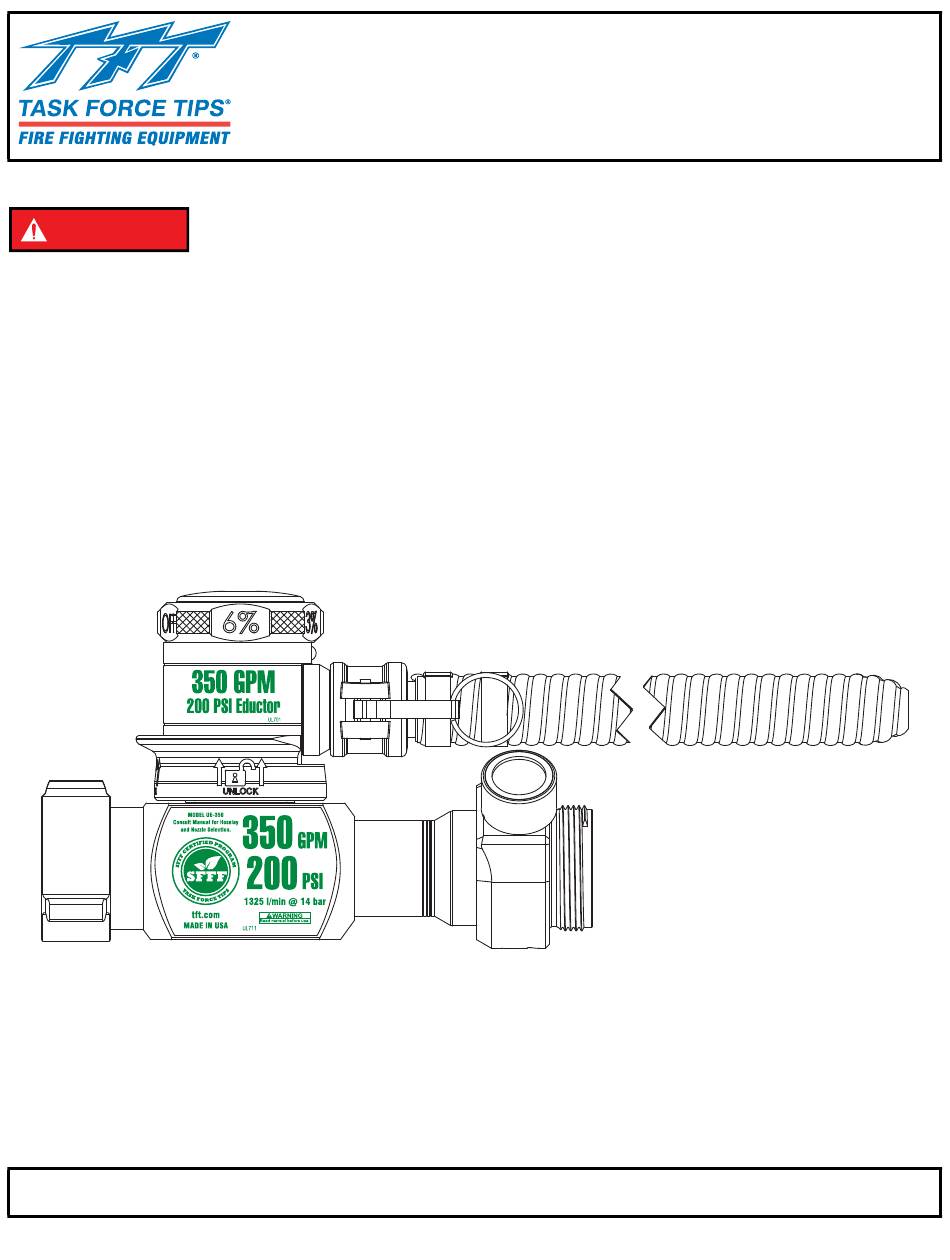

EDUCTOR
350 SERIES IN-LINE
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
1
LIU-360 April 17, 2024 Rev06
Advertisement
Table of Contents
Related Manuals for TFT 350 Series
Summary of Contents for TFT 350 Series
- Page 1 Understand manual before use. Operation of this device without understanding the manual and DANGER receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/ serial-number. This equipment is intended for use by trained and qualified emergency services personnel for firefighting.
- Page 2 DANGER PERSONAL RESPONSIBILITY CODE The member companies of FEMSA that provide emergency response equipment and services want responders to know and understand the following: Firefighting and Emergency Response are inherently dangerous activities requiring proper training in their hazards and the use of extreme caution at all times. 2.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1.0 MEANING OF SAFETY SIGNAL WORDS 2.0 SAFETY 3.0 GENERAL INFORMATION 3.1 USE WITH SALT WATER 3.2 VARIOUS MODELS AND TERMS 4.0 INSTALLATION 5.0 OPERATING INSTRUCTIONS 5.1 CLEANING INSTRUCTIONS 5.2 CONCENTRATE INTAKE HOSE OPTIONS 6.0 USE WITH FOAM 6.1 FOAM SELECTION 6.2 FOAM ATTACHMENT OPTIONS 6.3 FOAM CONSUMPTION... -
Page 4: Meaning Of Safety Signal Words
MEANING OF SAFETY SIGNAL WORDS A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular hazard. Per ANSI Z535.6, the definitions of the four signal words are as follows: DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. -
Page 5: General Information
VARIOUS MODELS AND TERMS TFT 350 Series Eductors are available in several flows and with a variety of inlet couplings. These must be specified at the time of order. Consult the factory for special thread requests. -
Page 6: Installation
INSTALLATION The eductor body is equipped with four 3/8-16 x ¾” deep threaded mounting holes. To mount the unit, attach to the desired location using bolts with enough length to provide at least ½” engagement with the unit. See below for mounting hole spacing. 2 3/4"... -
Page 7: Use With Foam
USE WITH FOAM FOAM SELECTION Actual foam concentrations vary with changes in water flow, foam concentrate temperature and viscosity. The user must verify that the concentrate’s performance is suitable for use in their application. Refer to training approved by the AHJ regarding foam concentrate use. In all cases, the manufacturer’s recommendations must be followed. -
Page 8: Foam Supply Logistics
FOAM SUPPLY LOGISTICS Lack of foam can place operator at risk of injury or death. To reduce the risk of injury due to lack DANGER foam: • Establish foam flow before advancing into hazardous situations. • Keep an adequate supply of foam concentrate on hand. •... -
Page 9: Maximum Hose Lay
Air-aspirating devices, such as the TFT FOAMJET, allow a wider selection of foam concentrates to be used, and can produce a better quality of finished foam. The final expansion ratio and, amount of finished foam, depends on the type of foam concentrate being used. -
Page 10: Warranty
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. -
Page 11: Trouble Shooting
Foam has thickened due to cold temperatures Use a foam suitable for temperatures Table 11.0 12.0 EXPLODED VIEWS AND PARTS LISTS Exploded views and parts lists are available at tft.com/serial-number. ©Copyright Task Force Tips LLC 2010-2024 LIU-360 April 17, 2024 Rev06... -
Page 12: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2010-2024 LIU-360 April 17, 2024 Rev06...
