INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE
Understand manual before use. Operation of this device without understanding the manual and
DANGER
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.

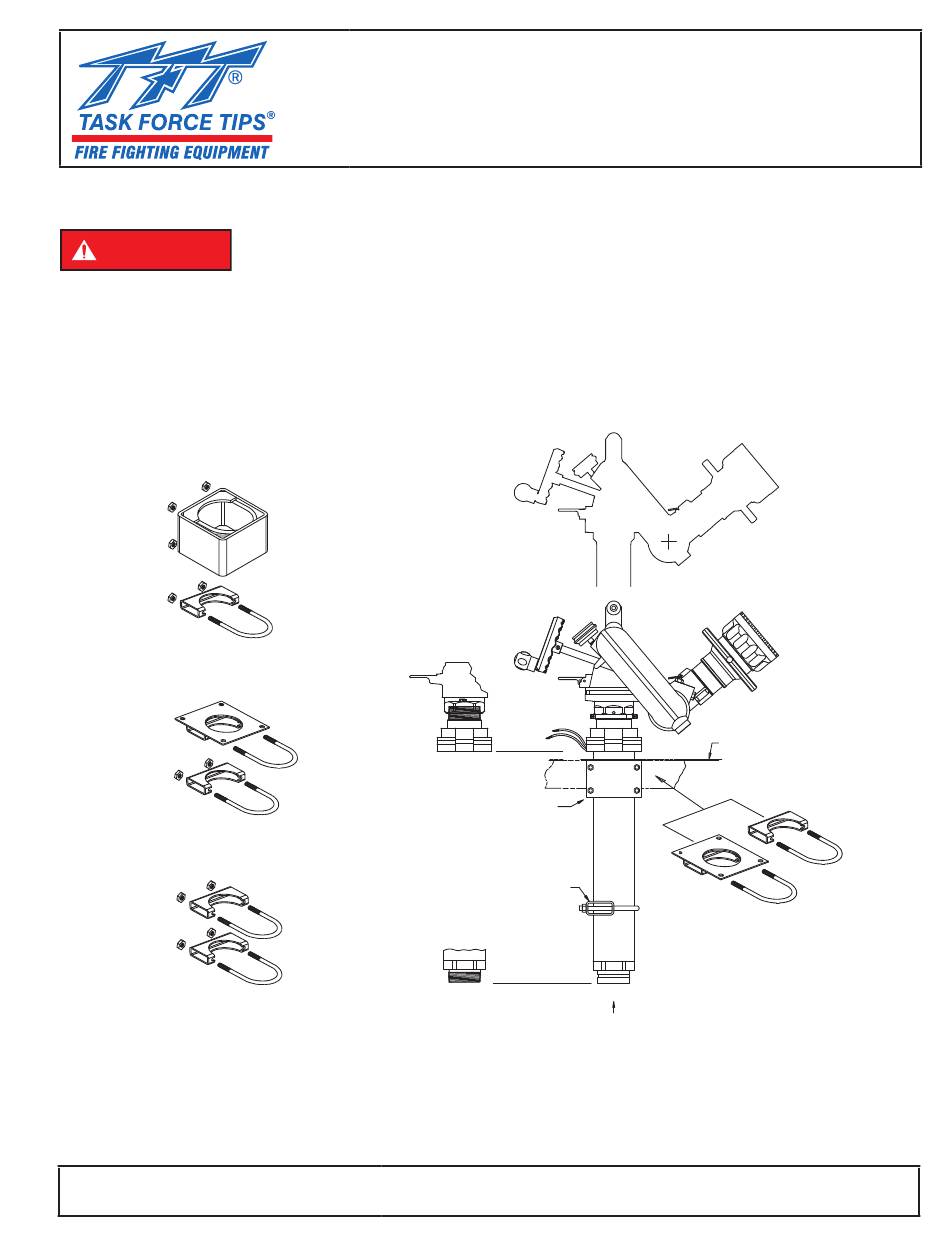

To make the Extend-A-Gun as versatile as
possible, three mounting bracket kits are offered.
Each kit has a different upper bracket. The lower
bracket is the same for all three.
XGB-13 TUBE/SADDLE
BRACKET SET
XGB-23 PLATE/SADDLE
BRACKET SET
XGB-33 SADDLE/SADDLE
BRACKET SET
TASK FORCE TIPS LLC
MADE IN USA • TFT.com
©Copyright Task Force Tips LLC 2002-2020

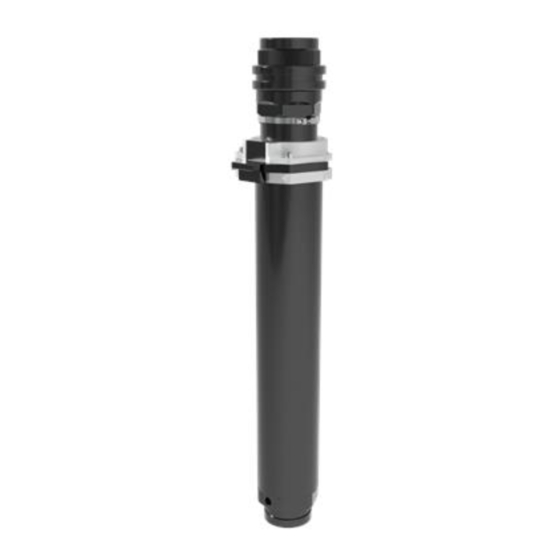

Manually Operated Extend-A-Gun
Telescoping Waterway for Deck Mounted Monitors
INTEGRAL
** 3" NPT
3" NPT
CROSSFIRE
MALE OUTLET
OUTLET
TUBE BRACKET
TFT PART XGB-13
SADDLE BRACKET
3" NPT MALE
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
MODEL XG18
SHOWN WITH TFT MASTER NOZZLE
AND CROSSFIRE DECK GUN
TRUCK SURFACE
ALTERNATE:
1) MOUNTING PLATE, 9" SQ.
TFT PART XGB-23
2) SADDLE BRACKET
TFT PART XGB-33
3" VICTAULIC MALE
FROM PUMP
EXTENDED
RETRACTED
LIX-518 August 17, 2020 Rev13
