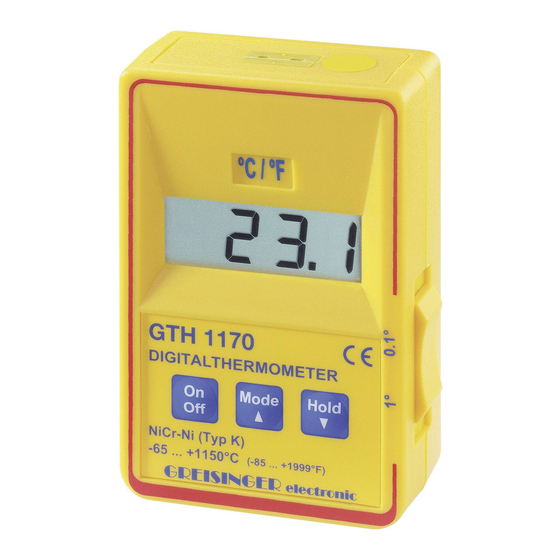

GREISINGER GTH 1170 Operating Manual

GREISINGER GTH 1170 Operating Manual

Digital quick response thermometer

Advertisement

Quick Links

H56.0.01.6C-05
Operating Manual For Digital Quick Response Thermometer

Specification

Measuring range:
Precision:
(±1 Digit)
(at nominal temperature = 25°C)
Temperature drift:
Point of comparison:
Probe connection:
Offset- and Scale:
Measuring frequency:
Display:
Operation elements:
Min-/Max-value memory: Min and max measured value are stored
Hold key:
Operating conditions:
Storage temperature:
Power supply:
Power consumption:
Low battery warning:
Auto off function:
Housing:
Weight:
EMC:

Safety instructions:

This device has been designed and tested in accordance to the safety regulations for electronic devices.
However, its trouble-free operation and reliability cannot be guaranteed unless the standard safety measures and special safety
advises given in this manual will be adhered to when using it.
1. Trouble-free operation and reliability of the device can only be guaranteed if it is not subjected to any other climatic conditions
than those stated under "Specification".
If the device is transported from a cold to a warm environment condensation may result in a failure of the function. In such a case
make sure the device temperature has adjusted to the ambient temperature before trying a new start-up.
2. If device is to be connected to other devices the circuitry has to be designed most carefully. Internal connection in third party
devices (e.g. connection GND and earth) may result in not-permissible voltages impairing or destroying the device or another
device connected.
3. If there is a risk whatsoever involved in running it, the device has to be switched off immediately and to be marked accordingly to
avoid re-starting. Operator safety may be a risk if:
there is visible damage to the device
the device is not working as specified
the device has been stored under unsuitable conditions
In case of doubt, please return device to manufacturer for repair or maintenance.
4. Warning: Do not use this product as safety or emergency stop devices or in any other application where failure of the product
could result in personal injury or material damage.
Failure to comply with these instructions could result in death or serious injury and material damage.
5. The battery has to be taken out, when storing device above 50°C.
It is recommended to take the battery out, when storing device for a longer period of time.

Disposal notes

This device must not be disposed as „residual waste‟. To dispose this device, please send it directly to us (adequately stamped). We
will dispose it appropriately and environmentally friendly.
GREISINGER
D - 93128 Regenstauf, Hans-Sachs-Straße 26
 +49 (0) 9402 / 9383-0  +49 (0) 9402 / 9383-33 
GTH 1170
-65.0 ..+199.9°C,
resolution 0.1°C
-65 .. +1150°C,
resolution 1°C
-65.0°C ..+199.9°C: ±0.05% of meas. value ±0.2% full scale
-65°C ... +1150°C:
±0.1% of meas. value ±0.2% full scale
0.01%/K
±0.3 °C
standard flat-pin plug suitable for all NiCr-Ni (type K) probes
digital offset and scale adjustment via menu setting
3 measurings per second
approx. 13 mm high, 3½-digit LCD
3 keys for ON/OFF, min-/max-value display, hold
the current measuring will be „frozen"
-25 to 50°C; 0 to 80 %RH (non-condensing)
-25 to 70°C
9V battery type IEC 6F22 (in scope of supply)
approx. 150µA
"BAT" automatically displayed if battery is low
when the Auto Off Function is activated, the device switches
automatically off, if keypad is not attended for a longer time
(selectable 1..120 min).
impact resistant ABS-housing: approx.106 x 67 x 30 mm
approx. 135 g incl. battery
The device corresponds to the essential protection ratings
established in the Regulations of the Council for the Approximation of Legislation for the member
countries regarding electromagnetic compatibility (2004/108/EG). Additional fault: <1%
resp. -85.0 ... +199.9°F, resolution 0.1°F
resp. -85 ... +1999°F,
electronic GmbH
resolution 1°F
WEEE-Reg.-Nr. DE93889386
info@greisinger.de
page 1 of 2
