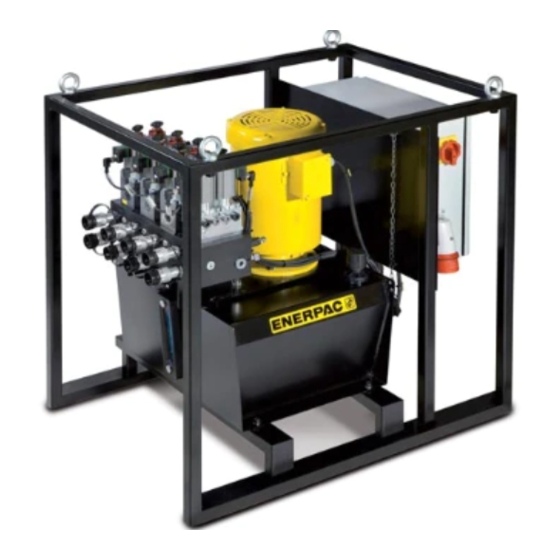

Enerpac SFP Series Operating Manual

L14004710 rev: preliminary F
Index:
1.0 SAFETY & GENERAL INFORMATION............1
2.0 SAFETY PRECAUTIONS.................................1
3.0 SPECIFICATIONS............................................2
4.0 INSTALLATION ................................................3
5.0 OPERATION.....................................................4
6.0 MAINTENANCE................................................5
7.0 TROUBLESHOOTING GUIDE .........................5
8.0 ATTACHED DOCUMENTATION TABLE .........6
1.0 SAFETY & GENERAL INFORMATION
Read all instructions,
cautions carefully.
precautions to avoid personal injury or
property damage during system operation.
Enerpac cannot be responsible for damage or injury
resulting from unsafe product use, lack of maintenance
or incorrect product and/or system operation. Contact
Enerpac when in doubt as to the safety precautions
and operations. If you have never been trained on
high-pressure hydraulic safety, consult your distribution
or service center for a free Enerpac Hydraulic safety
course.
Failure to comply with the following cautions and
warnings could cause equipment damage and personal
injury.
A CAUTION is used to indicate correct operating or
maintenance procedures and practices to prevent
damage to, or destruction of equipment or other
property.
A WARNING indicates a potential danger that requires
correct procedures or practices to avoid personal
injury.
A DANGER is only used when your action or lack of
action may cause serious injury or even death.
Hyquip Limited New Brunswick Street Horwich Bolton Lancashire BL6 7JB UK
Company Registered in England No: 4167649 VAT Registration No: 732 5692 25 BS EN ISO 9001:2008 No: LRQ 0964389
+44 (0)1204 699 959
enquiries@hyquip.co.uk
03/07/14

2.0 SAFETY PRECAUTIONS

warnings and
Follow all safety
raised or lowered, it must always be blocked
mechanically.
Never use a hydraulic cylinder as a shim or spacer in
any lifting or pressing application.
Overloading causes equipment failure and possible
personal injury.
equipment damage and/or personal injury.
Install pressure gauges in the system to monitor
operating pressure. It is your window to what is
happening in the system.
1
www.hyquip.co.uk/web/index
OPERATING MANUAL
SFP SERIES
WARNING: Stay clear of loads supported by
hydraulics. A cylinder, when used as a load
lifting device, should never be used as a load
holding device. After the load has been
WARNING: use only rigid pieces to hold
loads. Carefully select steel or wood blocks
that are capable of supporting the load.
WARNING: Wear proper personal protective
gear when operating hydraulic equipment.
DANGER: To avoid personal injury keep
hands and feet away from cylinder and
workpiece during operation.
WARNING: Do not exceed equipment
ratings. Never attempt to lift a load weighing
more than the capacity of the cylinder.
CAUTION: Do not connect a jack or cylinder
to a pump with a higher pressure rating.
Never set the relief valve to a higher
pressure than the maximum rated pressure
of the pump. Higher settings may result in
WARNING: The system operating pressure
must not exceed the pressure rating of the
lowest rated component in the system.
