INTRODUCTION

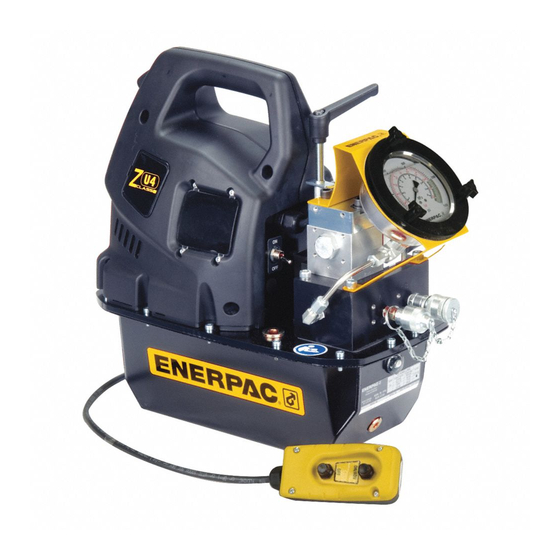

This document applies to all Enerpac ZU4 Classic Bolting Pumps
equipped with dual-solenoid valves. It includes instructions for
performing the following product upgrade procedures:
• Replacement of the existing VE Series dual-solenoid control
valve with the new single-solenoid VE Series control valve.
• Replacement of the existing front and middle brackets with
new brackets that are electrically compatible with the single-
solenoid control valve.
ELECTRICAL SERVICE KITS AND VALVES
To upgrade an existing pump to use the new single-solenoid
control valve, a new electrical service kit must first be installed.
Refer to Table 1 for service kit model numbers and descriptions.
TABLE 1 - ELECTRICAL SERVICE KITS
Pump Voltage
Service Kit
Model Number
115V
ZTERK-115
230V
ZTERK-230
NORTH AMERICA
230V CE
EUROPE AND ASIA
Each electrical service kit includes a new front electrical bracket,
middle electrical bracket and pendant. The pump's existing rear
electrical bracket is reused.
New single-solenoid control valves are available in various
voltages and configurations as described in Table 2.
TABLE 2 - CONTROL VALVE MODELS, SINGLE-SOLENOID
Pump
Valve Model
Voltage
115V
VE42Q-115
VE42QM-115
VE42E-115
VE42EM-115
230V
VE42Q-230
VE42QM-230
VE42E-230
VE42EM-230
Note: Control valves and electrical service kits must be ordered
separately.
08/22
Description
ZTW 115V Electrical
Service Kit
ZTW 230V Electrical
Service Kit
(Contact Enerpac)
Description
115V 10,000 PSI [700 bar]
115V 10,000 PSI [700 bar]
- Multiport
115V 11,600 PSI [800 bar]
115V 11,600 PSI [800 bar]
- Multiport
230V 10,000 PSI [700 bar]
230V 10,000 PSI [700 bar]
- Multiport
230V 11,600 PSI [800 bar]
230V 11,600 PSI [800 bar]
- Multiport

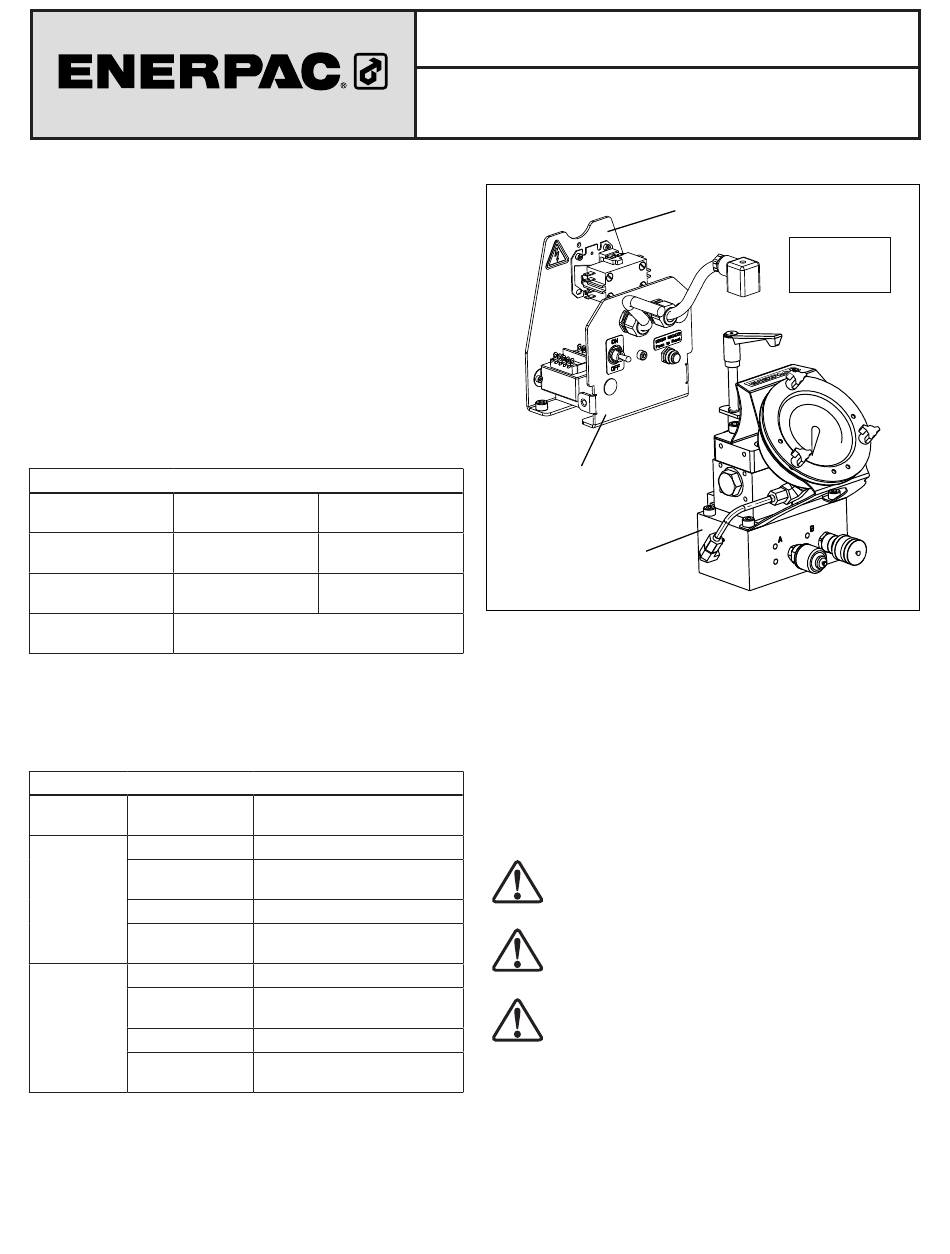

Service Information Sheet
ZU4 Classic Bolting Pump
Single-Solenoid Control Valve Upgrade
*
Front Bracket
and Pendant
(not shown)
VE Series Control
Valve Assembly
(single-solenoid)
Figure 1, New Components (typical)
230 VOLT CE MODELS - IMPORTANT NOTE
Consult your local Authorized Enerpac Service Center before
beginning electrical upgrade procedures on 230V pumps with
CE style electrical components. Power cord wire colors and
various other wiring details are different for 230V CE models.
A
complete
wiring
diagram
configurations and voltages - including 230V CE models - is
shown in Figure 14 of this document.
BEFORE YOU BEGIN
WARNING:
Disconnect
beginning the following procedure. Be sure hydraulic
pressure is zero (0) psi/bar.
CAUTION: Standard safety procedures are to be
followed during disassembly and reassembly to
minimize any possibility of injury.
CAUTION: Allow only trained and qualified personnel
to perform the electrical wiring procedures described in
this document.
IMPORTANT: Some components on the new front and middle
brackets are pre-wired at the factory, prior to shipment Be
careful not to disturb wiring when unpacking the shipment or
during installation procedures.
Note: The graphics contained in this document are provided for
reference and instructional purposes only. Various pump features
and/or configurations may be different than shown for your pump.
Optional features may be shown that are not present on your pump.
*
Middle Bracket
*
Included with
Electrical
Service Kit
covering
all
pump
power
from
pump
wiring
before
