Enerpac SFP202M Instruction Sheet

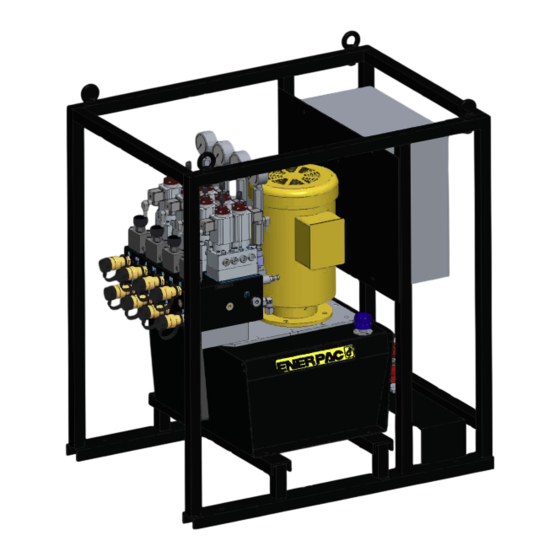

Hydraulic split flow pump
Hide thumbs
Also See for SFP202M:
- Operating manual (43 pages) ,
- Operation and maintenance manual (32 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Enerpac SFP202M
Summary of Contents for Enerpac SFP202M
- Page 1 HYDRAULIC SPLIT FLOW PUMP INSTRUCTION SHEET L14004711 REV. H 02/20 ENGLISH (EN)
-
Page 2: Table Of Contents
Ga voor de overige talen naar www.enerpac.com. For alle andre språk henviser vi til www.enerpac.com. Inne wersje językowe można znaleźć na stronie www.enerpac.com. Информацию на других языках вы найдете на сайте www.enerpac.com. 如需其他语言，请前往 www.enerpac.com. © 2019 Enerpac, All Rights Reserved. -
Page 3: Introduction
Shipping damage as damage to the equipment or other property. is not covered by the Enerpac warranty. The carrier is responsible for all repair and replacement costs resulting The Safety Alert Symbol appears throughout from damage in shipment. - Page 4 • Read and completely understand the safety fail catastrophically causing severe personal injury. precautions and instructions in this manual before • Enerpac does not recommend the use of the SFP operating the Split Flow Pump or preparing it Series pump with multiple telescopic cylinders for use.
-
Page 5: Specifications
For repair service, contact the Enerpac Authorized Service Centre in your area. • To help ensure proper operation and best performance, the use of Enerpac oil is strongly recommended. 3.0 SPECIFICATIONS The split flow pump utilizes a single electric motor to drive a hydraulic pump with multiple outlets. -
Page 6: Operation
Port A to the advance side of the cylinder. Port B to the retract side of the cylinder (only for Figure 3: Manual valves double acting cylinders, for single acting cylinder leave it disconnected). © 2019 Enerpac, All Rights Reserved. - Page 7 For this purpose the operator needs the following tools: STOP Flat screwdriver (1 unit). 13 mm Spanner (1 unit). CAUTION CONROLLER CONTAINS MORE THAN ONE SOURCE OF POTENTIAL. DISCONNECT ALL SOURCES BEFORE SERVICING Figure 5: Manual starter © 2019 Enerpac, All Rights Reserved.
-
Page 8: Maintenance
6.2 Change Oil and Clean Reservoir advance button (Figure 4, No 2 or 3). Enerpac HF oil is a crisp blue color. Frequently check oil The solenoid valve will direct flow to tank relieving the condition for contamination by comparing pump oil to pressurized line. -
Page 9: Troubleshooting Guide
Check that all couplers are fully tightened. Air trapped in system. Remove air. Cylinder plunger binding. Check for damage to cylinder. Have cylinder serviced by an authorized Enerpac service center. Cylinder advances, but Leaking oil connection. Check that all connections are tightened. -
Page 10: Technical Data
SFP404 SFP421 SFP613 N.A. N.A. N.A. SFP813 N.A. N.A. N.A. SFP228 SFP409 SFP604 N.A. N.A. N.A. N.A. SFP242 SFP414 Table 6: Powerpack electric diagrams WORKING CYLINDERS ELECTRIC DIAGRAMS Table 7: Pendant control electric diagrams. © 2019 Enerpac, All Rights Reserved. - Page 11 NOTES ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ © 2019 Enerpac, All Rights Reserved.
- Page 12 www.enerpac.com...
